Cooper&Hunter Mia NY • R410A • Inverter
Cooper&Hunter 12,000 BTU Mia Single Zone Wall Mount Minisplit Heat Pump System R410A 115V
SKU: CH-NY12MIA-115VI + CH-NY12MIA-115VO
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS
Overview
The Cooper&Hunter Mia NY Series is an entry-level, wall-mounted ductless mini split that delivers a more affordable path to efficient cooling and heating. This single-zone bundle pairs the CH-NY12MIA-115VI indoor unit with the CH-NY12MIA-115VO outdoor condenser for operation on 115V power.
The Mia NY lineup can reach up to 21.7 SEER2 across the series; this 12K configuration is rated at 20.8 SEER2. It’s a one-to-one wall mount system built for everyday comfort with modern features and optional WiFi compatibility (optional kit).
Highlights
12,000 BTU class Single Zone system 115V, 1Ph, 60Hz R410A refrigerant SEER2: 20.8 EER2: 10.3 HSPF2-5: 6.6 GoldFin coating Quiet / Sleep mode WiFi compatible (optional) AHRI Ref: 210799571
- Affordable comfort: entry-level wall mount system for cooling and heating.
- 115V convenience: designed for standard 115V applications.
- Efficient operation: rated 20.8 SEER2 with inverter-driven performance.
- Durability features: outdoor unit includes anti-corrosive GoldFin coating.
- Optional connectivity: WiFi compatibility supported with an optional kit.
IndoorCH-NY12MIA-115VI
OutdoorCH-NY12MIA-115VO
Lines1/4" liquid · 1/2" gas
Max run82.02 ft
What’s Included
- Indoor unit: CH-NY12MIA-115VI (Mia NY wall mount)
- Outdoor unit: CH-NY12MIA-115VO (Single-Zone)
- Remote control (included)
- Manufacturer documentation (see Documents & Downloads)
- Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
Indoor Specs
| Spec | Details |
|---|---|
| Model | CH-NY12MIA-115VI |
| System type | Single Zone |
| Refrigerant type | R410A |
| BTU rated | 12,000 |
| Power source | 115V, 1Ph, 60Hz |
| Voltage range | 103.5–126.5 V |
| SEER2 | 20.8 |
| EER2 | 10.3 |
| Refrigerant piping (liq/gas) | 1/4" / 1/2" |
| Minimum circuit ampacity | 3 |
| Max fuse | 15 |
| Indoor noise level (H/M/L) | 41.5 / 30.5 / 26 dB(A) |
| Indoor air flow | 341.18 / 308.82 / 205.88 / 176.47 CFM |
| Dehumidification | 3.99 pnt/day |
| Unit dimensions (W×H×D) | 31.57 × 7.44 × 11.69 in |
| Net / Gross weight | 19.84 / 24.25 lb |
| Packing dimensions (W×D×H) | 34.45 × 11.22 × 14.96 in |
| Drain pipe diameter | 5/8" |
| Operating range (Cooling) | 62–90°F |
| Operating range (Heating) | 32–86°F |
| Controller | RG10K-exclusive remote |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-NY12MIA-115VO |
| System type | Single Zone |
| Refrigerant type | R410A |
| BTU rated | 12,000 |
| Power source | 115V, 1Ph, 60Hz |
| Voltage range | 103.5–126.5 V |
| Refrigerant piping (liq/gas) | 1/4" / 1/2" |
| Max pipe length | 82.02 ft |
| Max height difference (IDU↔ODU) | 32.81 ft |
| Cooling capacity (Min/Max) | 12,000 (4,300–12,600) BTU/h |
| Heating capacity (Min/Max) | 12,000 (4,000–12,500) BTU/h |
| SEER2 | 20.8 |
| EER2 | 10.3 |
| HSPF2-5 | 6.6 |
| HSPF2-4 | 8.7 |
| COP | 3.13 |
| Dehumidification | 3.99 pnt/day |
| Outdoor noise level | 55.5 dB(A) |
| Outdoor air flow | 1,235.29 CFM |
| Minimum circuit ampacity | 18.5 |
| Max fuse | 25 |
| Ambient temp (Heating) | 5–86°F |
| Ambient temp (Cooling) | 5–122°F |

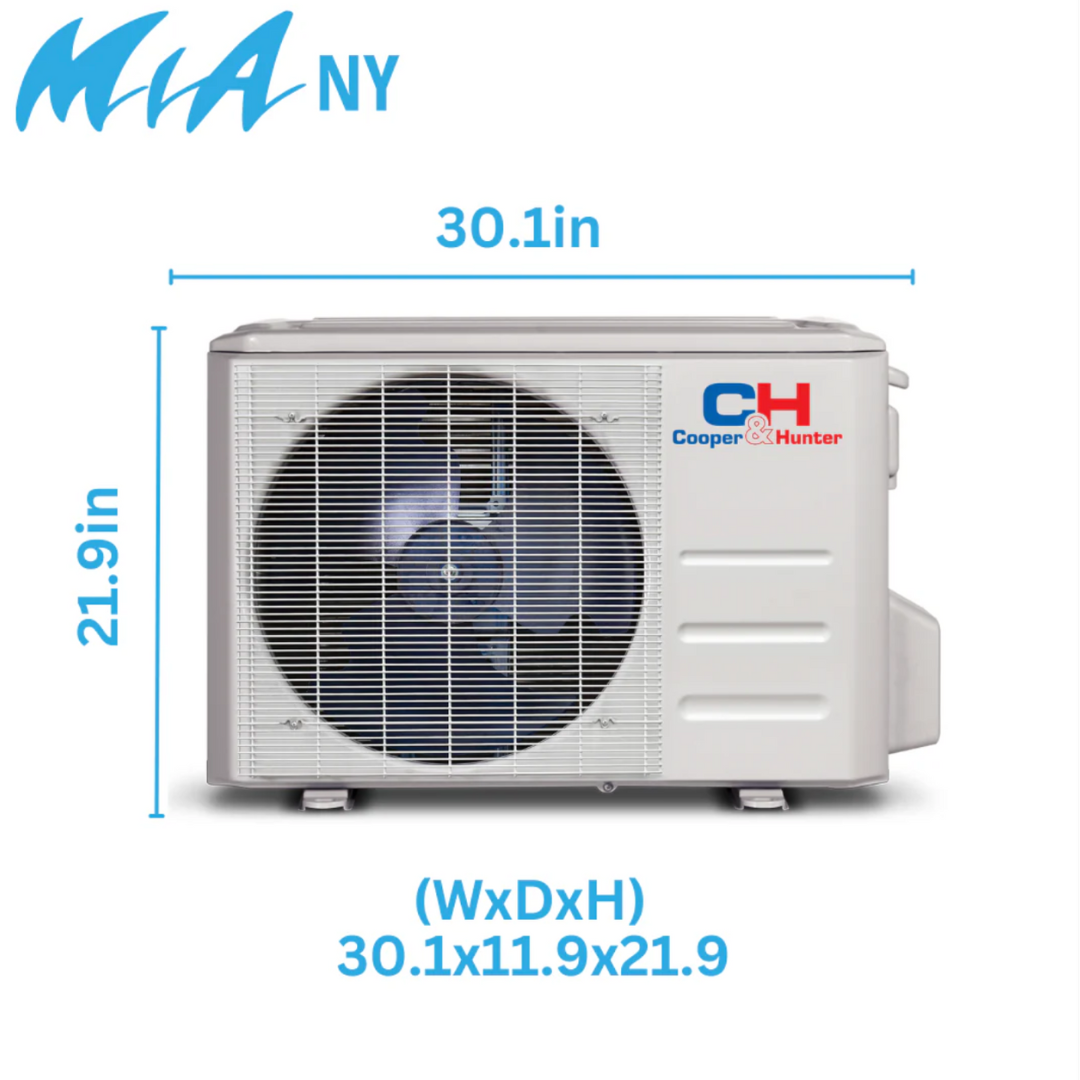

| Unit dimensions (W×H×D) | 30.12 × 11.93 × 21.85 in |
| Net / Gross weight | 62.17 / 67.68 lb |
| Packing dimensions (W×D×H) | 34.92 × 13.27 × 24.02 in |
| Refrigerant precharge | 25 |
| Additional charge (1/4" liquid) | 0.16 |
Documents & Downloads
- Submittal (PDF) — CH-NY12MIA-115VI + CH-NY12MIA-115VO
- Product Leaflet (PDF) — Mia NY
- Accessories Leaflet (PDF) — 2023
- Installation Manual (PDF)
- Remote Manual (PDF)
- User Manual (PDF)
- AHRI Directory Listing — AHRI #210799571
Videos
Featured video
Mini-split installation videos
- How to Install Mini Split Cooper&Hunter
- Cooper&Hunter Outdoor Wall Mounting Bracket
- Full Installation of Mini Split Ductless Unit, Step by Step!
How To & Instructional Videos
Products overview
- HVAC Installation Kit: 99.9% Copper Line Sets (Cooper&Hunter)
- Mini Split Indoor Unit Types Explained
Mini-Splits
- Where To Mount a Mini Split Indoor Wall Hung Unit
- How To Wall Mount a Mini Split Outdoor Condenser Unit
- Are Mini Split Air Conditioners Worth It? - Top 5 Pros & Cons
- Does a Wall Mounted MINISPLIT Need a CONDENSATE TRAP? Ductless vs Ducted Air Handlers!
- MINI SPLIT Parts Explained! Understand What They Do!
- Checking the Refrigerant Charge on a Running R-410A Inverter MINI SPLIT Unit
- Mini Split Indoor Unit Types Explained! 5 Types- Applications, Connection Points, Mounting!
- MIA Series
Important
Professional installation is recommended. Confirm electrical requirements, line sizes, maximum line length, and ambient operating limits before installation. Installation kits are not included unless selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
FAQs
Is this a single-zone system?
Yes—this bundle is configured as a single-zone system: CH-NY12MIA-115VI + CH-NY12MIA-115VO.
What line sizes does this system use?
1/4" liquid and 1/2" gas.
What is the max line length and height difference?
Maximum line length is 82.02 ft and maximum height difference is 32.81 ft.
What are the outdoor heating and cooling ambient ranges?
Cooling: 5–122°F. Heating: 5–86°F.
Are installation kits included?
No. Installation kits are only included if selected on the Variant Options (No installation, 16ft, 25ft, 50ft).
