Mini Floor Console + Hyper Outdoor • 12K • R454B • 208–230V
Cooper&Hunter 12,000 BTU Hyper Single Zone Floor Console Minisplit Heat Pump System R454B 230V
Overview
This system pairs the CH-RSH12MMC Mini Floor Console indoor unit with the CH-RHP12-230VO Hyper single-zone outdoor unit. The indoor console is designed for versatile comfort and strong air distribution, with humidity and refrigerant sensors plus smart control support. The Hyper outdoor unit adds cold-climate performance with heating operation listed down to -22°F.
Highlights
R454B Refrigerant Hyper Heating to -22°F Humidity + Refrigerant Sensors Smart Kit + Remote + Wall Thermostat Up to 25.0 SEER2 (Indoor) 1/4" / 3/8" Line Set
- Floor console form factor for flexible placement and comfort delivery.
- Enhanced airflow outlets designed for more even temperature distribution.
- Inverter-driven outdoor operation for stable temperatures and reduced cycling.
System Search
Line Set Size
1/4" Liquid • 3/8" Gas
Max Line Length
82 ft
Voltage
208–230V (187–253V)
Outdoor Rated BTU
12,000
Outdoor AHRI
207742320
What’s Included
- Indoor mini floor console: CH-RSH12MMC
- Outdoor condenser (Hyper): CH-RHP12-230VO
- Included remote control + wall thermostat support
- Built-in smart kit capability for app control (setup required)
Video title (not linked): Multi-Zone System with R454B
Indoor Specs (CH-RSH12MMC)
| Spec | Value |
|---|---|
| Refrigerant Type | R454B |
| BTU Rated | 12K |
| SEER2 / EER2 | 25.0 / 12.5 |
| Power | 208–230V • 1Ph • 60Hz (187–253V) |
| Dehumidification | 3.13 pints/day |
| Indoor Airflow | 441.4 / 376.7 / 323.7 / 188.4 |
| Noise (H/M/L) | 40.5 / 37 / 26.5 |
| Dimensions (W×D×H) | 31.26 × 7.87 × 24.45 in |
| Net / Gross Weight | 32.85 / 41.89 |
| Line Set | 1/4" Liquid • 3/8" Gas |
| Drain Pipe Diameter | 5/8" |
| Operating Range | Cooling: 60–90°F • Heating: 32–86°F |
| MCA / Max Fuse | 3A / 15A |
| Packing (W×D×H) | 34.06 × 11.02 × 28.31 in |
| Controller | Remote controller |
Outdoor Specs (CH-RHP12-230VO)
| Spec | Value |
|---|---|
| Refrigerant Type | R454B |
| Rated BTU | 12,000 |
| Cooling Capacity (Min/Max) | 12,000 (3,800–14,600) BTU/h |
| Heating Capacity (Min/Max) | 12,000 (3,800–16,000) BTU/h |
| HSPF2 (Region V / IV) | 8 / 10.5 |
| COP | 3.76 |
| Ambient Temperature | Cooling: -22–122°F • Heating: -22–75°F |
| Max Pipe Length / Height Difference | 82 ft / 49.2 ft |
| Outdoor Air Flow | 1,470.6 |
| Noise | 56 |

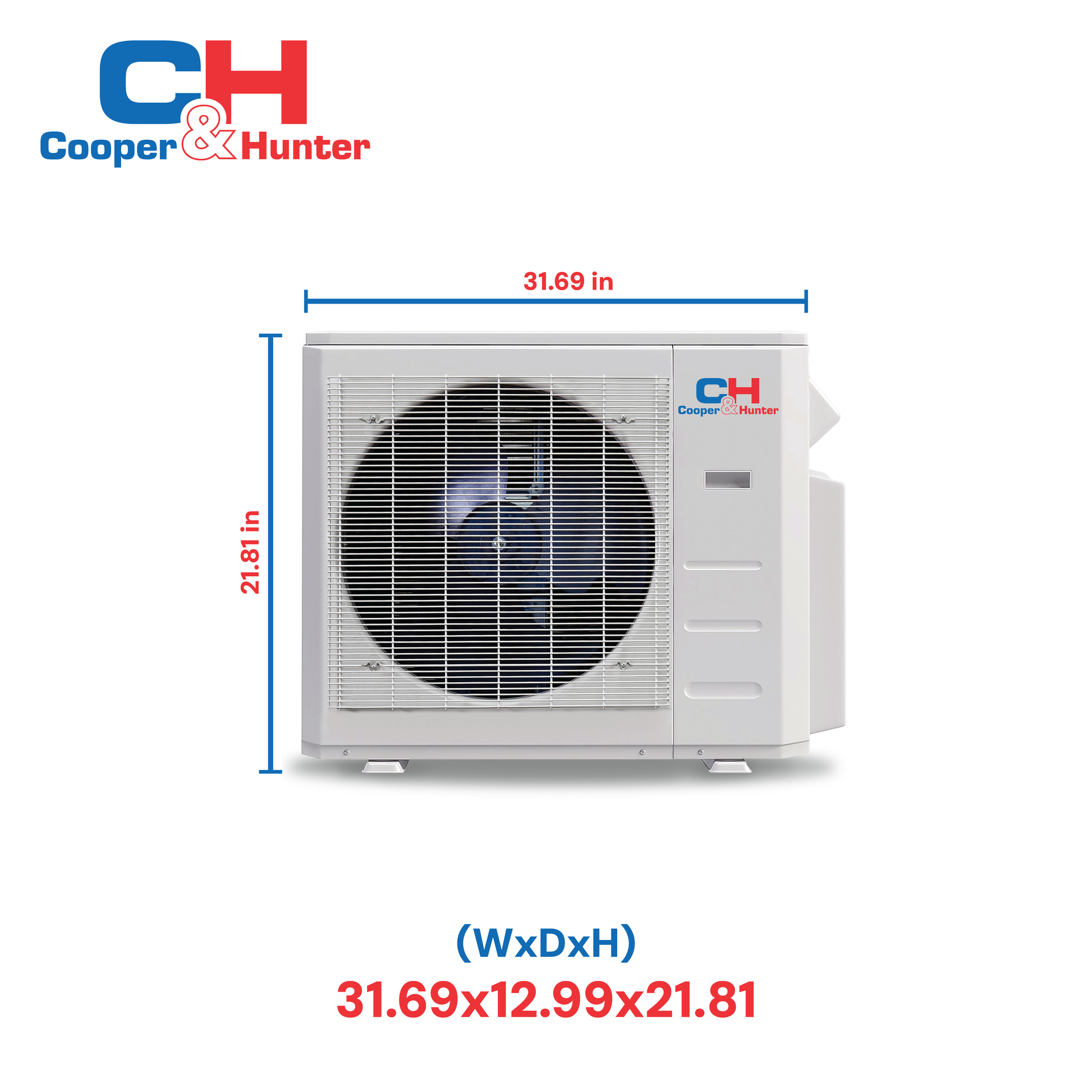

| Dimensions (W×D×H) | 31.69 × 12.99 × 21.81 in |
| Net / Gross Weight | 72.75 / 78.70 |
| MCA / Max Fuse | 15A / 15A |
| Additional Charge (1/4" liquid) | 0.16 |
| AHRI | 207742320 |
Documents & Downloads
- System Submittal (This Combination): CH-RHP12-230VO + CH-RSH12MMC
- Indoor Manuals
- Owner’s Manual — CH-RSH09-16MMC (R454B)
- Installation Manual — CH-RSH09-16MMC (R454B)
- Outdoor Manuals
- Installation Manual — R454B Outdoor Units
- SlimDuct Leaflet (R454B)
- Outdoor Submittals (CH-RHP12-230VO)
- CH-RHP12-230VO + CH-RH12MASTWM-230VI
- CH-RHP12-230VO + CH-RS06-12MDT--MS
- CH-RHP09-230VO + CH-RH09MCT
- CH-RHP09-230VO + CH-RSH09MCT
Important
- Use the specified line set size: 1/4" liquid and 3/8" suction (gas).
- Confirm circuit sizing and breaker/fuse selection per MCA and local code.
- Support: hvacsupplies.com/pages/contact • (800) 543-8933
FAQs
What line set size is required?
1/4" liquid and 3/8" suction (gas).
How cold can this Hyper system heat?
The outdoor unit’s heating ambient range is listed to -22°F.
What control options are supported?
Remote control, wall thermostat support, and smart kit/app capability (setup required).
