Cooper&Hunter Hyper Heat Multi-Zone Outdoor • R454B • Up to 3 Zones
Cooper&Hunter Hyper Heat Multi-Zone Outdoor — 19,000 BTU, R454B — CH-RVHP19M-230VO
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 1-800-543-8933 FOR ANY QUESTIONS
Overview
Cooper&Hunter’s 19K BTU Hyper Heat Multi-Zone outdoor unit is built for efficient, personalized comfort in residential spaces. It supports up to three zones for independent room-by-room control and uses inverter technology to precisely adjust compressor output to match real-time demand. The Hyper Heat design delivers dependable heating in extreme weather, with heating operation rated down to −22 °F. With up to 25 SEER2 efficiency and R454B refrigerant (lower GWP vs. many conventional options), it’s a strong fit for high-performance, eco-conscious multi-zone installs.
Highlights
Up to 3 zones SEER2 25 · EER2 15 HSPF 10.4 (Region IV) · 8.5 (Region V) COP 4.0 @ 47 °F Hyper Heat to −22 °F R454B 208–230V 1Ph Max total piping 196.8 ft
- Cold-climate heating: reliable heating operation down to −22 °F for harsh winter conditions.
- High efficiency: up to 25 SEER2 for excellent seasonal energy savings.
- Inverter performance: dynamic modulation for stable comfort and lower operating cost.
- Eco-forward refrigerant: R454B supports a lower environmental footprint.
- Multi-zone control: tailor comfort for up to three rooms/areas with compatible indoor units.
ModelCH-RVHP19M-230VO
ZonesUp to 3
Outdoor Sound61.5 dB(A)
Lines3× 1/4″ liquid · 3× 3/8″ gas
What's Included
- Outdoor unit CH-RVHP19M-230VO
- Owner / installation documentation
Pair only with compatible Cooper&Hunter multi-zone indoor units. Confirm zone combinations, piping, and length limits before installation.
Indoor Specs
| Spec | Details |
|---|---|
| System type | Hyper Heat multi-zone outdoor unit |
| Zones supported | Up to 3 independent zones (depends on indoor unit selection) |
| Refrigerant piping | 3 circuits: 3× 1/4″ liquid · 3× 3/8″ gas |
| Max total pipe length | 196.8 ft |
| Max length per indoor unit | 98.4 ft |
| Max height difference (IDU↔ODU) | 49.2 ft |
| Max height difference (between indoor units) | 33 ft |
| Combination guidance | Use the provided Multi-Zone Combination PDF to confirm valid indoor mixes |
Indoor-unit capacities, controls, and features depend on the specific indoor models selected for each zone.
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-RVHP19M-230VO |
| Power | 208/230 V, 1-Phase, 60 Hz |
| Voltage range | 187–253 V |
| Cooling capacity (range) | 5,400–28,000 BTU/h |
| Cooling current (rated) | 5.6 A |
| SEER2 / EER2 | 25 / 15 |
| Heating capacity @ 47 °F (range) | 5,700–27,000 BTU/h |
| Heating current @ 47 °F (rated) | 6.5 A |
| COP @ 47 °F | 4.0 W/W |
| HSPF (Region IV / V) | 10.4 / 8.5 |
| Heating capacity @ 5 °F (rated) | 19,000 BTU/h |
| MCA / Max fuse | 17.5 A / 20 A |
| Outdoor airflow (max) | 2,130.7 CFM |
| Outdoor sound | 61.5 dB(A) |

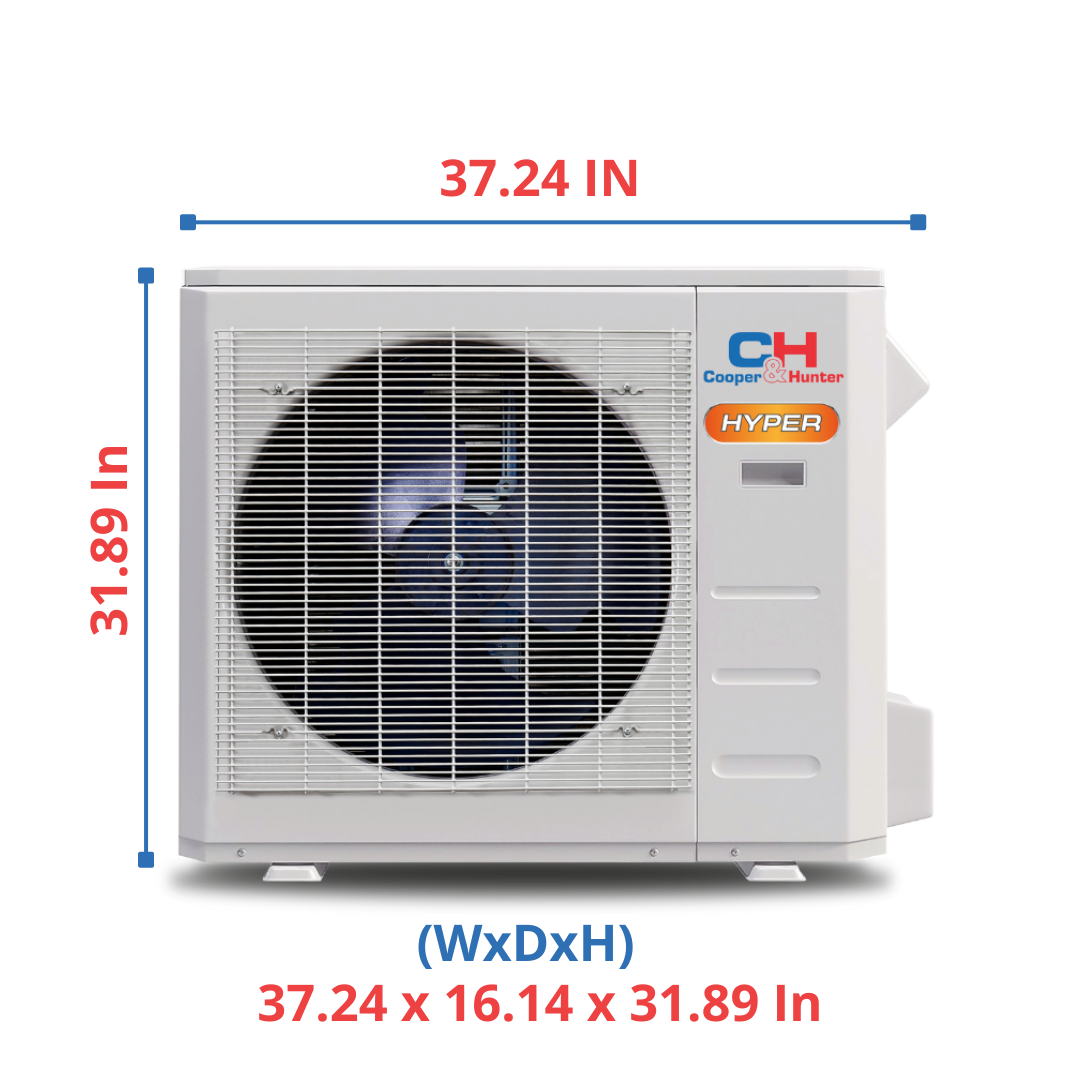

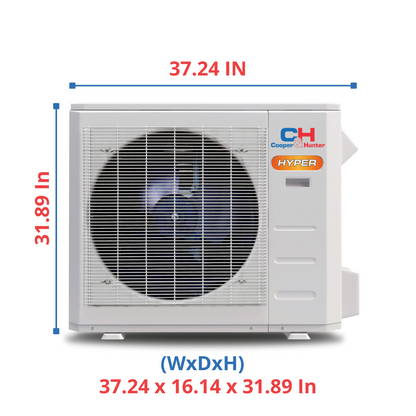

| Unit size (W×D×H) | 37.24 × 16.14 × 31.89 in |
| Packing size (W×D×H) | 42.91 × 19.68 × 34.84 in |
| Net / Gross weight | 137.35 / 148.15 lb |
| Refrigerant / Charge | R454B / 78.31 oz |
| Factory precharge | 75 ft |
| Additional refrigerant charge | 0.16 oz/ft |
| Design pressure | 550 / 340 PSIG |
| Ambient range (cool / heat) | −22–122 °F / −22–75 °F |
| Line sizes | Liquid: 3× 1/4″ · Gas: 3× 3/8″ |
| Max piping (total / per indoor) | 196.8 ft / 98.4 ft |
| Max height difference | IDU↔ODU: 49.2 ft · Between IDUs: 33 ft |
Certifications: AHRI ✓ · Energy Star for Cold Climate ✓ · NEEP ✓ · ETL ✓.
Documents & Downloads
- CH-RVHP19M-230VO Submittal (PDF)
- RVHP Multi-Zone Units Installation Manual (PDF)
- Multi-Zone Combination — HYPER (PDF)
AHRI certification numbers (reference): Ducted 210799629 · Non-Ducted 210799628 · Mixed 210799630.
Important
Install by a licensed HVAC professional. Confirm zone combinations, electrical requirements (187–253 V), MCA/max-fuse, line sizes, total/branch piping limits, and ambient operating ranges (down to −22 °F) before commissioning.
FAQs
How many zones can this support?
Up to three independent zones with compatible Cooper&Hunter multi-zone indoor units.
How cold can it heat in Hyper Heat mode?
Heating operation is rated down to −22 °F.
What line sizes are required?
Three circuits total: 3× 1/4″ liquid and 3× 3/8″ gas connections.
What are the power requirements?
208/230 V, single-phase, 60 Hz. Voltage range 187–253 V. MCA 17.5 A. Max fuse 20 A.
What are the piping limits?
Up to 196.8 ft total piping, and up to 98.4 ft for a single indoor unit run, within system design limits.
What refrigerant does it use?
R454B (factory charge: 78.31 oz; precharge: 75 ft).
Is it certified for cold climate efficiency programs?
It lists Energy Star for Cold Climate, NEEP, ETL, and AHRI certifications.
