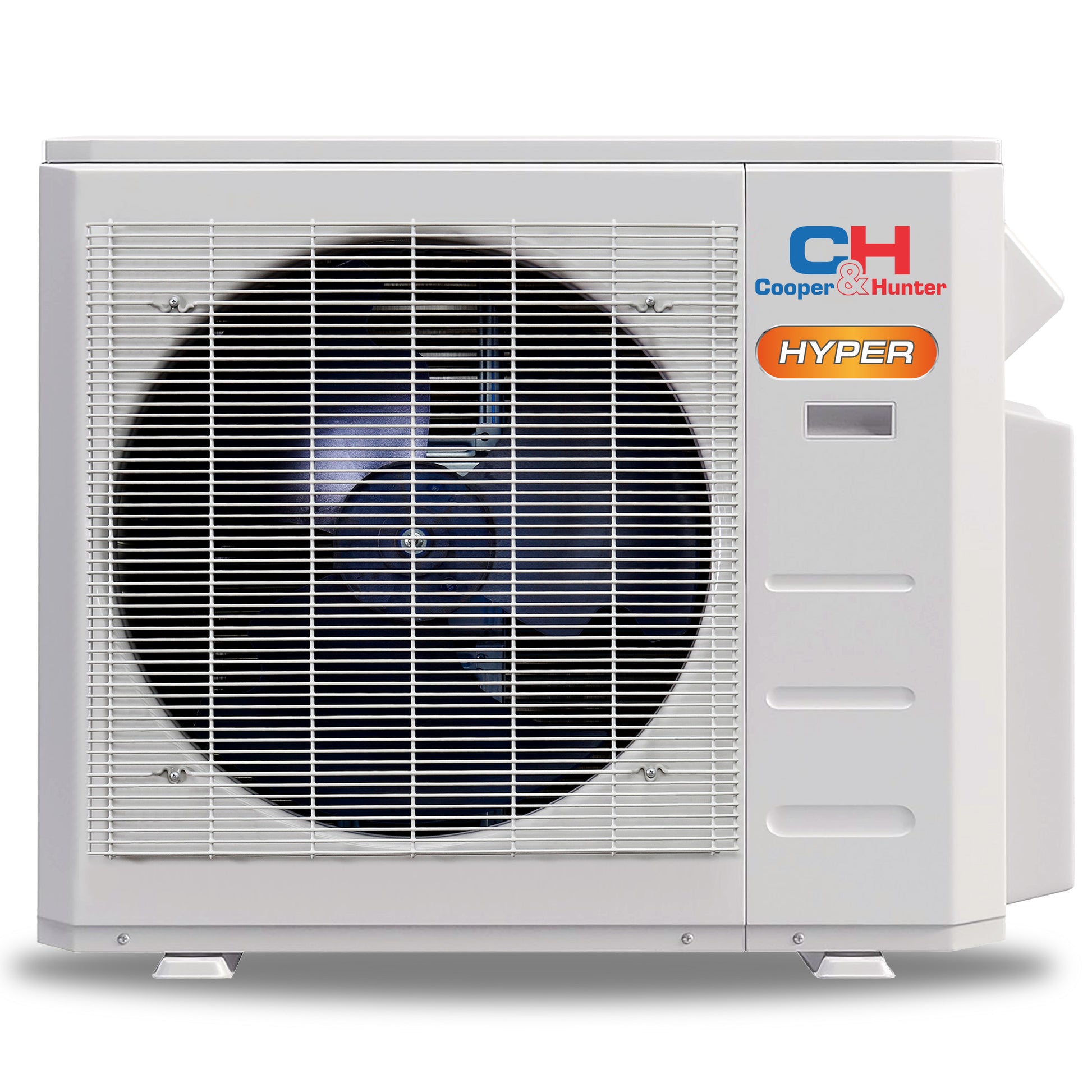

Cooper&Hunter Hyper Multi-Zone Outdoor Condenser — 19,000 BTU (1.58 Ton) • CH-HPR19M-230VO
Hyper multi-zone condenser with extended low-ambient heating down to -22°F and up to 22 SEER2 (system dependent).
Overview
The CH-HPR19M-230VO is a Hyper multi-zone outdoor condenser designed for R410A systems on 208–230V power. It is rated at 19,000 BTU (1.58 ton) and supports total piping up to 131 ft with factory refrigerant precharge up to 50 ft. Hyper low-ambient performance supports heating operation down to -22°F (ambient), while cooling operation ranges from 5–122°F.
Highlights
- Cold-climate capable: Heating ambient range down to -22°F.
- Efficiency: Rated SEER2 22 and EER2 12.5 (system dependent).
- Capacity modulation: Cooling range 5,500–25,000 BTU/h; heating range 8,100–29,600 BTU/h.
- Installation parameters: Max total piping 131 ft and height difference up to 49.21 ft.
- Branch connections: Listed as 2× 1/4" liquid and 2× 3/8" gas ports.
What's Included
- Outdoor condenser unit: CH-HPR19M-230VO
Outdoor Specs
| Spec | Details |
|---|---|
| Model | CH-HPR19M-230VO |
| Refrigerant Type | R410A |
| System Type | Multi-zone unit |
| BTU Rated | 19,000 |
| Cooling Capacity (Min/Max) | 19,000 (5,500–25,000) BTU/h |
| Heating Capacity (Min/Max) | 20,000 (8,100–29,600) BTU/h |
| SEER2 / EER2 | 22 / 12.5 |
| HSPF2-4 / HSPF2-5 | 9.8 / 7.7 |
| COP | 3.4 |
| Power Source | 208–230V, 1Ph, 60Hz |
| Voltage Range | 187–253 V |
| Minimum Circuit Ampacity (MCA) | 20 A |
| Max Fuse | 25 A |
| Max Pipe Length | 131 ft |
| Max Height Difference (Indoor↔Outdoor) | 49.21 ft |
| Refrigerant Piping (Liquid / Gas) | 2× 1/4" (liq) / 2× 3/8" (gas) |
| Refrigerant Precharge | Up to 50 ft |
| Outdoor Noise | 61 dB(A) |
| Outdoor Air Flow | 2,129.41 |
| Ambient Range (Cooling) | 5–122 °F |
| Ambient Range (Heating) | -22–75 °F |
| Additional Charge (3/8" liquid) | 0.32 |
| Additional Charge (1/4" liquid) | 0.16 |
| Unit Dimensions (W×H×D) | 37.24 × 16.14 × 31.89 in |
| Unit Net / Gross Weight | 138.23 / 149.03 lb |
| Packing Dimensions (W×D×H) | 42.91 × 19.69 × 34.84 |
| Dehumidification | 3.57 pints/day |
Videos
- Can You Use a Mini Split in EXTREME COLD? Heat Pump vs. Propane Cost Comparison with Thermal Camera
- Where To Mount a Mini Split Indoor Wall Hung Unit
- How To Wall Mount a Mini Split Outdoor Condenser Unit
- Are Mini Split Air Conditioners Worth It? - Top 5 Pros & Cons
- Does a Wall Mounted MINISPLIT Need a CONDENSATE TRAP? Ductless vs Ducted Air Handlers!
- MINI SPLIT Parts Explained! Understand What They Do!
- Mini Split Failure from Electrical Surges, High and Low Voltage! HOW TO SOLVE IT!
- Full Installation of an Inverter Minisplit Heat Pump with Indoor Ceiling Cassette
- Checking the Refrigerant Charge on a Running R-410A Inverter MINI SPLIT Unit
- Mini Split Indoor Unit Types Explained! 5 Types- Applications, Connection Points, Mounting!
Documents & Downloads
Certifications
- AHRI Ducted — 210799629 (AHRI Directory)
- AHRI Non-Ducted — 210799628 (AHRI Directory)
- AHRI Mixed — 210799630 (AHRI Directory)
Important
Install with a licensed HVAC professional. This is a multi-zone outdoor condenser intended to be matched with compatible indoor units. Confirm match-ups, total connected indoor capacity, and piping design before ordering. Observe maximum total piping (131 ft), height limits (49.21 ft), and required electrical protection (MCA 20A, max fuse 25A). Refrigerant is R410A with factory precharge up to 50 ft; additional charge may be required beyond that length.
FAQs
Is this a single-zone or multi-zone outdoor unit?
How many indoor units can it connect to?
How cold can it heat in?
How much piping is supported?
Does it come precharged with refrigerant?
