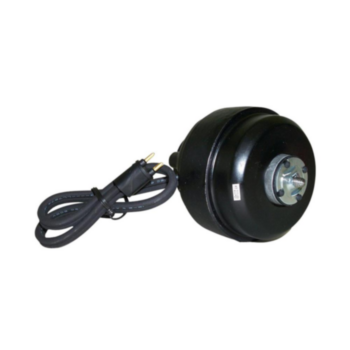

• Condenser Motor, 9 W, 115 V
1 1

Condenser Motor, 9 W, 115 V

SKU: EE-5611

System highlights
AC Type
Parts
Looking For
Condenser Fan Motors

Price

$76.99
Shipping calculated at checkout.

All brand names and model numbers are used for compatibility reference only. HVACSupplies.com is not affiliated with, endorsed by, or authorized by select manufacturers.

Compatibility is based on available technical data and is not guaranteed. HVAC equipment specifications may change. Customers are responsible for verifying compatibility with a licensed HVAC technician or the manufacturer prior to purchase, including confirmation with the specific model and serial number.

All part sales are final.
View full details
HVAC Replacement Part | Condenser Motors | SKU EE-5611
Condenser Motor, 9 W, 115 V

Product Description

The Condenser Motor, 9 W, 115 V is an HVAC replacement motor. It is used for condenser motors service and replacement work. Key details include Condenser Motor, Frame 51, 9 W, 115 V, 1 Ph, 60 Hz, 0.52 A, Bearing Unit, Direct Drive, Clockwise, TEAO, 1 Speed, 1550 rpm, 0.25 in x 3.5 in Shaft, 3.74 in Wd x 3.94 in Ht x 4.13 in Dp.

Order by part number EE-5611 and compare it with the label on your existing component before purchasing.

Technical Specifications - EE-5611

Part Number EE-5611
Full SKU MHVC-RES-PMF-EE-5611
Part Type Condenser Motors
Category Motors and Fans
Catalog Detail Condenser Motor, Frame 51, 9 W, 115 V, 1 Ph, 60 Hz, 0.52 A, Bearing Unit, Direct Drive, Clockwise, TEAO, 1 Speed, 1550 rpm, 0.25 in x 3.5 in Shaft, 3.74 in Wd x 3.94 in Ht x 4.13 in Dp
Unit Height 3.94 in
Unit Width 3.75 in
Unit Depth 4.13 in
Power Phase 1 Ph
Power Voltage 115 V
Unit Weight 3 lb
