PROPARTS | Condenser Motors | SKU PPV3731

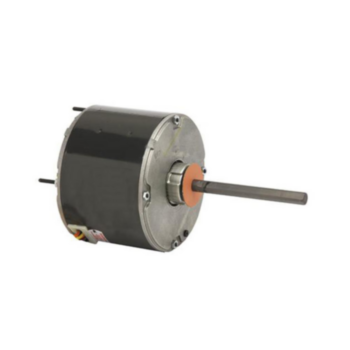

Condenser Motor, 3/4 Hp, 1 Ph
Product Description
The PROPARTS Condenser Motor, 3/4 Hp, 1 Ph is an HVAC replacement motor. It is used for condenser motors service and replacement work. Key details include Condenser Motor, PSC, Frame 48, 3/4 Hp, 208/230 V, 1 Ph, 60 Hz, 6P, Class B, 4.7 A, Ball Bearing, Direct Drive, Reversible, TEAO, Stud Mount, 1075 rpm, 0.5 in Shaft, 6.85 in Wd x 12.7 in Lg x 7.72 in Ht x 14.8 in Dp.
Order by part number PPV3731 and compare it with the label on your existing component before purchasing.
Technical Specifications - PPV3731
| Part Number | PPV3731 |
|---|---|
| Full SKU | MHVC-RES-PMF-PPV3731 |
| Brand | PROPARTS |
| Part Type | Condenser Motors |
| Category | Motors and Fans |
| Catalog Detail | Condenser Motor, PSC, Frame 48, 3/4 Hp, 208/230 V, 1 Ph, 60 Hz, 6P, Class B, 4.7 A, Ball Bearing, Direct Drive, Reversible, TEAO, Stud Mount, 1075 rpm, 0.5 in Shaft, 6.85 in Wd x 12.7 in Lg x 7.72 in Ht x 14.8 in Dp |
| Country of Origin | China |
| Unit Height | 7.72 in |
| Unit Width | 6.84375 in |
| Unit Depth | 14.8 in |
| Power Phase | 1 Ph |
| Power Voltage | 208/230 V |
| Motor Speed Type | PSC |
| Unit Weight | 16.85 lb |
