• Condenser Motor, 1 Hp, 208/230 V
1 1

Motili

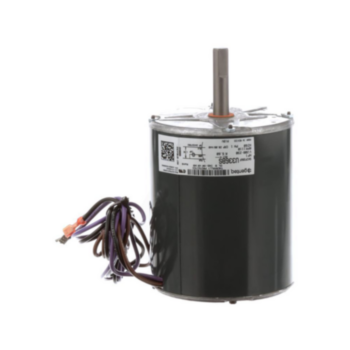

Condenser Motor, 1 Hp, 208/230 V

SKU: 0131M00040S

System highlights
AC Type
Parts
Looking For
Condenser Fan Motors

Price

$455.99
Shipping calculated at checkout.

All brand names and model numbers are used for compatibility reference only. HVACSupplies.com is not affiliated with, endorsed by, or authorized by select manufacturers.

Compatibility is based on available technical data and is not guaranteed. HVAC equipment specifications may change. Customers are responsible for verifying compatibility with a licensed HVAC technician or the manufacturer prior to purchase, including confirmation with the specific model and serial number.

All part sales are final.
View full details
HVAC Replacement Part | Condenser Motors | SKU 0131M00040S
Condenser Motor, 1 Hp, 208/230 V

Product Description

The Condenser Motor, 1 Hp, 208/230 V is an HVAC replacement motor. It is used for condenser motors service and replacement work. Key details include Condenser Motor, Frame 48, 1 Hp, 208/230 V, 1 Ph, 60 Hz, Class B, 5.6 A, Ball Bearing, Direct Drive, Clockwise, OAO, Ring Mount, 1 Speed, 1110 rpm, 0.5 in x 1 in Shaft, 5.6 in Dia x 11.6 in Wd x 11.6 in Ht x 9.3 in Dp.

Order by part number 0131M00040S and compare it with the label on your existing component before purchasing.

Technical Specifications - 0131M00040S

Part Number 0131M00040S
Full SKU MHVC-RES-PMF-0131M00040S
Part Type Condenser Motors
Category Motors and Fans
Catalog Detail Condenser Motor, Frame 48, 1 Hp, 208/230 V, 1 Ph, 60 Hz, Class B, 5.6 A, Ball Bearing, Direct Drive, Clockwise, OAO, Ring Mount, 1 Speed, 1110 rpm, 0.5 in x 1 in Shaft, 5.6 in Dia x 11.6 in Wd x 11.6 in Ht x 9.3 in Dp
Country of Origin Mexico
Unit Height 11.6 in
Unit Width 11.59375 in
Unit Depth 9.3 in
Power Phase 1 Ph
Power Voltage 208/230 V
Unit Weight 23 lb
