HVAC Replacement Part | Misc Motors | SKU 10874

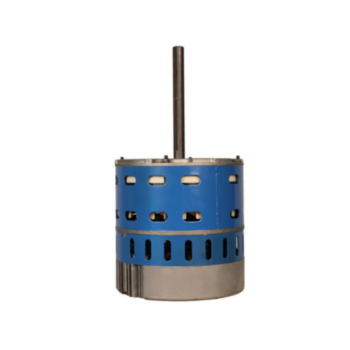

Condenser Motor, 1/8-1/3 Hp
Product Description
The Condenser Motor, 1/8-1/3 Hp is an HVAC replacement motor. It is used for misc motors service and replacement work. Key details include Condenser Motor, Frame 48, 1/8-1/3 Hp, 230/208 V, 1 Ph, Class B, 2.4 A, Ball Bearing, Direct Drive, Reversible, TEAO, Ring Mount, 2 Speed, 1075 rpm, 0.5 in x 6.5 in Shaft, 5.6 in Dia x 6.9 in Wd x 8.6 in Ht x 14.9 in Dp.
Order by part number 10874 and compare it with the label on your existing component before purchasing.
Technical Specifications - 10874
| Part Number | 10874 |
|---|---|
| Full SKU | MHVC-RES-PMF-10874 |
| Part Type | Misc Motors |
| Category | Motors and Fans |
| Catalog Detail | Condenser Motor, Frame 48, 1/8-1/3 Hp, 230/208 V, 1 Ph, Class B, 2.4 A, Ball Bearing, Direct Drive, Reversible, TEAO, Ring Mount, 2 Speed, 1075 rpm, 0.5 in x 6.5 in Shaft, 5.6 in Dia x 6.9 in Wd x 8.6 in Ht x 14.9 in Dp |
| Country of Origin | USA |
| Unit Height | 8.6 in |
| Unit Width | 6.90625 in |
| Unit Depth | 14.9 in |
| Power Phase | 1 Ph |
| Power Voltage | 230/208 V |
| Unit Weight | 9.8 lb |
| Compatibility | Goodman Equipment |
| Horse power | 1/3 |
