PROPARTS | Condenser Motors | SKU PPV3403

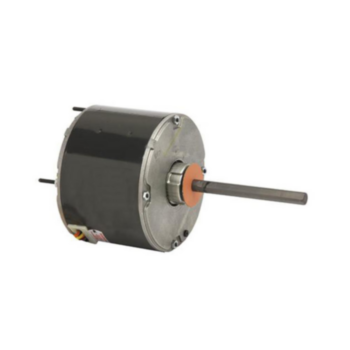

Condenser Motor, 1/6 Hp, 1 Ph
Product Description
The PROPARTS Condenser Motor, 1/6 Hp, 1 Ph is an HVAC replacement motor. It is used for condenser motors service and replacement work. Key details include Condenser Motor, PSC, Frame 48, 1/6 Hp, 208/230 V, 1 Ph, 60 Hz, 8P, Class B, 1 A, Sleeve Bearing, Direct Drive, Reversible, TEAO, Stud Mount, 825 rpm, 0.5 in Shaft, 6.7 in Wd x 10.31 in Lg x 7.4 in Ht x 14.6 in Dp.
Order by part number PPV3403 and compare it with the label on your existing component before purchasing.
Technical Specifications - PPV3403
| Part Number | PPV3403 |
|---|---|
| Full SKU | MHVC-RES-PMF-PPV3403 |
| Brand | PROPARTS |
| Part Type | Condenser Motors |
| Category | Motors and Fans |
| Catalog Detail | Condenser Motor, PSC, Frame 48, 1/6 Hp, 208/230 V, 1 Ph, 60 Hz, 8P, Class B, 1 A, Sleeve Bearing, Direct Drive, Reversible, TEAO, Stud Mount, 825 rpm, 0.5 in Shaft, 6.7 in Wd x 10.31 in Lg x 7.4 in Ht x 14.6 in Dp |
| Country of Origin | China |
| Unit Height | 7.4 in |
| Unit Width | 6.6875 in |
| Unit Depth | 14.6 in |
| Power Phase | 1 Ph |
| Power Voltage | 208/230 V |
| Motor Speed Type | PSC |
| Unit Weight | 9.95 lb |
