• Condenser Motor, 1/6 Hp, 1 Ph
1 1

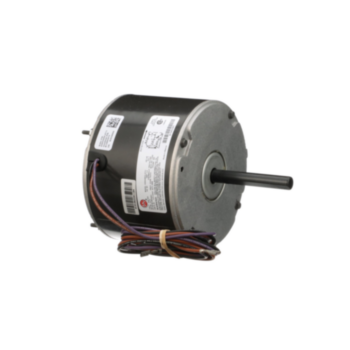

Condenser Motor, 1/6 Hp, 1 Ph

SKU: B13400251S

System highlights
AC Type
Parts
Looking For
Condenser Fan Motors

Price

$436.99
Shipping calculated at checkout.

All brand names and model numbers are used for compatibility reference only. HVACSupplies.com is not affiliated with, endorsed by, or authorized by select manufacturers.

Compatibility is based on available technical data and is not guaranteed. HVAC equipment specifications may change. Customers are responsible for verifying compatibility with a licensed HVAC technician or the manufacturer prior to purchase, including confirmation with the specific model and serial number.

All part sales are final.
View full details
HVAC Replacement Part | Condenser Motors | SKU B13400251S
Condenser Motor, 1/6 Hp, 1 Ph

Product Description

The Condenser Motor, 1/6 Hp, 1 Ph is an HVAC replacement motor. It is used for condenser motors service and replacement work. Key details include Condenser Motor, PSC, Frame 48, 1/6 Hp, 208/230 V, 1 Ph, 60 Hz, Class B, 1 A, Direct Drive, Counter Clockwise, TEAO, Ring Mount, 1 Speed, 1075 rpm, 0.46 in x 2.5 in Shaft, 9 in Wd x 7 in Ht x 10.5 in Dp.

Order by part number B13400251S and compare it with the label on your existing component before purchasing.

Technical Specifications - B13400251S

Part Number B13400251S
Full SKU MHVC-RES-PMF-B13400251S
Part Type Condenser Motors
Category Motors and Fans
Catalog Detail Condenser Motor, PSC, Frame 48, 1/6 Hp, 208/230 V, 1 Ph, 60 Hz, Class B, 1 A, Direct Drive, Counter Clockwise, TEAO, Ring Mount, 1 Speed, 1075 rpm, 0.46 in x 2.5 in Shaft, 9 in Wd x 7 in Ht x 10.5 in Dp
Country of Origin Mexico
Unit Height 7 in
Unit Width 9 in
Unit Depth 10.5 in
Power Phase 1 Ph
Power Voltage 208/230 V
Motor Speed Type PSC
Unit Weight 9 lb
Compatibility Goodman equipment
Horse power 1/6
