HVAC Replacement Part | Condenser Motors | SKU 11112805S

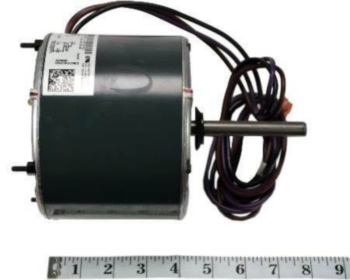

Condenser Motor, 1/5 Hp, 1 Ph
Product Description
The Condenser Motor, 1/5 Hp, 1 Ph is an HVAC replacement motor. It is used for condenser motors service and replacement work. Key details include Condenser Motor, PSC, Frame 48, 1/5 Hp, 208/230 V, 1 Ph, 60 Hz, Class B, 1.3 A, Sleeve Bearing, Direct Drive, Counter Clockwise, TEAO, 1 Speed, 825 rpm, 0.45 in x 2.5 in Shaft, 5.6 in Dia x 5.63 in Wd x 5.63 in Ht x 8.05 in Dp.
Order by part number 11112805S and compare it with the label on your existing component before purchasing.
Technical Specifications - 11112805S
| Part Number | 11112805S |
|---|---|
| Full SKU | MHVC-RES-PMF-11112805S |
| Part Type | Condenser Motors |
| Category | Motors and Fans |
| Catalog Detail | Condenser Motor, PSC, Frame 48, 1/5 Hp, 208/230 V, 1 Ph, 60 Hz, Class B, 1.3 A, Sleeve Bearing, Direct Drive, Counter Clockwise, TEAO, 1 Speed, 825 rpm, 0.45 in x 2.5 in Shaft, 5.6 in Dia x 5.63 in Wd x 5.63 in Ht x 8.05 in Dp |
| Country of Origin | Mexico |
| Unit Height | 5.63 in |
| Unit Width | 5.625 in |
| Unit Depth | 8.05 in |
| Power Phase | 1 Ph |
| Power Voltage | 208/230 V |
| Motor Speed Type | PSC |
| Unit Weight | 10 lb |
