• Condenser Motor, 1/5-1/3 Hp
1 1

Condenser Motor, 1/5-1/3 Hp

SKU: PP3465F

System highlights
AC Type
Parts
Looking For
Condenser Fan Motors

Price

$195.99
Shipping calculated at checkout.

All brand names and model numbers are used for compatibility reference only. HVACSupplies.com is not affiliated with, endorsed by, or authorized by select manufacturers.

Compatibility is based on available technical data and is not guaranteed. HVAC equipment specifications may change. Customers are responsible for verifying compatibility with a licensed HVAC technician or the manufacturer prior to purchase, including confirmation with the specific model and serial number.

All part sales are final.
View full details
PROPARTS | Condenser Motors | SKU PP3465F

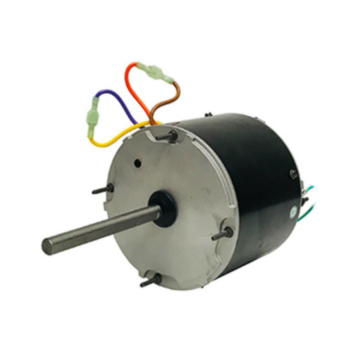

Condenser Motor, 1/5-1/3 Hp

Product Description

The PROPARTS Condenser Motor, 1/5-1/3 Hp is an HVAC replacement motor. It is used for condenser motors service and replacement work. Key details include Condenser Motor, Frame 48, 1/5-1/3 Hp, 208-230 V, 1 Ph, 50/60 Hz, Class F, 2.6 A, Ball Bearing, Direct Drive, Reversible, TEAO, 2 Speed, 1075 rpm, 0.5 in x 6 in Shaft, 6.6 in Wd x 7.6 in Ht x 14.8 in Dp.

Order by part number PP3465F and compare it with the label on your existing component before purchasing.

Technical Specifications - PP3465F

Part Number PP3465F
Full SKU MHVC-RES-PMF-PP3465F
Brand PROPARTS
Part Type Condenser Motors
Category Motors and Fans
Catalog Detail Condenser Motor, Frame 48, 1/5-1/3 Hp, 208-230 V, 1 Ph, 50/60 Hz, Class F, 2.6 A, Ball Bearing, Direct Drive, Reversible, TEAO, 2 Speed, 1075 rpm, 0.5 in x 6 in Shaft, 6.6 in Wd x 7.6 in Ht x 14.8 in Dp
Country of Origin China
Unit Height 7.6 in
Unit Width 6.59375 in
Unit Depth 14.8 in
Power Phase 1 Ph
Power Voltage 208-230 V
Unit Weight 15.85 lb
