HVAC Replacement Part | Misc Motors | SKU FSE1028SF

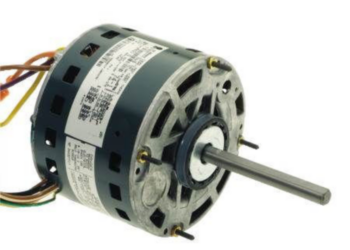

Condenser Motor, 1/4 Hp, 230 V
Product Description
The Condenser Motor, 1/4 Hp, 230 V is an HVAC replacement motor. It is used for misc motors service and replacement work. Key details include Condenser Motor, PSC, Frame 48, 1/4 Hp, 230 V, 1 Ph, 60 Hz, 8P, Class F, 1.5 A, Sleeve Bearing, Direct Drive, TEAO, Stud Mount, 825 rpm, 0.5 in x 6.4 in Shaft, 11.9 in Lg.
Order by part number FSE1028SF and compare it with the label on your existing component before purchasing.
Technical Specifications - FSE1028SF
| Part Number | FSE1028SF |
|---|---|
| Full SKU | MHVC-RES-PMF-FSE1028SF |
| Part Type | Misc Motors |
| Category | Motors and Fans |
| Catalog Detail | Condenser Motor, PSC, Frame 48, 1/4 Hp, 230 V, 1 Ph, 60 Hz, 8P, Class F, 1.5 A, Sleeve Bearing, Direct Drive, TEAO, Stud Mount, 825 rpm, 0.5 in x 6.4 in Shaft, 11.9 in Lg |
| Power Phase | 1 Ph |
| Power Voltage | 230 V |
| Motor Speed Type | PSC |
