HVAC Replacement Part | Condenser Motors | SKU B13400272S

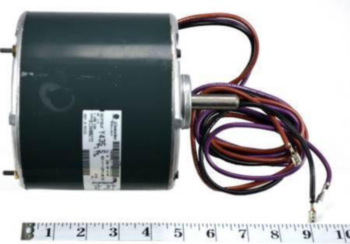

Condenser Motor, 1/4 Hp, 1 Ph
Product Description
The Condenser Motor, 1/4 Hp, 1 Ph is an HVAC replacement motor. It is used for condenser motors service and replacement work. Key details include Condenser Motor, PSC, 1/4 Hp, 208/230 V, 1 Ph, 60 Hz, Class B, 1.5 A, Direct Drive, Counter Clockwise, TEAO, Stud Mount, 1 Speed, 830 rpm, 0.5 in x 1.3 in Shaft, 5.61 in Dia x 6.96 in Lg.
Order by part number B13400272S and compare it with the label on your existing component before purchasing.
Technical Specifications - B13400272S
| Part Number | B13400272S |
|---|---|
| Full SKU | MHVC-RES-PMF-B13400272S |
| Part Type | Condenser Motors |
| Category | Motors and Fans |
| Catalog Detail | Condenser Motor, PSC, 1/4 Hp, 208/230 V, 1 Ph, 60 Hz, Class B, 1.5 A, Direct Drive, Counter Clockwise, TEAO, Stud Mount, 1 Speed, 830 rpm, 0.5 in x 1.3 in Shaft, 5.61 in Dia x 6.96 in Lg |
| Country of Origin | Mexico |
| Power Phase | 1 Ph |
| Power Voltage | 208/230 V |
| Motor Speed Type | PSC |
