• Condenser Motor, 1/4 Hp, 1 Ph
1 1

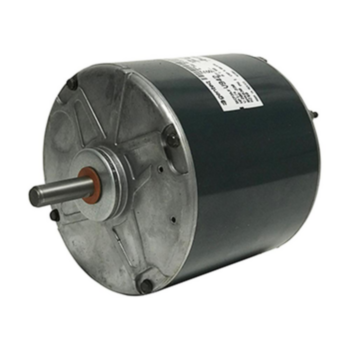

Condenser Motor, 1/4 Hp, 1 Ph

SKU: B13400271S

System highlights
AC Type
Parts
Looking For
Condenser Fan Motors

Price

$273.99
Shipping calculated at checkout.

All brand names and model numbers are used for compatibility reference only. HVACSupplies.com is not affiliated with, endorsed by, or authorized by select manufacturers.

Compatibility is based on available technical data and is not guaranteed. HVAC equipment specifications may change. Customers are responsible for verifying compatibility with a licensed HVAC technician or the manufacturer prior to purchase, including confirmation with the specific model and serial number.

All part sales are final.
View full details
HVAC Replacement Part | Condenser Motors | SKU B13400271S
Condenser Motor, 1/4 Hp, 1 Ph

Product Description

The Condenser Motor, 1/4 Hp, 1 Ph is an HVAC replacement motor. It is used for condenser motors service and replacement work. Key details include Condenser Motor, PSC, Frame 48, 1/4 Hp, 208/230 V, 1 Ph, 60 Hz, Class B, 1.5 A, Sleeve Bearing, Direct Drive, Counter Clockwise, TEAO, 1 Speed, 830 rpm, 0.46 in x 1.3 in Shaft, 5.6 in Dia x 5.61 in Wd x 5.61 in Ht x 6.96 in Dp.

Order by part number B13400271S and compare it with the label on your existing component before purchasing.

Technical Specifications - B13400271S

Part Number B13400271S
Full SKU MHVC-RES-PMF-B13400271S
Part Type Condenser Motors
Category Motors and Fans
Catalog Detail Condenser Motor, PSC, Frame 48, 1/4 Hp, 208/230 V, 1 Ph, 60 Hz, Class B, 1.5 A, Sleeve Bearing, Direct Drive, Counter Clockwise, TEAO, 1 Speed, 830 rpm, 0.46 in x 1.3 in Shaft, 5.6 in Dia x 5.61 in Wd x 5.61 in Ht x 6.96 in Dp
Country of Origin Mexico
Unit Height 5.61 in
Unit Width 5.625 in
Unit Depth 6.96 in
Power Phase 1 Ph
Power Voltage 208/230 V
Motor Speed Type PSC
Unit Weight 12 lb
