PROPARTS | Condenser Motors | SKU PP3468F

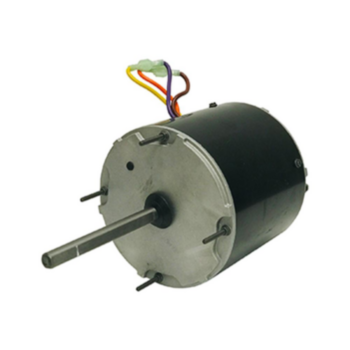

Condenser Motor, 1/4-1/2 Hp
Product Description
The PROPARTS Condenser Motor, 1/4-1/2 Hp is an HVAC replacement motor. It is used for condenser motors service and replacement work. Key details include Condenser Motor, Frame 48, 1/4-1/2 Hp, 208-230 V, 1 Ph, 50/60 Hz, Class F, 3.6 A, Ball Bearing, Direct Drive, Reversible, TEAO, 2 Speed, 1075 rpm, 0.5 in x 6 in Shaft, 7.1 in Wd x 7.5 in Ht x 14.9 in Dp.
Order by part number PP3468F and compare it with the label on your existing component before purchasing.
Technical Specifications - PP3468F
| Part Number | PP3468F |
|---|---|
| Full SKU | MHVC-RES-PMF-PP3468F |
| Brand | PROPARTS |
| Part Type | Condenser Motors |
| Category | Motors and Fans |
| Catalog Detail | Condenser Motor, Frame 48, 1/4-1/2 Hp, 208-230 V, 1 Ph, 50/60 Hz, Class F, 3.6 A, Ball Bearing, Direct Drive, Reversible, TEAO, 2 Speed, 1075 rpm, 0.5 in x 6 in Shaft, 7.1 in Wd x 7.5 in Ht x 14.9 in Dp |
| Country of Origin | India |
| Unit Height | 7.5 in |
| Unit Width | 7.09375 in |
| Unit Depth | 14.9 in |
| Power Phase | 1 Ph |
| Power Voltage | 208-230 V |
| Unit Weight | 21.5 lb |
