PROPARTS | Condenser Motors | SKU PP3737F

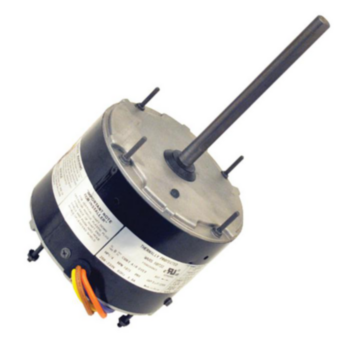

Condenser Motor, 1/3 Hp, 460 V
Product Description
The PROPARTS Condenser Motor, 1/3 Hp, 460 V is an HVAC replacement motor. It is used for condenser motors service and replacement work. Key details include Condenser Motor, Frame 48, 1/3 Hp, 460 V, 1 Ph, 50/60 Hz, Class F, 1.3 A, Ball Bearing, Direct Drive, Reversible, TEAO, 1 Speed, 1075 rpm, 0.5 in x 6 in Shaft, 6.6 in Wd x 7.2 in Ht x 14.7 in Dp.
Order by part number PP3737F and compare it with the label on your existing component before purchasing.
Technical Specifications - PP3737F
| Part Number | PP3737F |
|---|---|
| Full SKU | MHVC-RES-PMF-PP3737F |
| Brand | PROPARTS |
| Part Type | Condenser Motors |
| Category | Motors and Fans |
| Catalog Detail | Condenser Motor, Frame 48, 1/3 Hp, 460 V, 1 Ph, 50/60 Hz, Class F, 1.3 A, Ball Bearing, Direct Drive, Reversible, TEAO, 1 Speed, 1075 rpm, 0.5 in x 6 in Shaft, 6.6 in Wd x 7.2 in Ht x 14.7 in Dp |
| Country of Origin | China |
| Unit Height | 7.2 in |
| Unit Width | 6.59375 in |
| Unit Depth | 14.7 in |
| Power Phase | 1 Ph |
| Power Voltage | 460 V |
| Unit Weight | 17.05 lb |
