HVAC Replacement Part | Condenser Motors | SKU FSE1036SV1

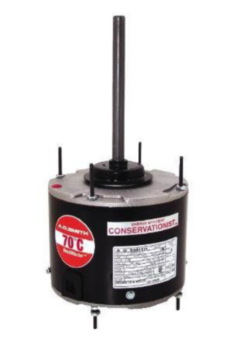

Condenser Motor, 1/3 Hp, 1 Ph
Product Description
The Condenser Motor, 1/3 Hp, 1 Ph is an HVAC replacement motor. It is used for condenser motors service and replacement work. Key details include Condenser Motor, Frame 48, 1/3 Hp, 208-230 V, 1 Ph, 60 Hz, 6P, Class B, 2.7 A, Direct Drive, TEAO, Ring Mount, 1075 rpm, 0.5 in Shaft, 11.86 in Lg.
Order by part number FSE1036SV1 and compare it with the label on your existing component before purchasing.
Technical Specifications - FSE1036SV1
| Part Number | FSE1036SV1 |
|---|---|
| Full SKU | MHVC-RES-PMF-FSE1036SV1 |
| Part Type | Condenser Motors |
| Category | Motors and Fans |
| Catalog Detail | Condenser Motor, Frame 48, 1/3 Hp, 208-230 V, 1 Ph, 60 Hz, 6P, Class B, 2.7 A, Direct Drive, TEAO, Ring Mount, 1075 rpm, 0.5 in Shaft, 11.86 in Lg |
| Power Phase | 1 Ph |
| Power Voltage | 208-230 V |
