HVAC Replacement Part | Condenser Motors | SKU 11091202S

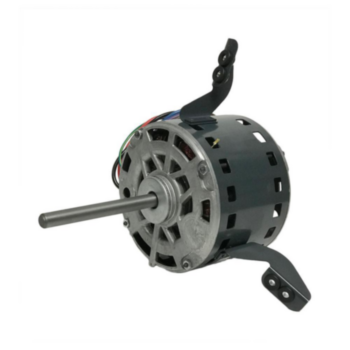

Condenser Motor, 1/3 Hp, 1 Ph
Product Description
The Condenser Motor, 1/3 Hp, 1 Ph is an HVAC replacement motor. It is used for condenser motors service and replacement work. Key details include Condenser Motor, PSC, Frame 48, 1/3 Hp, 208-230 V, 1 Ph, 6P, Class B, 1.5 A, Sleeve Bearing, Direct Drive, Counter Clockwise, OAO, T-Flex Mount, 3 Speed, 1014 rpm, 0.5 in x 4.5 in Shaft, 5.6 in Dia x 11.6 in Wd x 11.6 in Ht x 9.63 in Dp.
Order by part number 11091202S and compare it with the label on your existing component before purchasing.
Technical Specifications - 11091202S
| Part Number | 11091202S |
|---|---|
| Full SKU | MHVC-RES-PMF-11091202S |
| Part Type | Condenser Motors |
| Category | Motors and Fans |
| Catalog Detail | Condenser Motor, PSC, Frame 48, 1/3 Hp, 208-230 V, 1 Ph, 6P, Class B, 1.5 A, Sleeve Bearing, Direct Drive, Counter Clockwise, OAO, T-Flex Mount, 3 Speed, 1014 rpm, 0.5 in x 4.5 in Shaft, 5.6 in Dia x 11.6 in Wd x 11.6 in Ht x 9.63 in Dp |
| Country of Origin | China |
| Unit Height | 11.6 in |
| Unit Width | 11.59375 in |
| Unit Depth | 9.63 in |
| Power Phase | 1 Ph |
| Power Voltage | 208-230 V |
| Motor Speed Type | PSC |
| Unit Weight | 11 lb |
