• Condenser Motor, 1/3-1/6 Hp, PSC
1 1

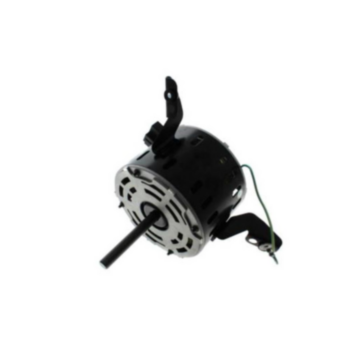

Condenser Motor, 1/3-1/6 Hp, PSC

SKU: PPV3458

System highlights
AC Type
Parts
Looking For
Condenser Fan Motors

Price

$178.99
Shipping calculated at checkout.

All brand names and model numbers are used for compatibility reference only. HVACSupplies.com is not affiliated with, endorsed by, or authorized by select manufacturers.

Compatibility is based on available technical data and is not guaranteed. HVAC equipment specifications may change. Customers are responsible for verifying compatibility with a licensed HVAC technician or the manufacturer prior to purchase, including confirmation with the specific model and serial number.

All part sales are final.
View full details
PROPARTS | Condenser Motors | SKU PPV3458
Condenser Motor, 1/3-1/6 Hp, PSC

Product Description

The PROPARTS Condenser Motor, 1/3-1/6 Hp, PSC is an HVAC replacement motor. It is used for condenser motors service and replacement work. Key details include Condenser Motor, PSC, Frame 48, 1/3-1/6 Hp, 208-230 V, 1 Ph, 60 Hz, Class B, 1.8 A, Ball Bearing, Direct Drive, Reversible, TEAO, 1 Speed, 1075 rpm, 0.5 in x 6.7 in Shaft, 6.7 in Wd x 7.2 in Ht x 14.5 in Dp.

Order by part number PPV3458 and compare it with the label on your existing component before purchasing.

Technical Specifications - PPV3458

Part Number PPV3458
Full SKU MHVC-RES-PMF-PPV3458
Brand PROPARTS
Part Type Condenser Motors
Category Motors and Fans
Catalog Detail Condenser Motor, PSC, Frame 48, 1/3-1/6 Hp, 208-230 V, 1 Ph, 60 Hz, Class B, 1.8 A, Ball Bearing, Direct Drive, Reversible, TEAO, 1 Speed, 1075 rpm, 0.5 in x 6.7 in Shaft, 6.7 in Wd x 7.2 in Ht x 14.5 in Dp
Country of Origin China
Unit Height 7.2 in
Unit Width 6.6875 in
Unit Depth 14.5 in
Power Phase 1 Ph
Power Voltage 208-230 V
Motor Speed Type PSC
Unit Weight 14.1 lb
