PROPARTS | Condenser Motors | SKU PPV3469

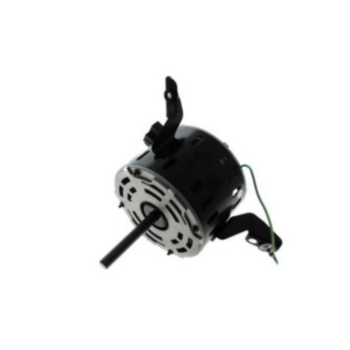

Condenser Motor, 1/3-1/5 Hp, PSC
Product Description
The PROPARTS Condenser Motor, 1/3-1/5 Hp, PSC is an HVAC replacement motor. It is used for condenser motors service and replacement work. Key details include Condenser Motor, PSC, Frame 48, 1/3-1/5 Hp, 208-230 V, 1 Ph, 60 Hz, Class B, 1.2 A, Ball Bearing, Direct Drive, Reversible, TEAO, 2 Speed, 825 rpm, 0.5 in x 6 in Shaft, 6.9 in Wd x 7.5 in Ht x 14.8 in Dp.
Order by part number PPV3469 and compare it with the label on your existing component before purchasing.
Technical Specifications - PPV3469
| Part Number | PPV3469 |
|---|---|
| Full SKU | MHVC-RES-PMF-PPV3469 |
| Brand | PROPARTS |
| Part Type | Condenser Motors |
| Category | Motors and Fans |
| Catalog Detail | Condenser Motor, PSC, Frame 48, 1/3-1/5 Hp, 208-230 V, 1 Ph, 60 Hz, Class B, 1.2 A, Ball Bearing, Direct Drive, Reversible, TEAO, 2 Speed, 825 rpm, 0.5 in x 6 in Shaft, 6.9 in Wd x 7.5 in Ht x 14.8 in Dp |
| Country of Origin | China |
| Unit Height | 7.5 in |
| Unit Width | 6.90625 in |
| Unit Depth | 14.8 in |
| Power Phase | 1 Ph |
| Power Voltage | 208-230 V |
| Motor Speed Type | PSC |
| Unit Weight | 17.35 lb |
