• Condenser Motor, 1/3-1/2 Hp
1 1

Condenser Motor, 1/3-1/2 Hp

SKU: 10870

System highlights
AC Type
Parts
Looking For
Condenser Fan Motors

Price

$322.99
Shipping calculated at checkout.

All brand names and model numbers are used for compatibility reference only. HVACSupplies.com is not affiliated with, endorsed by, or authorized by select manufacturers.

Compatibility is based on available technical data and is not guaranteed. HVAC equipment specifications may change. Customers are responsible for verifying compatibility with a licensed HVAC technician or the manufacturer prior to purchase, including confirmation with the specific model and serial number.

All part sales are final.
View full details
HVAC Replacement Part | Misc Motors | SKU 10870

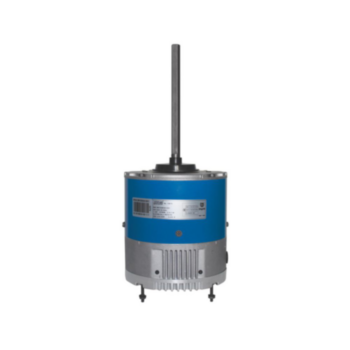

Condenser Motor, 1/3-1/2 Hp

Product Description

The Condenser Motor, 1/3-1/2 Hp is an HVAC replacement motor. It is used for misc motors service and replacement work. Key details include Condenser Motor, Frame 48, 1/3-1/2 Hp, 230/208 V, 1 Ph, Class B, 3.8 A, Ball Bearing, Direct Drive, Reversible, TEAO, Ring Mount, 2 Speed, 1075 rpm, 0.5 in x 6.96 in Shaft, 5.5 in Dia x 6.7 in Wd x 7.5 in Ht x 4.5 in Dp.

Document links are included below. Order by part number 10870 and compare it with the label on your existing component before purchasing.

Technical Specifications - 10870

Part Number 10870
Full SKU MHVC-RES-PMF-10870
Part Type Misc Motors
Category Motors and Fans
Catalog Detail Condenser Motor, Frame 48, 1/3-1/2 Hp, 230/208 V, 1 Ph, Class B, 3.8 A, Ball Bearing, Direct Drive, Reversible, TEAO, Ring Mount, 2 Speed, 1075 rpm, 0.5 in x 6.96 in Shaft, 5.5 in Dia x 6.7 in Wd x 7.5 in Ht x 4.5 in Dp
Country of Origin USA
Unit Height 7.5 in
Unit Width 6.6875 in
Unit Depth 4.5 in
Power Phase 1 Ph
Power Voltage 230/208 V
Unit Weight 3.08 lb
Compatibility Goodman Equipment
Horse power 1/2

Documents & Downloads
