PROPARTS | Condenser Motors | SKU PP3730

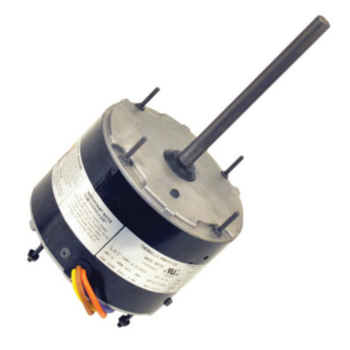

Condenser Motor, 1/2 Hp, 1 Ph
Product Description
The PROPARTS Condenser Motor, 1/2 Hp, 1 Ph is an HVAC replacement motor. It is used for condenser motors service and replacement work. Key details include Condenser Motor, Frame 48, 1/2 Hp, 208-230 V, 1 Ph, 50/60 Hz, Class B, 3.5 A, Ball Bearing, Direct Drive, Reversible, TEAO, 1 Speed, 1075 rpm, 0.5 in x 6 in Shaft, 6.8 in Wd x 7.2 in Ht x 14.9 in Dp.
Order by part number PP3730 and compare it with the label on your existing component before purchasing.
Technical Specifications - PP3730
| Part Number | PP3730 |
|---|---|
| Full SKU | MHVC-RES-PMF-PP3730 |
| Brand | PROPARTS |
| Part Type | Condenser Motors |
| Category | Motors and Fans |
| Catalog Detail | Condenser Motor, Frame 48, 1/2 Hp, 208-230 V, 1 Ph, 50/60 Hz, Class B, 3.5 A, Ball Bearing, Direct Drive, Reversible, TEAO, 1 Speed, 1075 rpm, 0.5 in x 6 in Shaft, 6.8 in Wd x 7.2 in Ht x 14.9 in Dp |
| Country of Origin | China |
| Unit Height | 7.2 in |
| Unit Width | 6.8125 in |
| Unit Depth | 14.9 in |
| Power Phase | 1 Ph |
| Power Voltage | 208-230 V |
| Unit Weight | 15.6 lb |
