HVAC Replacement Part | Condenser Motors | SKU 10584307S

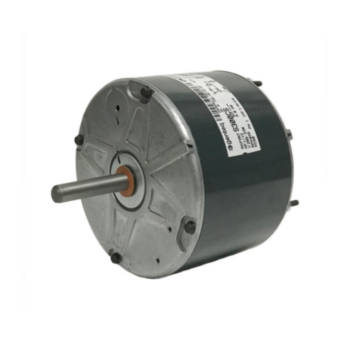

Condenser Motor, 1/12 Hp, 1 Ph
Product Description
The Condenser Motor, 1/12 Hp, 1 Ph is an HVAC replacement motor. It is used for condenser motors service and replacement work. Key details include Condenser Motor, PSC, Frame 48, 1/12 Hp, 208-230 V, 1 Ph, 50/60 Hz, Class B, 0.6 A, Sleeve Bearing, Direct Drive, Clockwise, TEAO, 1 Speed, 825 rpm, 0.5 in x 2.25 in Shaft, 5.6 in Dia x 5.61 in Wd x 5.61 in Ht x 6.3 in Dp.
Order by part number 10584307S and compare it with the label on your existing component before purchasing.
Technical Specifications - 10584307S
| Part Number | 10584307S |
|---|---|
| Full SKU | MHVC-RES-PMF-10584307S |
| Part Type | Condenser Motors |
| Category | Motors and Fans |
| Catalog Detail | Condenser Motor, PSC, Frame 48, 1/12 Hp, 208-230 V, 1 Ph, 50/60 Hz, Class B, 0.6 A, Sleeve Bearing, Direct Drive, Clockwise, TEAO, 1 Speed, 825 rpm, 0.5 in x 2.25 in Shaft, 5.6 in Dia x 5.61 in Wd x 5.61 in Ht x 6.3 in Dp |
| Country of Origin | Mexico |
| Unit Height | 5.61 in |
| Unit Width | 5.625 in |
| Unit Depth | 6.3 in |
| Power Phase | 1 Ph |
| Power Voltage | 208-230 V |
| Motor Speed Type | PSC |
| Unit Weight | 8 lb |
