HVAC Replacement Part | Condensate Pumps, Tubing and Accessories | SKU OP20UL01UN23

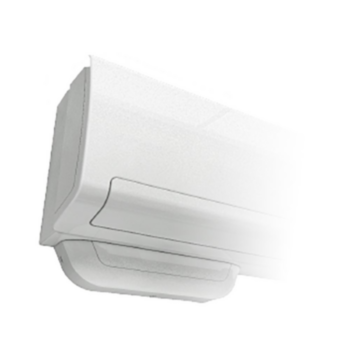

Condensate Kit, Omega Pack Ductless, Styrofoam Float, 5 gph
Product Description
The Condensate Kit, Omega Pack Ductless, Styrofoam Float, 5 gph is an HVAC replacement kit. It is used for condensate pumps, tubing and accessories service and replacement work. Key details include SI-20 Piston Pump, Detection Unit - SI2958, (2) 2 ft Cable, Anti-Vibration Rubber Dampers, Clear PVC Tubing, 0.25 in Id Fitted with A Drain Safe Device, (2) Power Cable, 5 ft Power Wires, 2 Safety Wires), Shell (2-part: Back plate and Cover), Screws and Plugs for Affixing Back plate, 90 Deg Rubber Elbow, 0.59375 in X 6 in LG, Vent Tube, 0.15625 in ID x 2.937 in LG, Split Connector, 0.5 to 0.625 in, (3) Double Wire Clamps, (3) Tie Wraps, 2.25 in WD, 12.875 in LG, 2.5 in HT, Styrofoam Float, 5 gph, White, 230 VAC, 0.065 A, 60 Hz, 14 W, 240 degF Max, Meets UL.
Document links are included below. Order by part number OP20UL01UN23 and compare it with the label on your existing component before purchasing.
Technical Specifications - OP20UL01UN23
| Part Number | OP20UL01UN23 |
|---|---|
| Full SKU | MHVC-RES-PEC-OP20UL01UN23 |
| Part Type | Condensate Pumps, Tubing and Accessories |
| Category | Electrical and Controls |
| Catalog Detail | SI-20 Piston Pump, Detection Unit - SI2958, (2) 2 ft Cable, Anti-Vibration Rubber Dampers, Clear PVC Tubing, 0.25 in Id Fitted with A Drain Safe Device, (2) Power Cable, 5 ft Power Wires, 2 Safety Wires), Shell (2-part: Back plate and Cover), Screws and Plugs for Affixing Back plate, 90 Deg Rubber Elbow, 0.59375 in X 6 in LG, Vent Tube, 0.15625 in ID x 2.937 in LG, Split Connector, 0.5 to 0.625 in, (3) Double Wire Clamps, (3) Tie Wraps, 2.25 in WD, 12.875 in LG, 2.5 in HT, Styrofoam Float, 5 gph, White, 230 VAC, 0.065 A, 60 Hz, 14 W, 240 degF Max, Meets UL |
| • Si-20 piston pump with | - Detection unit - SI2958, 2’ cable |
