HVAC Replacement Part | Scroll Compressors | SKU ZP103KCETF5855

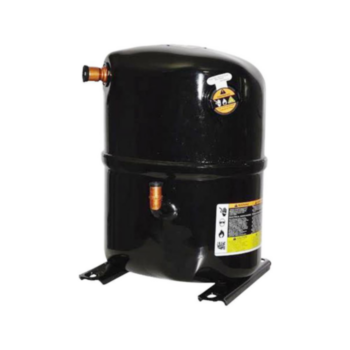

Compressor, Scroll, 10 Ton, 3 Ph
Product Description
The Compressor, Scroll, 10 Ton, 3 Ph is an HVAC replacement compressor. It is used for scroll compressors service and replacement work. Key details include 105000 BTU/HR, 10 Ton, R-410A, 200/230 V, 3 Ph, 50/60 Hz, 33.6 A, 1-1/4 in Gas x 7/8 in Liquid Pipe, 11.23 in Wd x 10.38 in Lg x 21 in Ht x 10.38 in Dp, Meets UL.
Order by part number ZP103KCETF5855 and compare it with the label on your existing component before purchasing.
Technical Specifications - ZP103KCETF5855
| Part Number | ZP103KCETF5855 |
|---|---|
| Full SKU | MHVC-RES-PEC-ZP103KCETF5855 |
| Part Type | Scroll Compressors |
| Category | Electrical and Controls |
| Catalog Detail | 105000 BTU/HR, 10 Ton, R-410A, 200/230 V, 3 Ph, 50/60 Hz, 33.6 A, 1-1/4 in Gas x 7/8 in Liquid Pipe, 11.23 in Wd x 10.38 in Lg x 21 in Ht x 10.38 in Dp, Meets UL |
| Country of Origin | USA |
| Refrigerant Type | R-410A |
| Unit Height | 21 in |
| Unit Width | 11.21875 in |
| Unit Depth | 10.38 in |
| Power Phase | 3 Ph |
| Power Voltage | 200/230 V |
| Compressor Type | Scroll |
| Unit Weight | 134 lb |
