Bravo Roma 3 Ton Wall Mount Mini Split, 36,000 BTU AC & Heat Pump (R32) · BRV-R36W-230VI + BRV-R36LS-230VO
Product Overview
High-capacity single-zone ductless system with inverter technology, R32 refrigerant, smart app control, and a 13 ft installation kit included for powerful, efficient comfort in larger spaces.
Badges
- 36,000 BTU • 3 Ton
- R32 Refrigerant
- SEER2 17 • HSPF2-4 8.5
- 208–230V • 1Ph • 60Hz
- Wi-Fi Smart App
- 13 ft Install Kit Included
Contact
Contact us for custom quotes & questions • Call 800-543-8933 for questions
Performance features
- Single-zone wall-mounted design — ideal for large rooms or open living spaces
- Inverter compressor for efficient, modulating cooling and heating

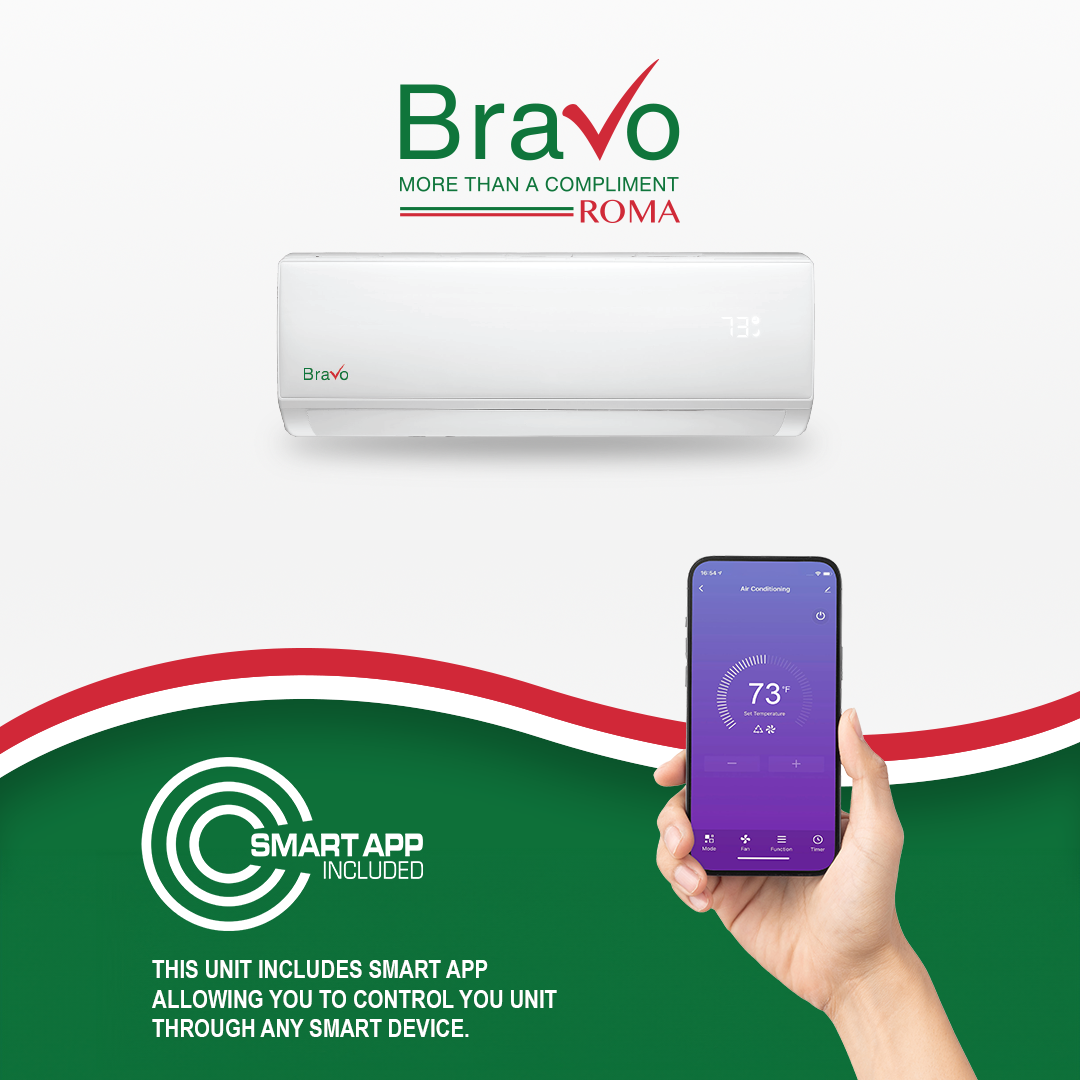

- Wi-Fi adapter and SMART APP included for control from compatible smart devices
- Remote control included for convenient in-room adjustments
- Comfort modes: Super, Eco, Sleep, and Silent
- Louver auto swing for even air distribution
- Self-cleaning function with anti-mildew mode
- Multiple fan speeds and programmable timer
- Activated carbon filter for improved air quality
At-a-glance
| Cooling capacity | 35,000 Btu/h (36K class) |
|---|---|
| Heating capacity | 34,500 Btu/h |
| Indoor airflow | Up to 882 CFM |
| Indoor sound level | 39–55 dB(A) (multi-speed) |
| Refrigerant | R32 |
| Install kit | 13 ft kit included (pre-flared 99% copper + accessories) |

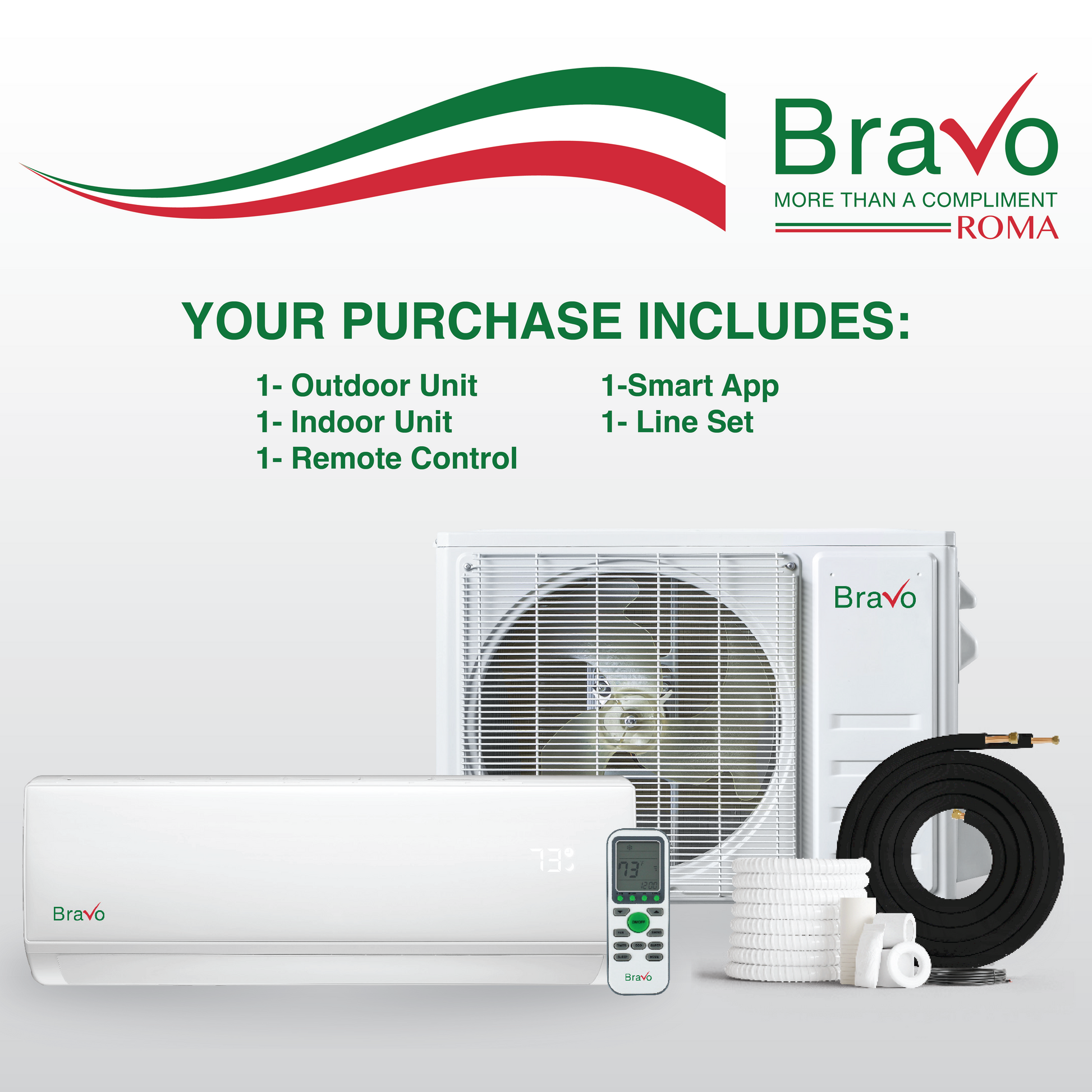

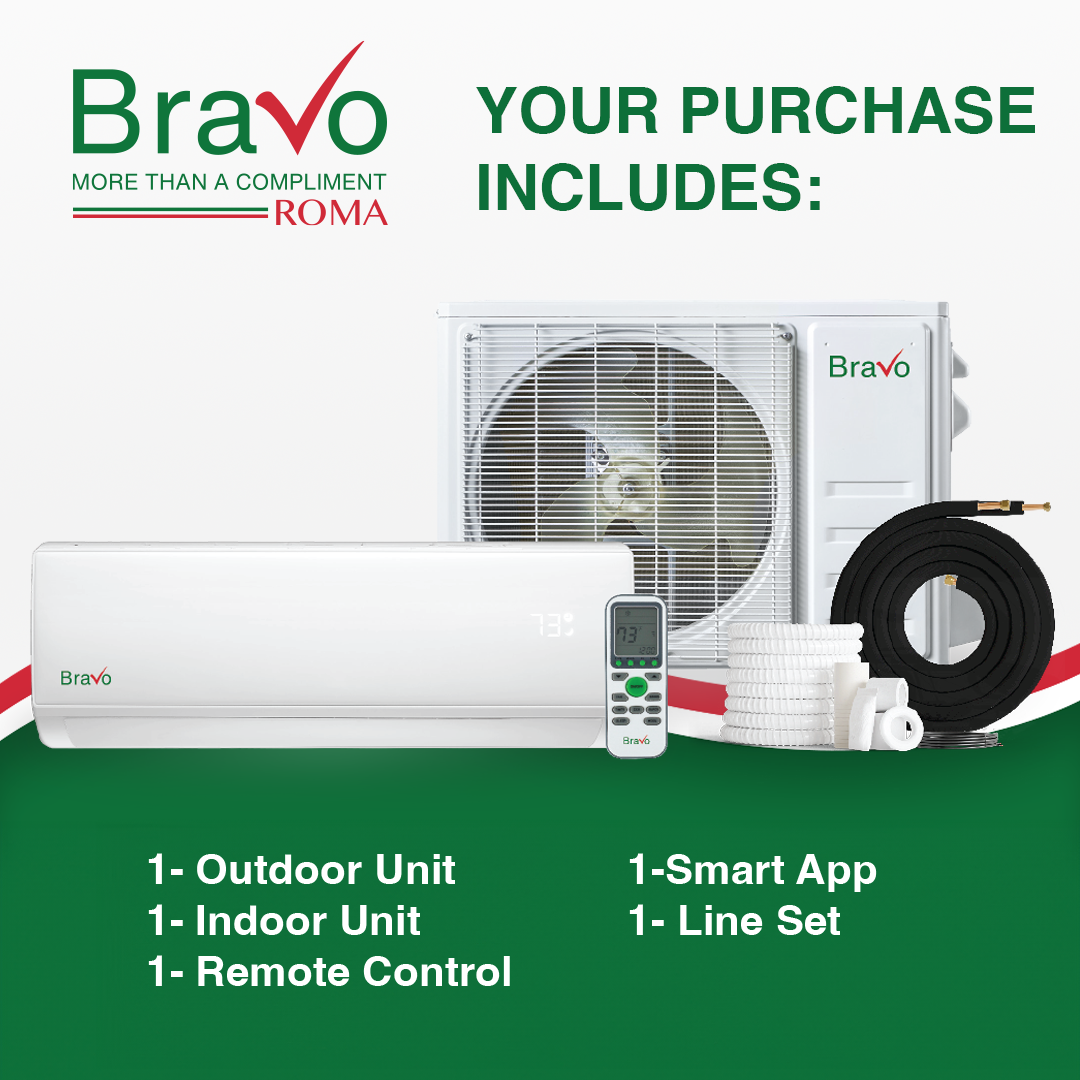

What’s included
- Complete Bravo Roma 36,000 BTU single-zone system — mini split AC & heat pump inverter set
- Indoor unit: BRV-R36W-230VI (wall mount, includes wireless remote)
- Outdoor unit: BRV-R36LS-230VO (heat pump condenser)
- Wi-Fi adapter for SMART APP connectivity
- 13 ft installation kit included — pre-flared 99% copper line set, communication wire, PVC drain attachment, wrapping bands, and accessories
- Installation manual and user’s manual
- Manufacturer limited warranty (see warranty section)
Warranty coverage typically requires installation by a licensed HVAC professional and timely registration. Confirm the current requirements at time of purchase/installation.
Other Bravo Roma single-zone wall mount systems
| Capacity | System model (search) |
|---|---|
| 12,000 BTU 115V | BRV-R12W-115VI + BRV-R12LS-115VO |
| 12,000 BTU 230V | BRV-R12W-230VI + BRV-R12LS-230VO |
| 18,000 BTU 230V | BRV-R18W-230VI + BRV-R18LS-230VO |
| 24,000 BTU 230V | BRV-R24W-230VI + BRV-R24LS-230VO |
| 36,000 BTU 230V (this model) | BRV-R36W-230VI + BRV-R36LS-230VO |

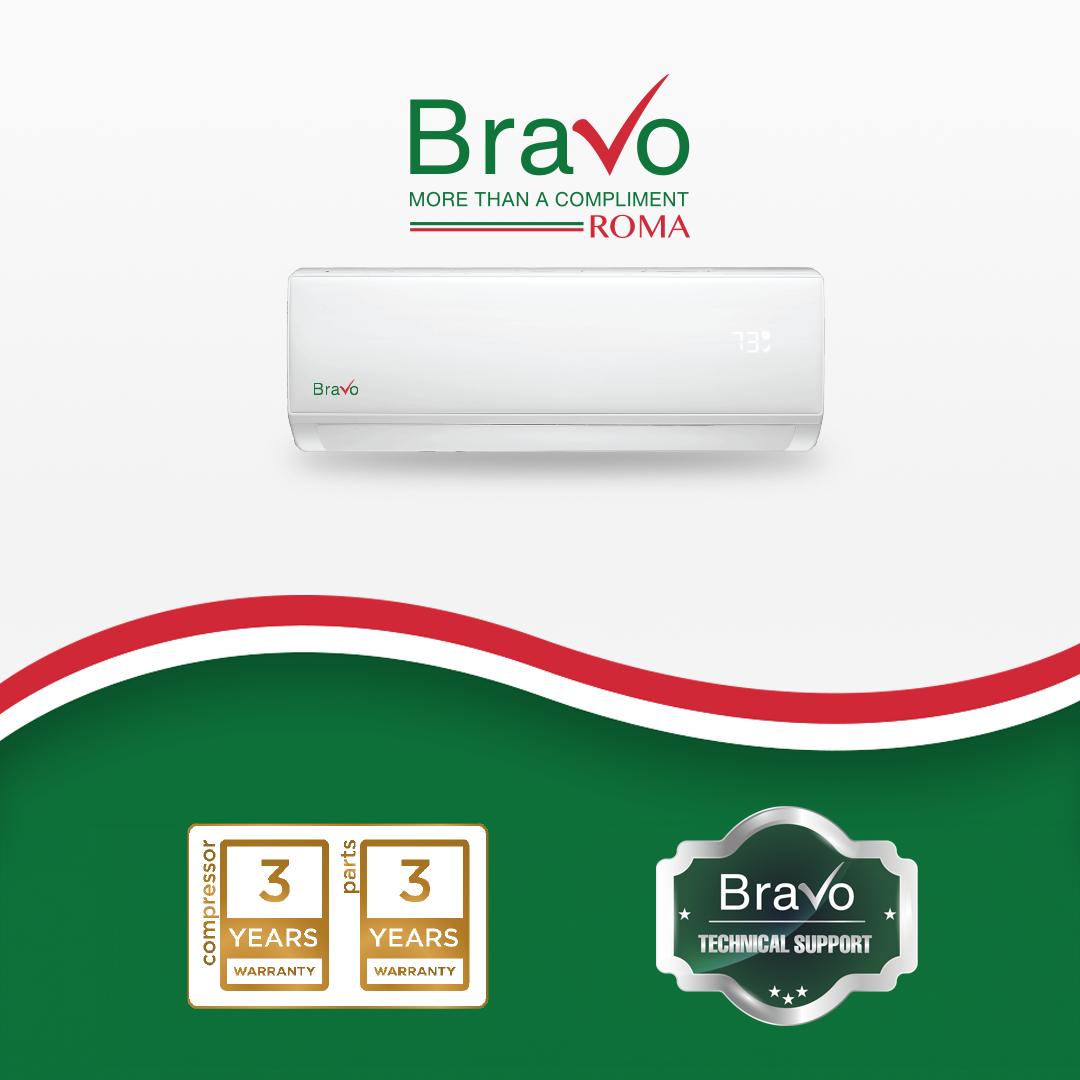

Warranty
3-year compressor (limited) • 3-year parts (limited)
Warranty terms can require licensed installation and registration. Refer to the current manufacturer warranty documentation for full details.
Technical specifications
System ratings
| Indoor model | BRV-R36W-230VI |
|---|---|
| Outdoor model | BRV-R36LS-230VO |
| Power supply | 208–230V • 1Ph • 60 Hz |
| Cooling capacity | 35,000 Btu/h |
| Heating capacity | 34,500 Btu/h |
| EER2 | 9.7 |
| SEER2 | 17 |
| HSPF2-4 | 8.5 |
| COP2 (heating) | 3.2 W/W |
| Minimum circuit ampacity | 23 A |
| Max fuse | 35 A |
| Refrigerant | R32 |
| Refrigerant precharge | 25 ft line length |
| Max refrigerant pipe length | 65 ft |
| Refrigerant piping | 1/4″ (liquid) / 5/8″ (gas) |
Indoor unit (BRV-R36W-230VI)
| Air flow | 882 / 741 / 564 / 458 / 411 CFM (multi-speed) |
|---|---|
| Sound level (hi–lo) | 55 / 52 / 46 / 41 / 39 dB(A) |
| Dimensions | 46.88 × 14.17 × 10.15 in (W×D×H) |
| Packing | 49.60 × 16.92 × 12.91 in (W×D×H) |
| Net weight | 46.3 lb |
Outdoor unit (BRV-R36LS-230VO)
| Outdoor air flow | 1,645 CFM |
|---|---|
| Outdoor sound level | 63 dB(A) |
| Dimensions | 38.50 × 16.57 × 31.61 in (W×D×H) |
| Packing | 40.23 × 18.89 × 32.87 in (W×D×H) |
| Net weight | 120.2 lb |
| Design pressure | 652.5 PSIG |
Operating temperature ranges
| Indoor (cooling / heating) | 62°F to 86°F (typical occupied range) |
|---|---|
| Outdoor (cooling) | 5°F to 122°F |
| Outdoor (heating) | −4°F to 86°F |
| Connection wiring | 4 × 16 AWG |
Certifications
Comfort & performance features
- Sleek matte finish indoor unit
- Turbo function for rapid cooling or heating
- Silent function for reduced sound levels
- LED display for quick status and setpoint checks
- Horizontal auto swing for improved air distribution
- Programmable timer
- Comfortable Sleep Mode for nighttime operation
- Multiple fan speeds for fine-tuned airflow
- Self-cleaning function to help reduce coil buildup
- Follow Me function (temperature sensing at the remote)
- Activated carbon filter for enhanced air filtration
Manuals & documents
- Indoor Unit General Manufacturing Information (BRV-R36W-230VI)
- Outdoor Unit General Manufacturing Information (BRV-R36LS-230VO)
- Bravo Roma Leaflet (PDF)
- Owner’s Manual (PDF)
- Installation Manual (PDF)
If you need the latest PDFs for this exact model pair, contact us and we’ll send them.
Full description
Expand
The Bravo Roma 36,000 BTU single-zone wall mount mini split is built for larger spaces that demand strong, efficient performance. With inverter technology, R32 refrigerant, and a SEER2 rating of 17, it delivers year-round comfort while helping manage energy use.
Control options include smart app operation (via included Wi-Fi adapter) plus a handheld remote for in-room adjustments. Multiple comfort modes (Super, Eco, Sleep, Silent) and wide airflow settings help you tune the system from rapid pull-down to quieter nighttime operation. Self-cleaning / anti-mildew functions help keep the indoor coil cleaner and drier, and the activated carbon filter supports improved air quality.
A 13 ft installation kit is included for a straightforward standard install. For longer line-set runs (up to the specified maximum), additional materials may be required.
FAQs
Does this system include a line set?
Yes. A 13 ft pre-flared 99% copper installation kit is included, along with communication wire, drain attachment, and basic accessories.
What refrigerant does this unit use?
This Bravo Roma system uses R32 refrigerant.
What are the operating temperature limits?
Per the provided specs: outdoor cooling 5°F to 122°F and outdoor heating −4°F to 86°F. Confirm the latest manufacturer documentation for current ratings.
Do I need a licensed HVAC professional to install it?
Typically yes for warranty validity. Confirm the current warranty terms and registration requirements before installation.
