BRAVO ROMA — Single Zone Wall Mount
Bravo Roma 2 Ton Wall Mount Mini Split, 24,000 BTU AC & Heat Pump (R32) · BRV-R24W-230VI + BRV-R24LS-230VO
Product Overview
High-capacity 24,000 BTU single-zone ductless mini split with inverter technology, R32 refrigerant, smart app control, and a 13 ft installation kit included — ideal for living rooms, open areas, and medium-to-large spaces.
Badges
- 24,000 BTU • 2 Ton
- R32 Refrigerant
- SEER2 18 • HSPF2-4 8.64
- 208–230V • 1Ph • 60Hz
- Wi-Fi Smart App
- 13 ft Install Kit Included
Contact
Contact us for custom quotes & questions • Call 800-543-8933 for questions
Performance features
- Single-zone wall-mounted design — sized for living rooms, large bedrooms, and medium-to-large zones
- Inverter compressor for efficient, modulating cooling and heating
- Wi-Fi adapter and SMART APP included for control from compatible smart devices
- Wireless remote control for convenient in-room adjustments
- Comfort modes: Super, Eco, Sleep, and Silent
- Louver auto swing for more even air distribution
- Self-cleaning function with anti-mildew mode
- Multiple fan speeds and programmable timer
- Activated carbon filter for improved air quality
At-a-glance
| Cooling capacity | 24,000 Btu/h |
|---|---|
| Heating capacity | 24,000 Btu/h |
| Airflow | Up to 588 CFM |
| Indoor sound level | 39–47 dB(A) (multi-speed) |
| Refrigerant | R32 |
| Install kit | 13 ft kit included (pre-flared 99% copper + accessories) |
What’s included
- Complete Bravo Roma 24,000 BTU single-zone system — mini split AC & heat pump inverter set
- Indoor unit: BRV-R24W-230VI (24,000 BTU wall mount, includes wireless remote)
- Outdoor unit: BRV-R24LS-230VO (24,000 BTU heat pump condenser)
- Wi-Fi adapter for SMART APP connectivity
- 13 ft installation kit included — pre-flared 99% copper line set, communication wire, PVC drain attachment, wrapping bands, and accessories
- Installation manual and user’s manual
- Manufacturer limited warranty (see warranty section)
For warranty coverage, installation by a licensed HVAC professional and timely registration may be required. Confirm current manufacturer terms.
Other Bravo Roma single-zone wall mount systems
| Capacity | System model (search) |
|---|---|
| 12,000 BTU 115V | BRV-R12W-115VI + BRV-R12LS-115VO |
| 12,000 BTU 230V | BRV-R12W-230VI + BRV-R12LS-230VO |
| 18,000 BTU 230V | BRV-R18W-230VI + BRV-R18LS-230VO |
| 24,000 BTU 230V (this model) | BRV-R24W-230VI + BRV-R24LS-230VO |
| 36,000 BTU 230V | BRV-R36W-230VI + BRV-R36LS-230VO |
Warranty
3-year compressor (limited) • 3-year parts (limited)
Warranty typically requires licensed installation and timely registration. Refer to current manufacturer terms for full details.
Technical specifications
System ratings
| Indoor model | BRV-R24W-230VI |
|---|---|
| Outdoor model | BRV-R24LS-230VO |
| Power supply | 208–230V • 1Ph • 60 Hz |
| Cooling capacity | 24,000 Btu/h |
| Heating capacity | 24,000 Btu/h |
| SEER2 | 18 |
| HSPF2-4 | 8.64 |
| COP2 (heating) | 3.5 W/W |
| Minimum circuit ampacity | 13 A |
| Max fuse | 20 A |
| Refrigerant | R32 |
| Refrigerant precharge | 25 ft line length |
| Design pressure | 652.5 PSIG |
| Refrigerant piping | 1/4″ (liquid) / 1/2″ (gas) |
| Max refrigerant pipe length | 65 ft |
| Connection wiring | 4 × 16 AWG |
Indoor unit (BRV-R24W-230VI)
| Indoor air flow | 588 CFM |
|---|---|
| Noise level (hi–lo) | 47 / 45 / 39 dB(A) |

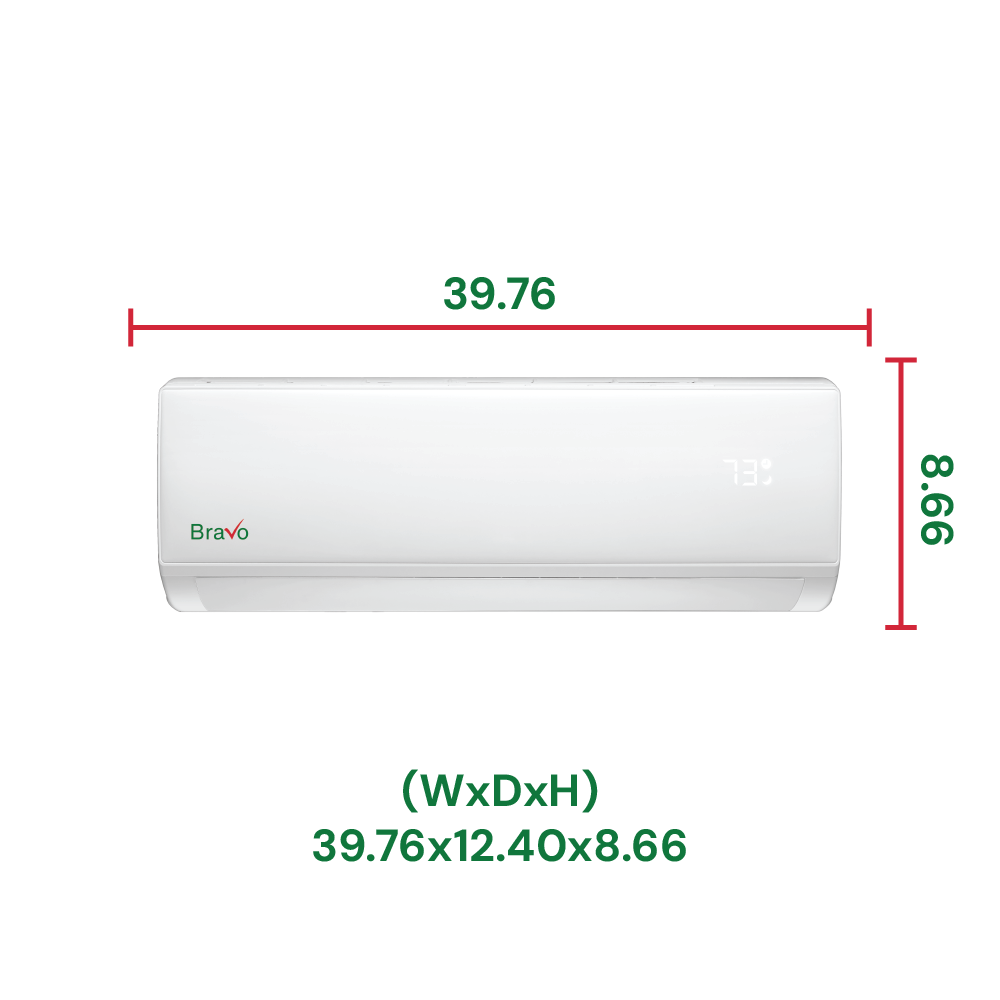

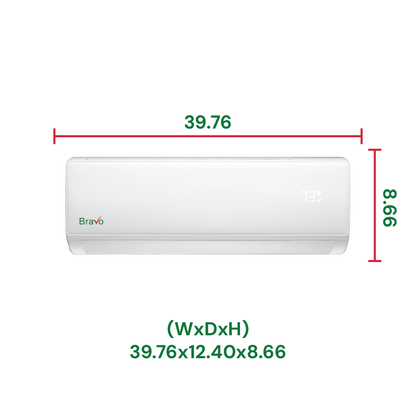

| Dimensions | 39.76 × 12.40 × 8.66 in (W×D×H) |
| Packing | 43.15 × 15.35 × 11.81 in (W×D×H) |
| Net weight | 28.66 lb |
Outdoor unit (BRV-R24LS-230VO)
| Outdoor air flow | 1,645 CFM |
|---|---|
| Outdoor sound level | 55 dB(A) |

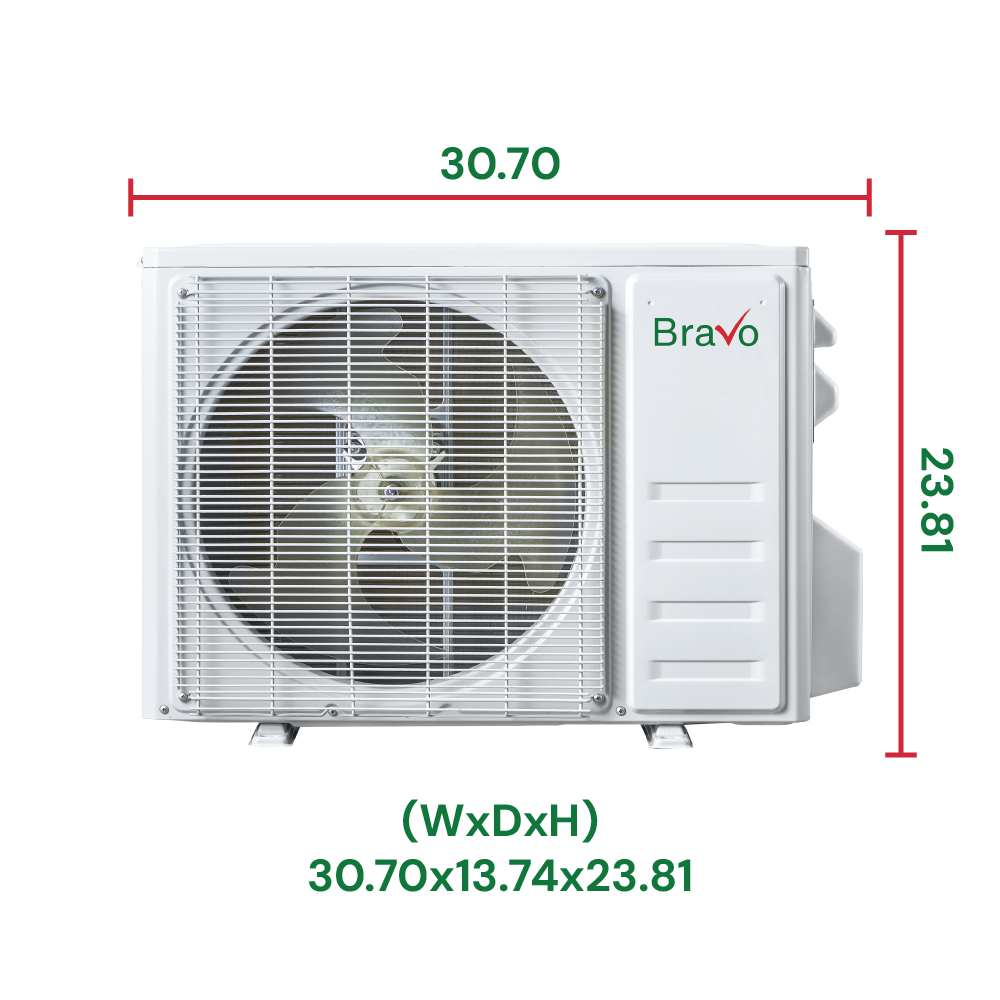

| Dimensions | 30.70 × 13.74 × 23.81 in (W×D×H) |
| Packing | 35.43 × 15.94 × 25.79 in (W×D×H) |
| Net weight | 72.8 lb |
Operating temperature ranges
| Indoor (cooling / heating) | ≥ 62°F / ≤ 86°F |
|---|---|
| Outdoor (cooling) | 5°F to 122°F |
| Outdoor (heating) | −4°F to 86°F |
Certifications
Comfort & performance features
- Sleek matte finish indoor unit
- Turbo function for rapid cooling or heating
- Silent function for reduced sound levels
- LED display for quick status and setpoint checks
- Horizontal auto swing for improved air distribution
- Programmable timer
- Comfortable Sleep Mode for nighttime operation
- Multiple fan speeds for fine-tuned airflow
- Self-cleaning function to help reduce coil buildup
- Follow Me function (temperature sensing at the remote)
- Activated carbon filter for enhanced air filtration
Manuals & documents
- Indoor Unit General Manufacturing Information (BRV-R24W-230VI)
- Outdoor Unit General Manufacturing Information (BRV-R24LS-230VO)
- Bravo Roma Leaflet (PDF)
- Owner’s Manual (PDF)
- Installation Manual (PDF)
If you need the latest PDFs for this exact model pair, request them via the contact link above.
Full description
Expand
The Bravo Roma 24,000 BTU single-zone wall mount mini split is designed for spaces that need higher capacity without ductwork—such as larger living rooms, open basements, or combined kitchen–living areas. With inverter operation and R32 refrigerant, it provides efficient year-round heating and cooling in a compact wall-mounted format.
The included Wi-Fi adapter and SMART APP support control from compatible smart devices, while the handheld remote provides direct in-room adjustments. Comfort modes such as Super, Eco, Sleep, and Silent help tailor operation—from quick pull-down on hot days to quieter nighttime performance.
A 13 ft installation kit is included for standard installs. For longer runs (up to the listed maximum), additional materials may be required.
FAQs
Does this system include a line set?
Yes. A 13 ft pre-flared 99% copper installation kit is included, along with communication wire, drain attachment, and basic accessories. For longer runs up to the 65 ft maximum, additional materials may be required.
What refrigerant does this unit use?
This system uses R32 refrigerant.
What are the operating temperature limits?
Per the provided specs: outdoor cooling 5°F to 122°F and outdoor heating −4°F to 86°F. Confirm current manufacturer documentation for the latest ratings.
Do I need a licensed HVAC professional to install it?
Typically yes for warranty validity. Confirm current warranty terms and registration requirements prior to installation.
