Bravo Roma 1.5 Ton Wall Mount Mini Split, 18,000 BTU AC & Heat Pump (R32) · BRV-R18W-230VI + BRV-R18LS-230VO
Product Overview
Efficient 18,000 BTU single-zone ductless mini split with inverter technology, R32 refrigerant, smart app control, and a 13 ft installation kit included — ideal for bedrooms, living rooms, and medium-size spaces.
Badges
- 18,000 BTU • 1.5 Ton
- R32 Refrigerant
- SEER2 18 • HSPF2-4 10.5
- 208–230V • 1Ph • 60Hz
- Wi-Fi Smart App
- 13 ft Install Kit Included
Contact
Contact us for custom quotes & questions • Call 800-543-8933 for questions
Performance features
- Single-zone wall-mounted design — sized for bedrooms, living rooms, and medium-size areas
- Inverter compressor for efficient, modulating cooling and heating
- Wi-Fi adapter and SMART APP included for control from compatible smart devices
- Wireless remote control for convenient in-room adjustments
- Comfort modes: Super, Eco, Sleep, and Silent
- Louver auto swing for even air distribution
- Self-cleaning function with anti-mildew mode
- Multiple fan speeds and programmable timer
- Activated carbon filter for improved air quality
At-a-glance
| Cooling capacity | 17,000 Btu/h |
|---|---|
| Heating capacity | 17,000 Btu/h |
| Indoor airflow | Up to 588 CFM |
| Indoor sound level | 32–49 dB(A) (multi-speed) |
| Refrigerant | R32 |
| Install kit | 13 ft kit included (pre-flared 99% copper + accessories) |

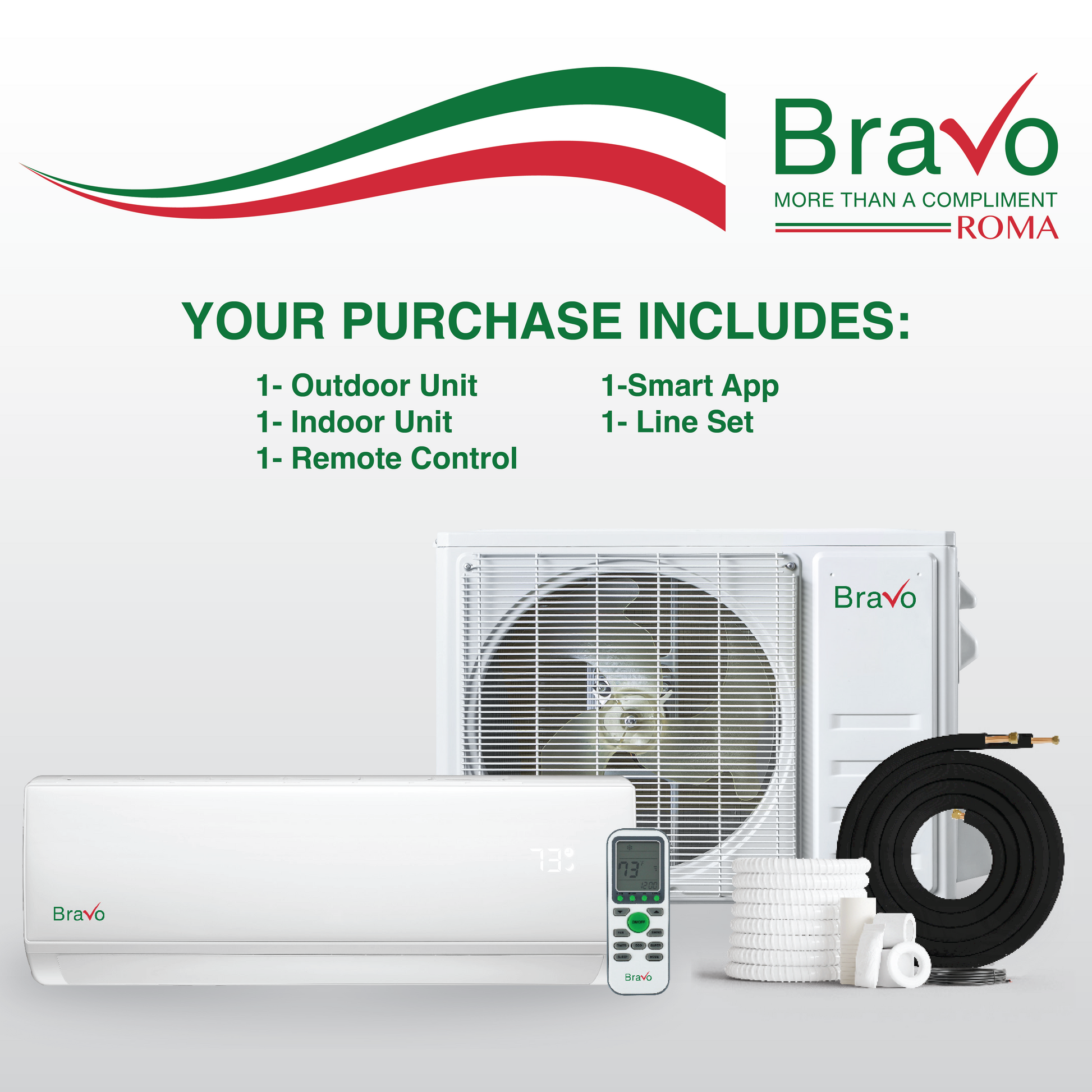

What’s included
- Complete Bravo Roma 18,000 BTU single-zone system — mini split AC & heat pump inverter set
- Indoor unit: BRV-R18W-230VI (wall mount, includes wireless remote)
- Outdoor unit: BRV-R18LS-230VO (heat pump condenser)
- Wi-Fi adapter for SMART APP connectivity
- 13 ft installation kit included — pre-flared 99% copper line set, communication wire, PVC drain attachment, wrapping bands, and accessories
- Installation manual and user’s manual
- Manufacturer limited warranty (see warranty section)
All units must be installed by a licensed HVAC professional for the warranty to remain valid. Registration is typically required within 60 days of installation.
Other Bravo Roma single-zone wall mount systems
| Capacity | System model (search) |
|---|---|
| 12,000 BTU 115V | BRV-R12W-115VI + BRV-R12LS-115VO |
| 12,000 BTU 230V | BRV-R12W-230VI + BRV-R12LS-230VO |
| 18,000 BTU 230V (this model) | BRV-R18W-230VI + BRV-R18LS-230VO |
| 24,000 BTU 230V | BRV-R24W-230VI + BRV-R24LS-230VO |
| 36,000 BTU 230V | BRV-R36W-230VI + BRV-R36LS-230VO |
Warranty
3-year compressor (limited) • 3-year parts (limited)
Warranty typically requires licensed installation and timely product registration. Refer to current manufacturer terms for full details.
Technical specifications
System ratings
| Indoor model | BRV-R18W-230VI |
|---|---|
| Outdoor model | BRV-R18LS-230VO |
| Power supply | 208–230V • 1Ph • 60 Hz |
| Cooling capacity | 17,000 Btu/h |
| Heating capacity | 17,000 Btu/h |
| EER2 | 9.5 |
| SEER2 | 18 |
| HSPF2-4 | 10.5 |
| COP2 (heating) | 3.5 W/W |
| Minimum circuit ampacity | 13 A |
| Max fuse | 20 A |
| Refrigerant | R32 |
| Refrigerant precharge | 25 ft line length |
| Design pressure | 652.5 PSIG |
| Refrigerant piping | 1/4″ (liquid) / 3/8″ (gas) |
| Max refrigerant pipe length | 50 ft |
| Connection wiring | 4 × 16 AWG |
Indoor unit (BRV-R18W-230VI)
| Indoor air flow | 588 CFM |
|---|---|
| Noise level (hi–lo) | 49 / 45 / 43 / 40 / 37 / 34 / 32 dB(A) |
| Dimensions | 35.82 × 11.57 × 8.11 in (W×D×H) |
| Packing | 38.54 × 14.64 × 10.90 in (W×D×H) |
| Net weight | 26.46 lb |
Outdoor unit (BRV-R18LS-230VO)
| Outdoor air flow | 1,704 CFM |
|---|---|
| Outdoor sound level | 57 dB(A) |
| Dimensions | 31.88 × 12.00 × 21.61 in (W×D×H) |
| Packing | 33.54 × 14.09 × 24.02 in (W×D×H) |
| Net weight | 62.8 lb |
Operating temperature ranges
| Indoor (cooling / heating) | ≥ 62°F / ≤ 86°F |
|---|---|
| Outdoor (cooling) | 5°F to 122°F |
| Outdoor (heating) | −4°F to 86°F |
Certifications
Comfort & performance features
- Sleek matte finish indoor unit
- Turbo function for rapid cooling or heating
- Silent function for reduced sound levels
- LED display for quick status and setpoint checks
- Horizontal auto swing for improved air distribution
- Programmable timer
- Comfortable Sleep Mode for nighttime operation
- Multiple fan speeds for fine-tuned airflow
- Self-cleaning function to help reduce coil buildup
- Follow Me function (temperature sensing at the remote)
- Activated carbon filter for enhanced air filtration
Manuals & documents
- Indoor Unit General Manufacturing Information (BRV-R18W-230VI)
- Outdoor Unit General Manufacturing Information (BRV-R18LS-230VO)
- Bravo Roma Leaflet (PDF)
- Owner’s Manual (PDF)
- Installation Manual (PDF)
Contact us if you want the latest PDFs sent for this exact model pair.
Full description
Expand
The Bravo Roma 18,000 BTU single-zone wall mount mini split is designed for spaces that need efficient, quiet comfort without ductwork. With inverter technology and R32 refrigerant, it delivers strong year-round heating and cooling while helping manage energy use.
Control options include smart app operation (via included Wi-Fi adapter) and a handheld remote for in-room adjustments. Comfort modes such as Super, Eco, Sleep, and Silent let you tailor operation—from fast pull-down on hot days to quieter nighttime performance. Self-cleaning and anti-mildew functions help keep the indoor coil cleaner and drier, and the activated carbon filter supports improved air quality.
A 13 ft installation kit is included for a standard install. For longer line-set runs (up to the listed maximum), additional materials may be required.
FAQs
Does this system include a line set?
Yes. A 13 ft pre-flared 99% copper installation kit is included, along with communication wire, drain attachment, and basic accessories.
What refrigerant does this unit use?
This system uses R32 refrigerant.
What are the operating temperature limits?
Per the provided specs: outdoor cooling 5°F to 122°F and outdoor heating −4°F to 86°F. Confirm current manufacturer documentation for the latest ratings.
Do I need a licensed HVAC professional to install it?
Typically yes for warranty validity. Confirm current warranty terms and registration requirements prior to installation.
