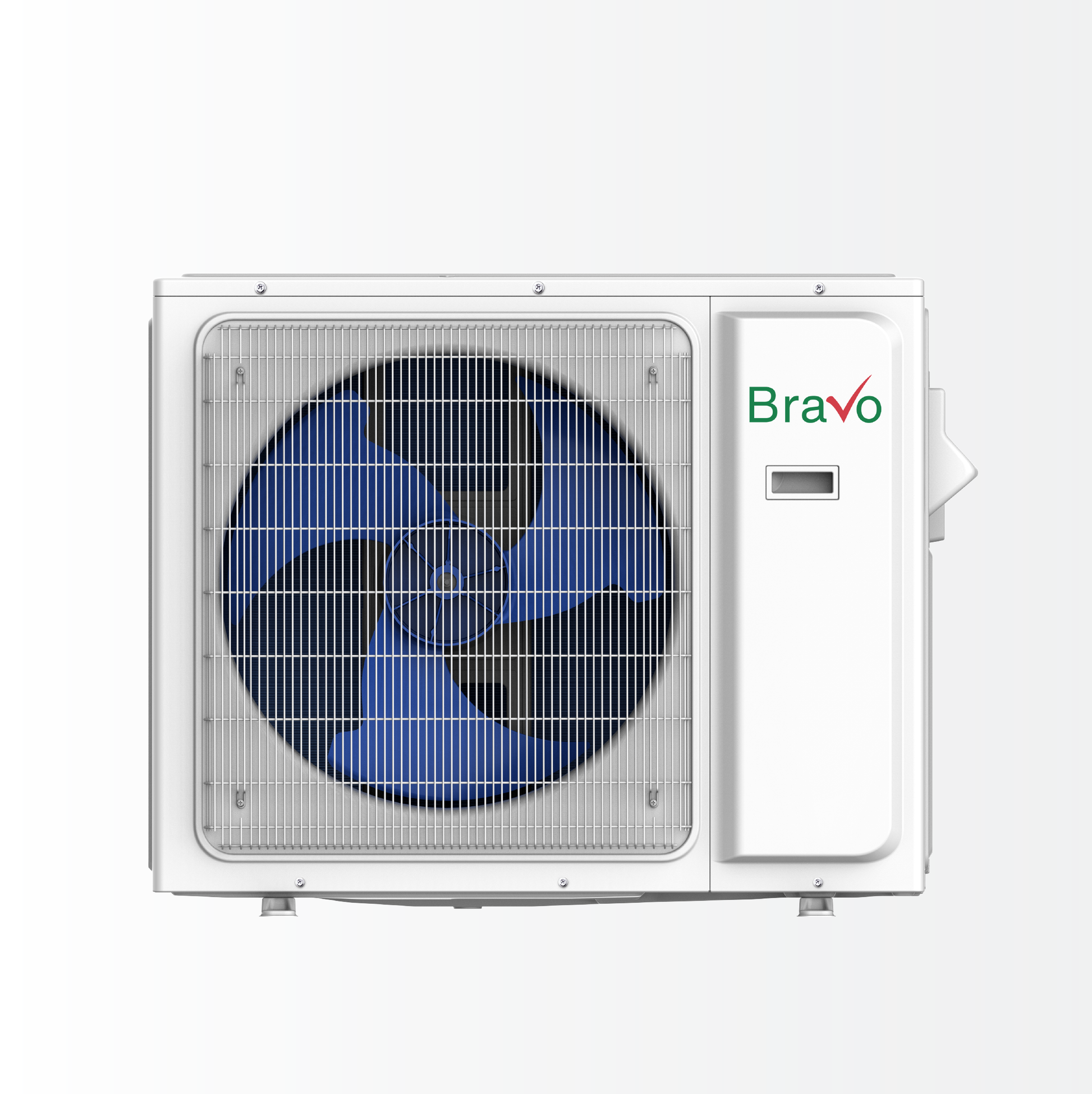

BRAVO MILANO Bravo Milano Multi-Zone Outdoor Condenser Unit — 24,000 BTU 230V, SEER2 23, Ductless Mini Split Heat Pump, Inverter, Heating & Cooling
Product Overview
Multi-zone outdoor heat pump condenser for compatible Bravo Milano indoor units (wall-mount, cassette, slim duct). 24,000 BTU 230V inverter system, rated up to 23 SEER2 for efficient heating and cooling across 2–3 zones.
2–3 Zone Multi-Zone System 24,000 BTU Capacity 23 SEER2 Efficiency 230V Power Supply Outdoor SKU: BRV-M24-230VO R32 Refrigerant
Contact us for custom quotes & questions, or call 800-543-8933.
Performance Features
- Inverter technology for smooth, efficient modulation
- High SEER2 efficiency (up to 23) for reduced energy usage
- All-season heat pump operation (heating & cooling)
- Supports 2–3 indoor zones for flexible design
- Compatible with multiple indoor unit types (wall, cassette, slim duct)
- Quiet outdoor operation for residential or light commercial use
- Durable, weather-resistant outdoor casing
- Smart control capable when paired with compatible indoor units
- Fast and easy installation with matched Bravo Milano components
At-a-Glance
| System type | Multi-zone outdoor unit (2–3 zones) |
|---|---|
| Outdoor btu | 24,000 BTU |
| seer2 | 23 |
| Power source | 208–230V, 1Ph, 60Hz |
| Refrigerant | R32, 51.2 oz charge |
| Operating range | Cooling: -13~125.6°F Heating: -13~75.2°F |
What’s Included
- Outdoor unit — BRV-M24-230VO (24,000 BTU 230V Bravo Milano multi-zone outdoor condenser)
- Installation manual
- User’s manual
- Manufacturer limited warranty
Optional installation kit (required for operation): includes pre-flared 99% copper lines, data communication wires, PVC drainage attachment, wrapping bands, and related accessories when purchased.
Available Capacities
| Capacity | SKU |
|---|---|
| 18,000 BTU | BRV-M18-230VO |
| 24,000 BTU | BRV-M24-230VO |
| 30,000 BTU | BRV-M30-230VO |
| 36,000 BTU | BRV-M36-230VO |
| 42,000 BTU | BRV-M42-230VO |
Warranty
- 3 year compressor limited warranty
- 3 year parts limited warranty (must be installed by a licensed HVAC technician)
Registration is required within 60 days of installation and can be completed online or by phone. See manufacturer documentation for full terms and conditions.
Technical Specifications — BRV-M24-230VO
| System type | Multi-zone unit (2–3 zones) |
|---|---|
| BTU capacity range | 4,900 – 31,400 BTU |
| Power source | 208–230V, 1Ph, 60Hz |
| seer2 rating | 23 |
| Refrigerant type | R32 |
| Refrigerant volume | 51.2 oz |
| Operating temperature range (cooling) | -13~125.6°F |
| Operating temperature range (heating) | -13~75.2°F |
| Outdoor sound level | 57 dB(A) |
| Max refrigerant pipe length | 98 ft |
| Dimensions (W×D×H) | 38.58 × 15.28 × 27.56 in |
| Net / gross weight | 102.5 / 109.1 lbs |
Compatible Indoor Units — BRV-M24-230VO
Compatible Bravo Milano indoor unit types include wall-mount, cassette, and slim duct models.
Indoor Unit Specifications
| Model | Capacity (BTU) | Dimensions (W×D×H) | Noise level | Air flow (CFM) |
|---|---|---|---|---|
| BRV-M09WM-230VI | 9,000 | 31.02 × 11.50 × 7.80 in | 40 dB(A) | 353 |
| BRV-M12WM-230VI | 12,000 | 34.49 × 11.73 × 7.64 in | 42 dB(A) | 353 |
| BRV-M18WM-230VI | 18,000 | 38.82 × 12.40 × 8.86 in | 49 dB(A) | 618 |
| BRV-M24WM-230VI | 24,000 | 44.13 × 12.95 × 9.09 in | 50 dB(A) | 765 |
Zone Combinations
| 2 zones | 3 zones |
|---|---|
| 9K + 9K | 9K + 9K + 9K |
| 9K + 12K | 9K + 9K + 12K |
| 12K + 12K | 9K + 9K + 18K |
| 12K + 18K | 9K + 12K + 12K |
| 12K + 12K + 12K |
Important Installation Notes
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone.
The installation kit is necessary for the system to function. This kit includes pre-flared 99% copper lines, data communication wires, PVC drainage attachment, wrapping bands, and related hardware.
Full Description
Expand
The Bravo Milano Multi-Zone Outdoor Condenser Unit is a high-efficiency, all-season solution designed for use with compatible Bravo Milano indoor units, including wall-mounted, ceiling cassette, and slim duct types. With capacities ranging from 9,000 to 24,000 Btu/h and a 23 SEER2 rating, this 230V outdoor heat pump delivers powerful heating and cooling for multiple zones while keeping energy consumption low.
Inverter technology automatically adjusts performance to maintain steady indoor temperatures and maximize efficiency. Its durable, weather-resistant construction ensures reliable performance across a wide outdoor temperature range, and the quiet operation makes it suitable for residential homes or light commercial applications.
Whether you are upgrading an existing mini split system or designing a custom multi-zone layout, the Bravo Milano outdoor condenser offers flexible compatibility, dependable comfort, and straightforward installation when paired with matching Bravo Milano indoor units and accessories.
