BRAVO MILANO — Ceiling Cassette

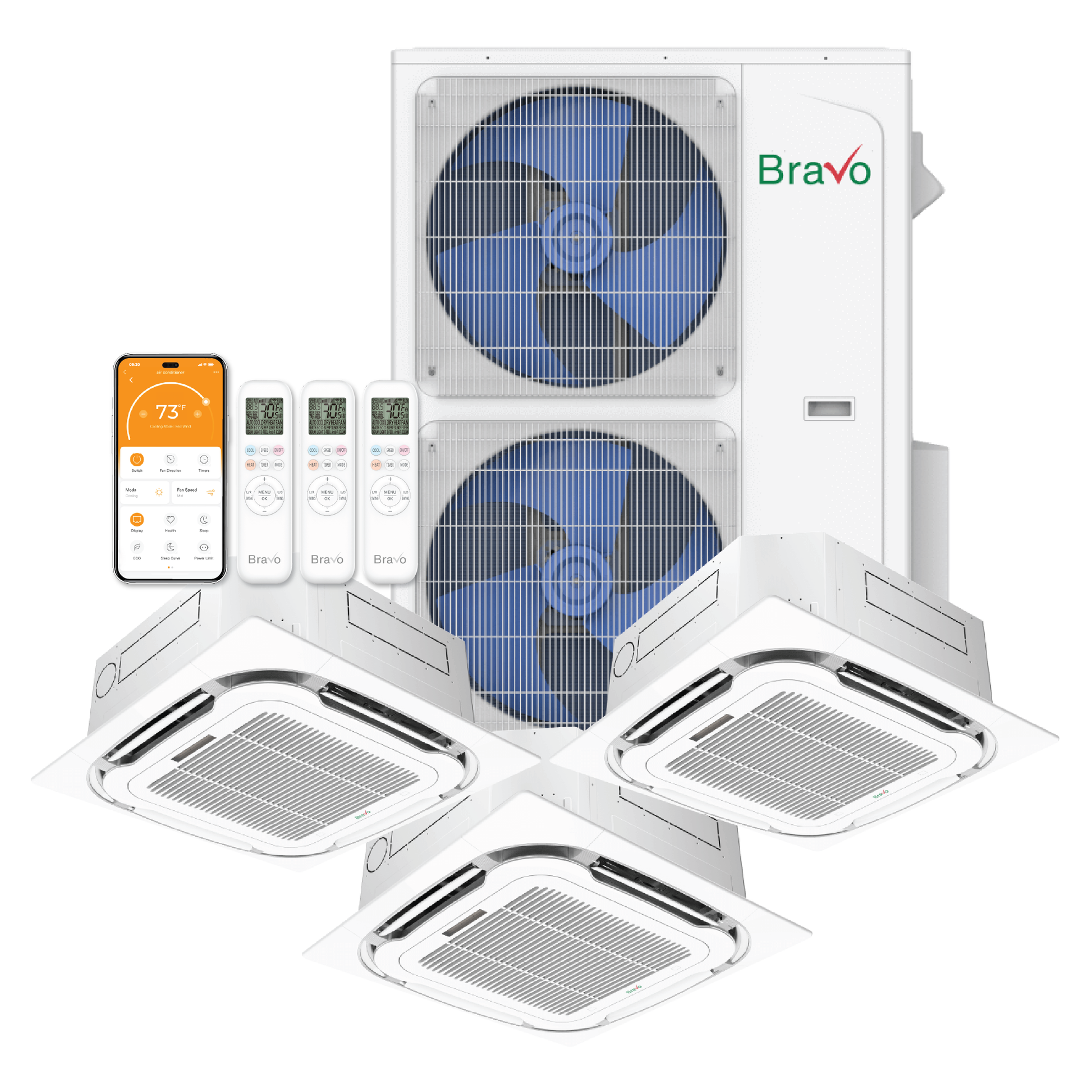

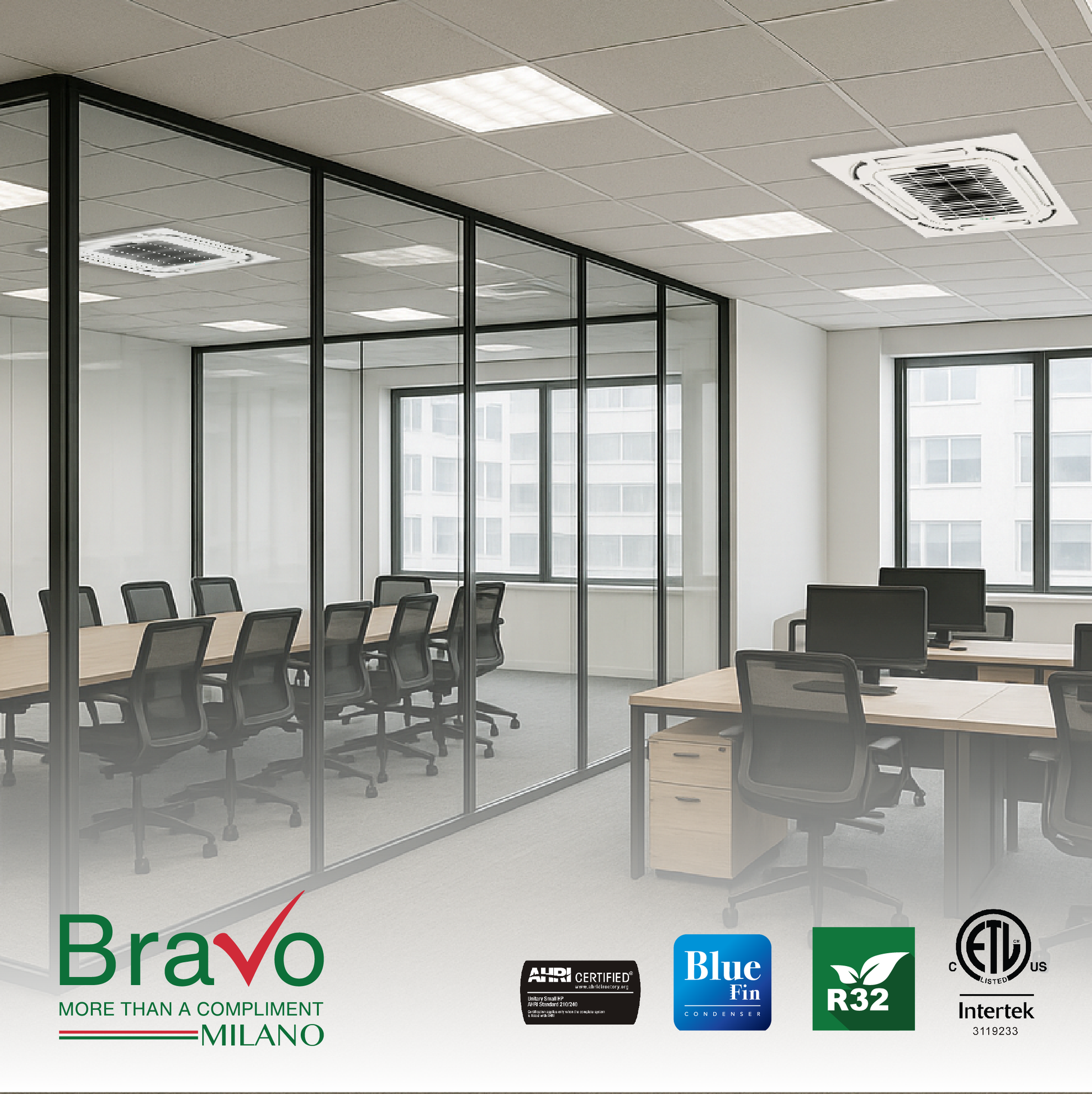

Bravo 3-Zone Ductless Mini Split AC & Heat Pump 42000 BTU (18K+18K+24K), Ceiling Cassettes Units, 230V
Ceiling cassette indoor unit for discreet, in-ceiling comfort. Configuration: BRV-M42-230VO + 2X BRV-M18CT-230VI + BRV-M24CT-230VI. Outdoor capacity 42000 BTU. SEER2 up to 24.
Ceiling Cassette
3 Zone(s)
42000 BTU Outdoor
Outdoor SKU BRV-M42-230VO
Zone capacity 3
Performance features

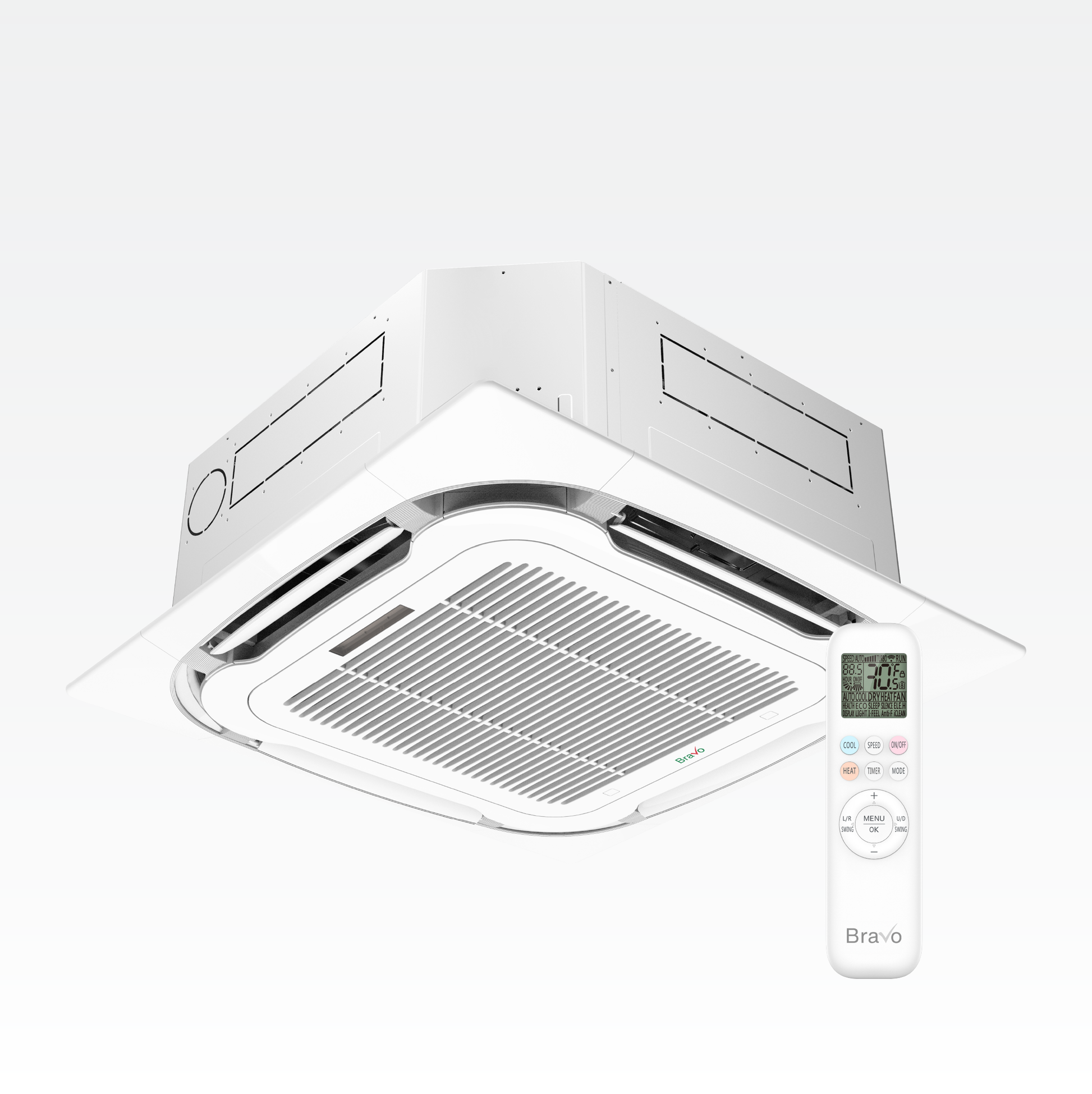

- Ceiling-mounted cassette with low-profile grille
- 360° 4-way airflow for even room coverage
- Whisper-quiet operation for offices and bedrooms
- Optimized for multi-zone compatibility
- R32 refrigerant for lower environmental impact
- Built-in Smart App connectivity for remote control
- Wireless remote control included
- Eco, Super, and Sleep modes
- Auto-swing, multiple fan speeds, and 24-hour timer
- Self-cleaning anti-mildew setting to help keep air fresh
- LED status display and auto restart after power interruption
At-a-glance
Zoning
3 rooms
3 rooms
Outdoor BTU
42000
42000
SEER2
24
24
Outdoor SKU
BRV-M42-230VO
BRV-M42-230VO
What’s included
- 18,000 BTU (x2) — Model: BRV-M18CT-230VI
- 24,000 BTU (x1) — Model: BRV-M24CT-230VI
- Outdoor Condenser — BRV-M42-230VO
- Optional pre-flared 99% copper install kit (If you do not select a length above, and you select (NO INSTALLATION KIT) option, the order will not include any copper linesets, or communication wires which are required for installation.)
- Wireless remote(s), installation manual, user manual
Licensed HVAC installation required for warranty. Register within 60 days if required.
Technical specifications — Indoor
Indoor Unit Specifications — BRV-M18CT-230VI
| Voltage range (V) | 165-264 |
|---|---|
| Unit dimensions (WxDxH) | 22.44×22.44×10.24 |
| System type | Multi-zone unit |
| SEER2 up to | / |
| Refrigerant type | R32 |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/1/2" |
| Power source | 208-230V, 1Ph, 60Hz |
| Packing dimensions (WxDxH) | 28.35×25.59×11.42 |
| Operation room temperature Heating (F) | 50~89.6 |
| Operation room temperature Cooling (F) | 60.8~89.6 |
| Net/Gross weight (lb) | 33.1/38.6 |
| Minimum circuit ampacity (A) | / |
| Max. fuse (A) | 5 |
| Indoor noise level (Hi/Med/Lo) (dB) | 45/41/38 |
| Indoor Airflow (Turbo/Hi/Mi/Lo) (CFM) | 442 |
| Filter dimensions (WxDxH) (inch) | 13.11*15.04*0.472inch |
| ESP | / |
| EER2 up to | / |
| Drainage water pipe diameter (inch) | 5/8" |
| Dehumidification (Pnt/H) | 3.38 |
| Controller | wired controller |
| BTU Rated | 18,000 |
Indoor Unit Specifications — BRV-M24CT-230VI
| Voltage range (V) | 165-264 |
|---|---|
| Unit dimensions (WxDxH) | 33.07×33.07×9.69 |
| System type | Multi-zone unit |
| SEER2 up to | / |
| Refrigerant type | R32 |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/5/8" |
| Power source | 208-230V, 1Ph, 60Hz |
| Packing dimensions (WxDxH) | 35.83×35.83×12.20 |
| Operation room temperature Heating (F) | 50~89.6 |
| Operation room temperature Cooling (F) | 60.8~89.6 |
| Net/Gross weight (lb) | 52.9/61.7 |
| Minimum circuit ampacity (A) | / |
| Max. fuse (A) | 5 |
| Indoor noise level (Hi/Med/Lo) (dB) | 47/46/43 |
| Indoor Airflow (Turbo/Hi/Mi/Lo) (CFM) | 824 |
| Filter dimensions (WxDxH) (inch) | 20.94*22.05*0.945inch |
| ESP | / |
| EER2 up to | / |
| Drainage water pipe diameter (inch) | 5/8" |
| Dehumidification (Pnt/H) | 5.43 |
| Controller | wired controller |
| BTU Rated | 24,000 |
Manuals
- https://api.acbravo.com/storage/3718/Owner-Manual---Bravo-Milano-Cassette.pdf
- https://api.acbravo.com/storage/3720/Remote-Manual---Bravo-Milano.pdf
- https://api.acbravo.com/storage/3721/SMART-App-Manual---Bravo-Milano.pdf
Documents
Technical specifications — Outdoor

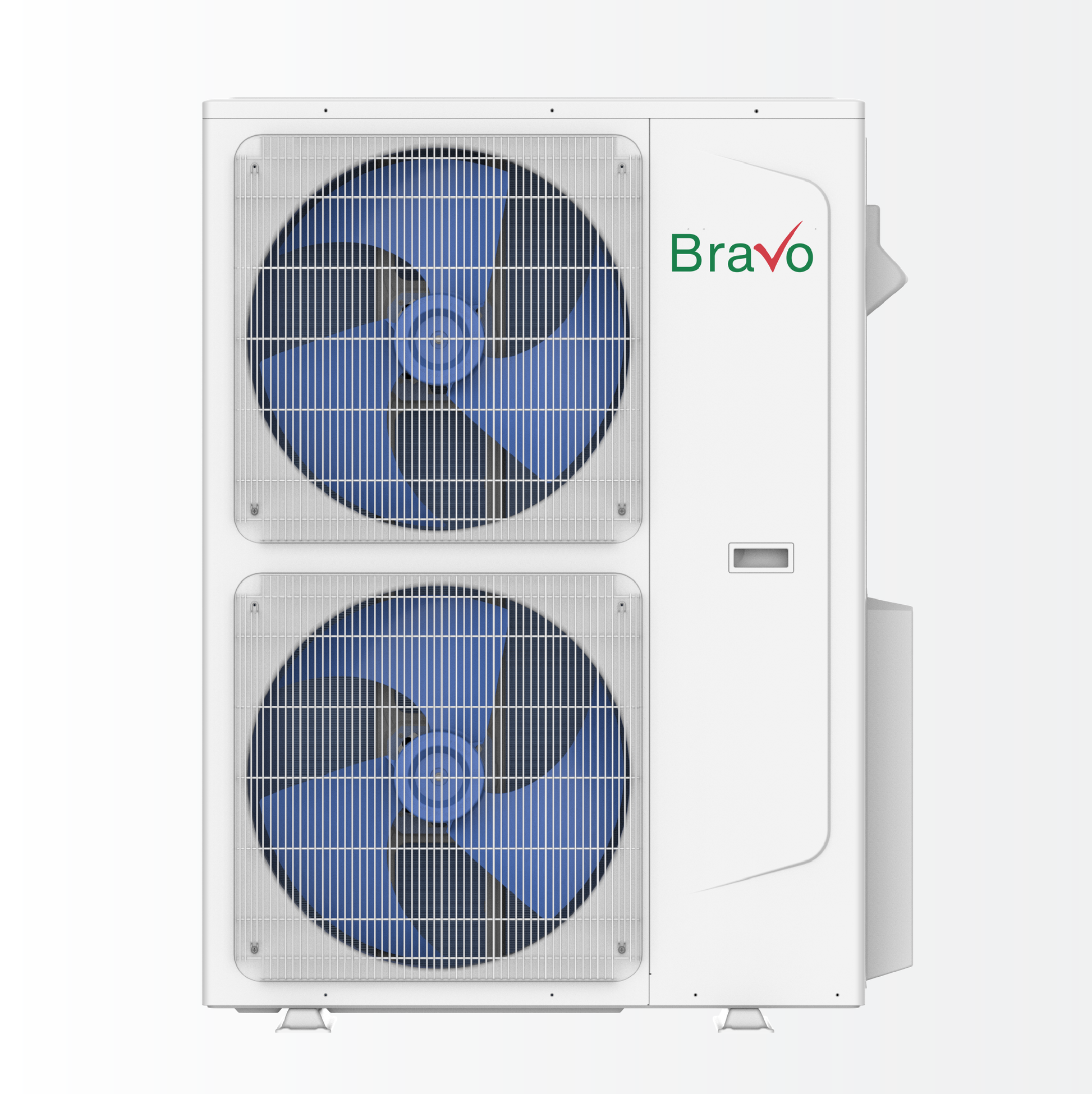

Outdoor Unit Specifications — BRV-M42-230VO
| Voltage range (V) | 165-264 |
|---|---|
| Unit dimensions (WxDxH) | 39.80x15.75x51.97 |
| System type | Multi-zone unit |
| SEER2 up to | 24/22/23 |
| Refrigerant type | R32 |
| Refrigerant precharge (ft) | Average 24.6 |
| Refrigerant piping Liquid/Gas side (inch) | 5x1/4"- 5x3/8" |
| Power source | 208-230V, 1Ph, 60Hz |
| Packing dimensions (WxDxH) | 42.52x16.93x56.69 |
| Outdoor noise level (dB) | 60 |
| Outdoor air flow (CFM) | 4,235 |
| Net/Gross weight (lb) | 205.0/224.9 |
| Minimum circuit ampacity (A) | 32 |
| Max. fuse (A) | 45 |
| Max height difference between Indoor and Outdoor unit | 49 |
| HSPF2-5 | 8/7.2/7.6 |
| HSPF2-4 | 10.5/10/10.25 |
| Heating capacity (Min/Max) (Btu/h) | 42,000 (8,450-46,000) |
| EER2 up to | 12.5/12.3/12.4 |
| Dehumidification (Pnt/H) | / |
| COP | 3.9/3.9/3.9 |
| Cooling capacity (Min/Max) (BTU/h) | 42,000 (8,350-46,000) |
| BTU Rated | 42,000 |
| Ambient temperature - Heating (F) | -22~75 |
| Ambient temperature - Cooling (F) | -13~125 |
| Additional Refrigerant Charge 3/8 liquid line | / |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Manuals
Documents
Important
The installation kit is required for operation. It includes pre-flared copper lines, data communication wires, PVC drainage attachment, and wrapping bands.
Full description
Expand
Designed for subtle integration and efficient zone conditioning, the 3 Bravo Milano Ceiling Cassette Unit brings premium comfort to compact spaces without compromising ceiling aesthetics. It excels where wall space is limited and reliable climate control is essential.
Ideal for private offices, small bedrooms, boutique retail, and study areas, the cassette fits seamlessly into multi-zone systems so you can condition individual rooms without sacrificing design or space. Utilizing eco-conscious R32 refrigerant, it supports energy-efficient operation while reducing environmental impact.
Control is simple with the included wireless remote and built-in Smart App connectivity. The 360° 4-way airflow distributes air evenly to eliminate hot and cold spots. Key modes include Eco, Super, and Sleep, plus multiple fan speeds, auto-swing, a 24-hour timer, and a self-cleaning anti-mildew setting to help keep air fresh.
With its low-profile grille and LED status display, the 3 Bravo Milano Cassette delivers dependable performance while blending discreetly into the ceiling. Bravo: More Than a Compliment — It’s Smart Comfort Made Simple.
