Bravo • Pisa Series • 24,000 BTU • Single Zone Heat Pump • R32 • 208-230V
Bravo Pisa Series 24,000 BTU Single Zone Heat Pump System with Ceiling Cassette, 208-230V
SKU: BRV-P24LS-230VO + BRV-P24CT-230VI
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US (800) 543-8933 FOR ANY QUESTIONS
Overview
The Bravo Pisa Series 24,000 BTU heat pump system pairs the BRV-P24LS-230VO outdoor unit with the BRV-P24CT-230VI indoor unit to deliver dependable year-round comfort in a single-zone application. This pairing uses R32 refrigerant, operates on 208-230V, 1Ph, 60Hz, and is designed around a clean ceiling cassette layout for rooms where wall space is limited.
With up to 22.0 SEER2, up to 9.5 EER2, and listed heating operation down to -4~75°F, this system gives contractors and homeowners a compact option for efficient cooling and heating. Pairing, electrical requirements, drainage, and line set sizing should be verified before installation.
Highlights
24,000 BTU class Single-zone system 208-230V, 1Ph, 60Hz R32 refrigerant 22.0 SEER2 9.5 EER2 Ceiling Cassette Remote Controller Max line length 65 ft Heating down to -4~75°F
- Single-zone comfort: One outdoor unit is paired with one indoor ceiling cassette for a dedicated zone.
- Efficient R32 performance: Rated up to 22.0 SEER2 and 9.5 EER2 in the provided specifications.
- Flexible indoor style: The Ceiling Cassette indoor unit is built for applications where a standard wall-mounted head is not the preferred fit.
- Control included: Includes a Remote Controller for system operation.
- Line set capability: Supports up to 65 ft maximum pipe length and 49 ft maximum level difference.
- Operating range: Outdoor cooling range is 5~127°F, and outdoor heating range is -4~75°F.
- Installation note: Installation kits are not included unless selected through the product variant options.

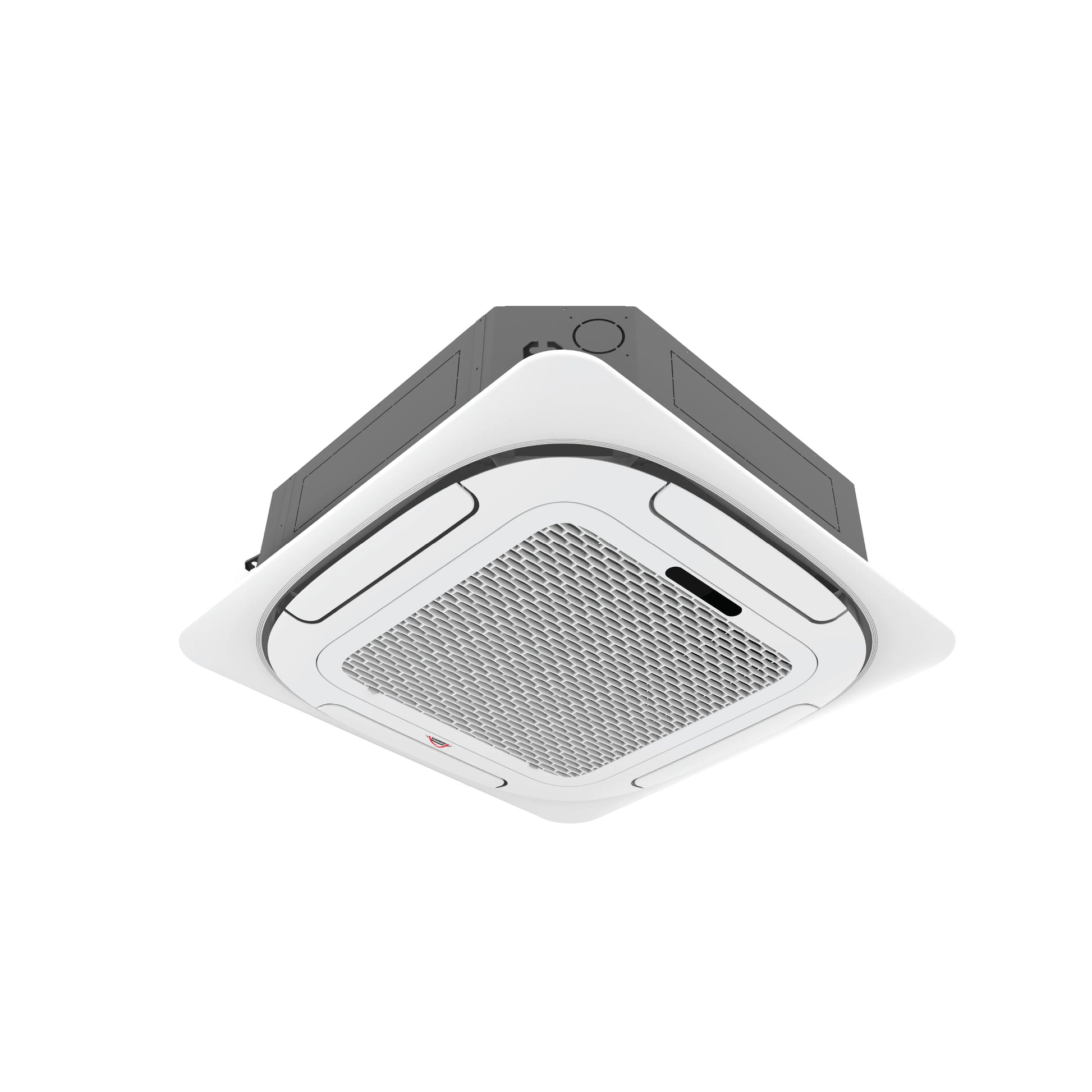

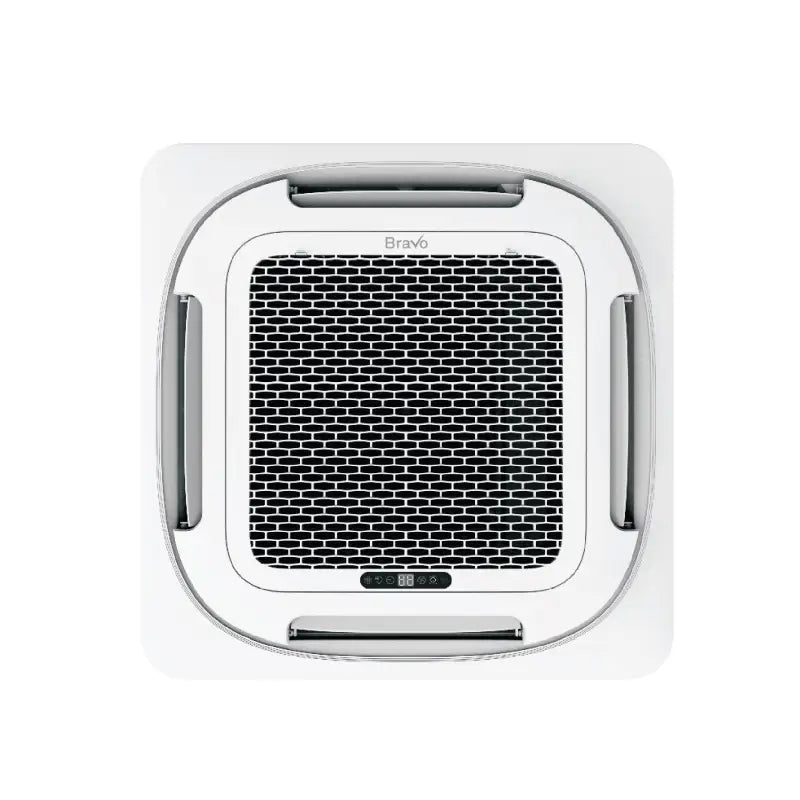

Indoor BRV-P24CT-230VI

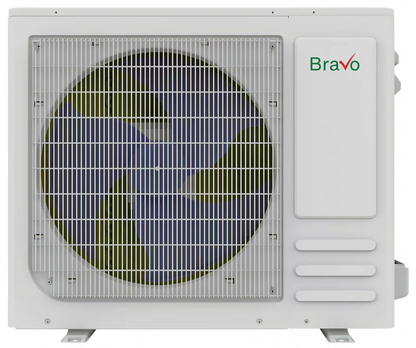

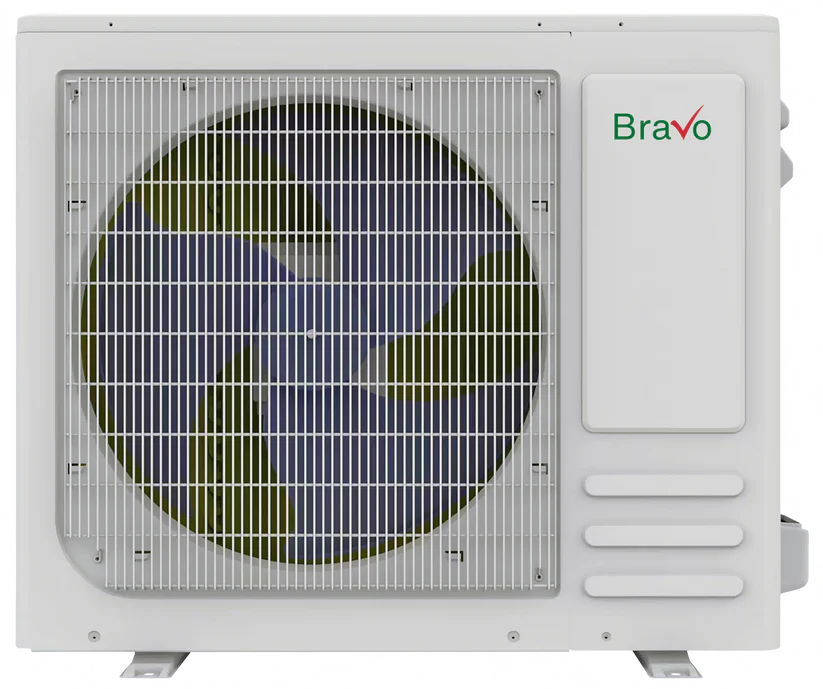

Outdoor BRV-P24LS-230VO
Voltage 208-230V, 1Ph, 60Hz
Refrigerant R32

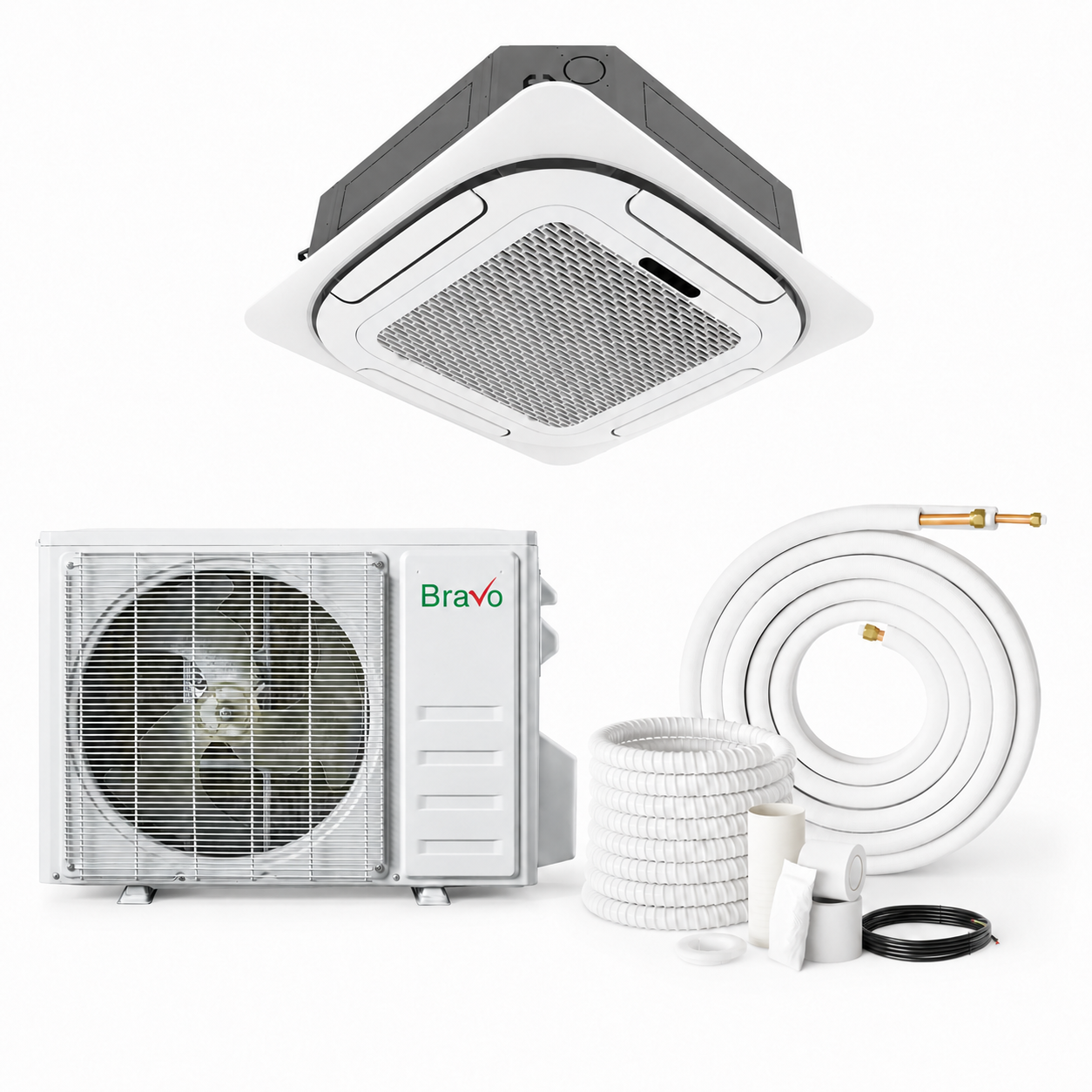

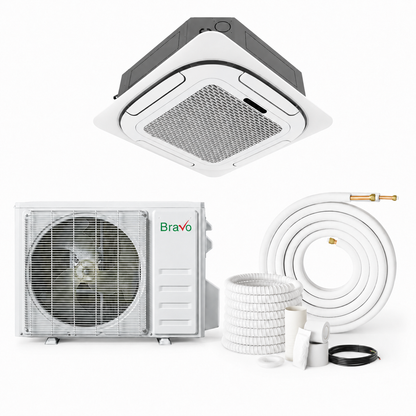

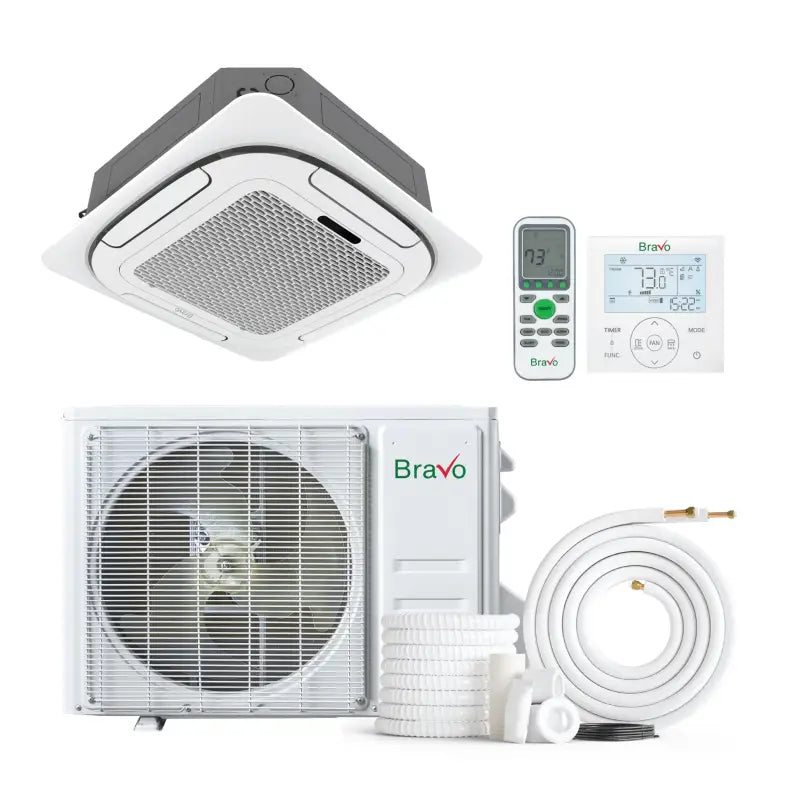

What's Included
- Indoor unit: BRV-P24CT-230VI
- Outdoor unit: BRV-P24LS-230VO
- Remote Controller
- Installation kits are not included unless selected through the product variant options.
Indoor Specs
| Spec | Details |
|---|---|
| Model | BRV-P24CT-230VI |
| Power supply | 208-230V, 1Ph, 60Hz |
| Voltage range | 187-253 |
| Communication wiring | AWG 16x4 |
| Cooling capacity | 24,000 (7550~25200) BTU/h |
| Cooling input | 2000 W |
| Cooling rated current | 8.7 A |
| Heating capacity at 47°F | 8700~28300 BTU/h |
| Heating input at 47°F | 1960 W |
| Heating rated current at 47°F | 8.5 A |
| EER2 | 9.5 |
| SEER2 | 22.0 |
| COP | 3.5 W/W |
| HSPF2-4 | 9.5 |
| HSPF2-5 | 9.4 |
| Indoor fan motor qty | 1 |
| Indoor fan motor output | 60 W |
| Indoor fan motor RLA | 0.26 A |
| Indoor airflow | 836/765/630/530/482 CFM |
| Indoor noise level | 51/48/44/40/37 dB |
| Dehumidification | 5.49 Pints/h |
| Drain connection | 0.63 |
| Refrigerant piping | 1/4 in. liquid, 1/2 in. gas |
| Controller | Remote Controller |
| Room temperature range, cooling | 62~89°F |
| Room temperature range, heating | 32~86°F |
| Filter dimensions | 40-3/8"x7-1/4"x1/8" |
| Panel dimensions | 37 -3/8"×37 -3/8"×1 -1/4" |
| Unit dimensions (W x D x H) | 33"×33"×10" |
| Packed dimensions (W x D x H) | 36 -3/4"×36 -3/4"×11 -3/8" |
| Net / gross weight | 51.8 lbs |
| Design pressure | 609/174 PSIG |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | BRV-P24LS-230VO |
| Power supply | 208-230V, 1Ph, 60Hz |
| Voltage range | 187-253 |
| Minimum circuit ampacity | 17 A |
| Maximum fuse | 25 A |
| Compressor model | C-6RZ180H3BAF |
| Compressor type | Rotary |
| Compressor brand | SANYO |
| Compressor capacity | 20199 BTU/h |
| Compressor input | 1410 W |
| Compressor rated current (RLA) | 6 A |
| Refrigerant oil / charge | 15.22 oz |
| Outdoor fan motor qty | 1 |
| Outdoor fan motor output | 85 W |
| Outdoor fan motor RLA | 0.37 A |
| Outdoor fan speed | 850 r/min |
| Outdoor airflow | 1412 CFM |
| Outdoor noise level | 60 dB |
| Throttle type | EEV |
| Refrigerant type | R32 |
| Refrigerant amount | 42.33/2.64 |
| Factory precharge | 25 ft |
| Additional charge for 1/4 in. liquid pipe | 0.11 oz |
| Refrigerant piping | 1/4 in. liquid, 1/2 in. gas |
| Maximum level difference | 49 ft |
| Maximum pipe length | 65 ft |
| Ambient range, cooling | 5~127°F |
| Ambient range, heating | -4~75°F |
| Unit dimensions (W x D x H) | 36 -1/8"×14 -3/4"×27 -1/2" |
| Packed dimensions (W x D x H) | 37 -3/8"×16 -1/2"×28 -7/8" |
| Net / gross weight | 88.2 lbs |
Documents & Downloads
- Contact us for current submittals, installation documents, and compatibility questions before ordering or installation.
Important
Professional installation is recommended. Verify electrical requirements, line set sizing, refrigerant charge, drainage, clearances, and local code requirements before installation. Installation kits are not included unless selected through the product variant options.
FAQs
What refrigerant does this Bravo Pisa system use?
This system uses R32 refrigerant.
What voltage does this system require?
208-230V, 1Ph, 60Hz.
Is this a single-zone system?
Yes, this pairing is a single-zone system with one indoor unit and one outdoor unit.
What type of indoor unit is included?
This listing includes a ceiling cassette indoor unit, model BRV-P24CT-230VI.
What controls are included?
This system includes a Remote Controller.
What is the maximum line set length?
Maximum pipe length is 65 ft, with a maximum level difference of 49 ft.
Is an installation kit included?
Installation kits are not included unless selected through the product variant options.
