BRAVO MILANO — Wall Mount (High-Wall)

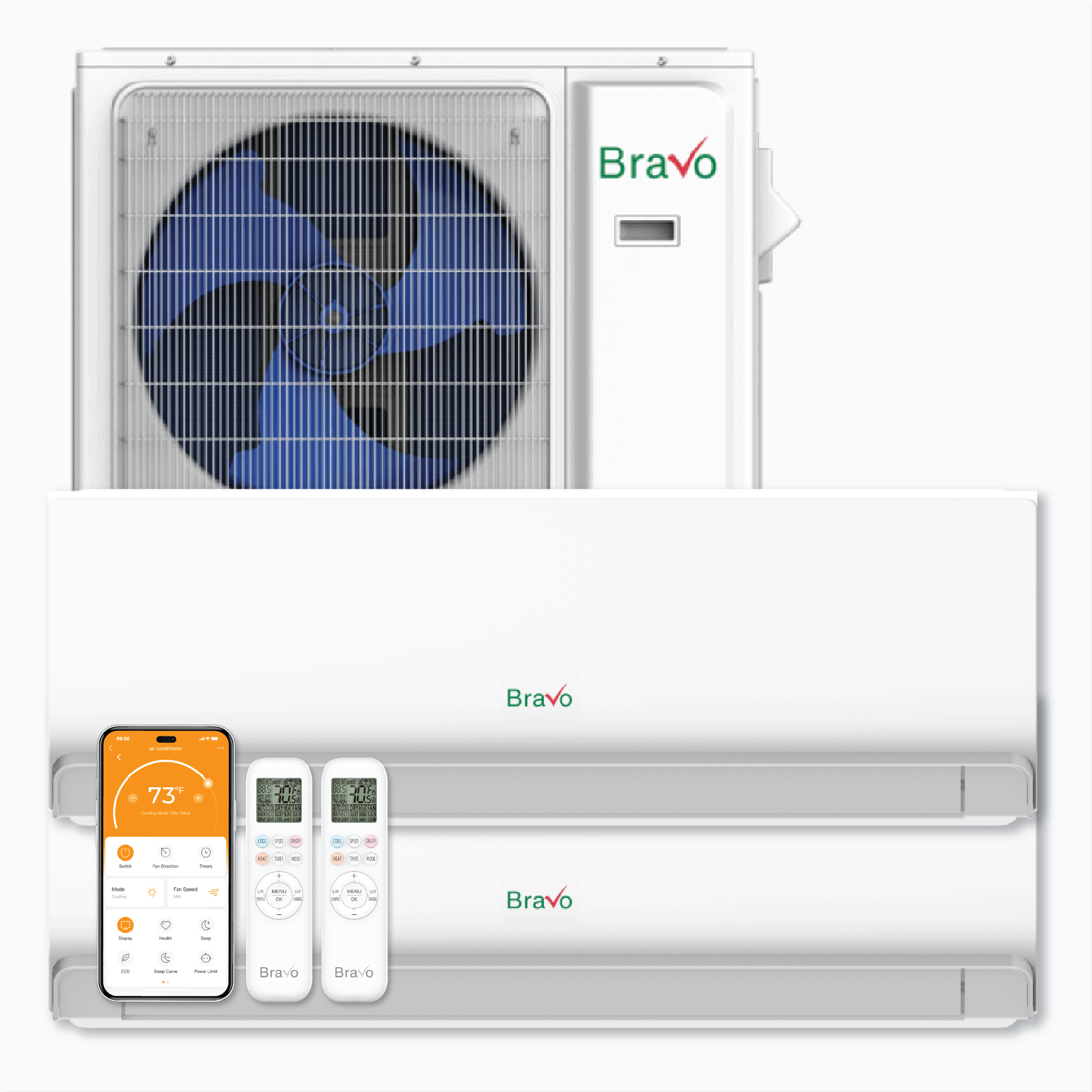

Bravo 2-Zone Ductless Mini Split AC & Heat Pump 18000 BTU (12K+12K), Wall Mount Units, 230V
High-wall indoor unit for single-room or multi-zone systems. Configuration: BRV-M18-230VO + 2X BRV-M12WM-230VI. Outdoor capacity 18000 BTU. SEER2 up to 22.
Wall Mount
2 Zone(s)
18000 BTU Outdoor
Outdoor SKU BRV-M18-230VO
Zone capacity: 2
Performance features

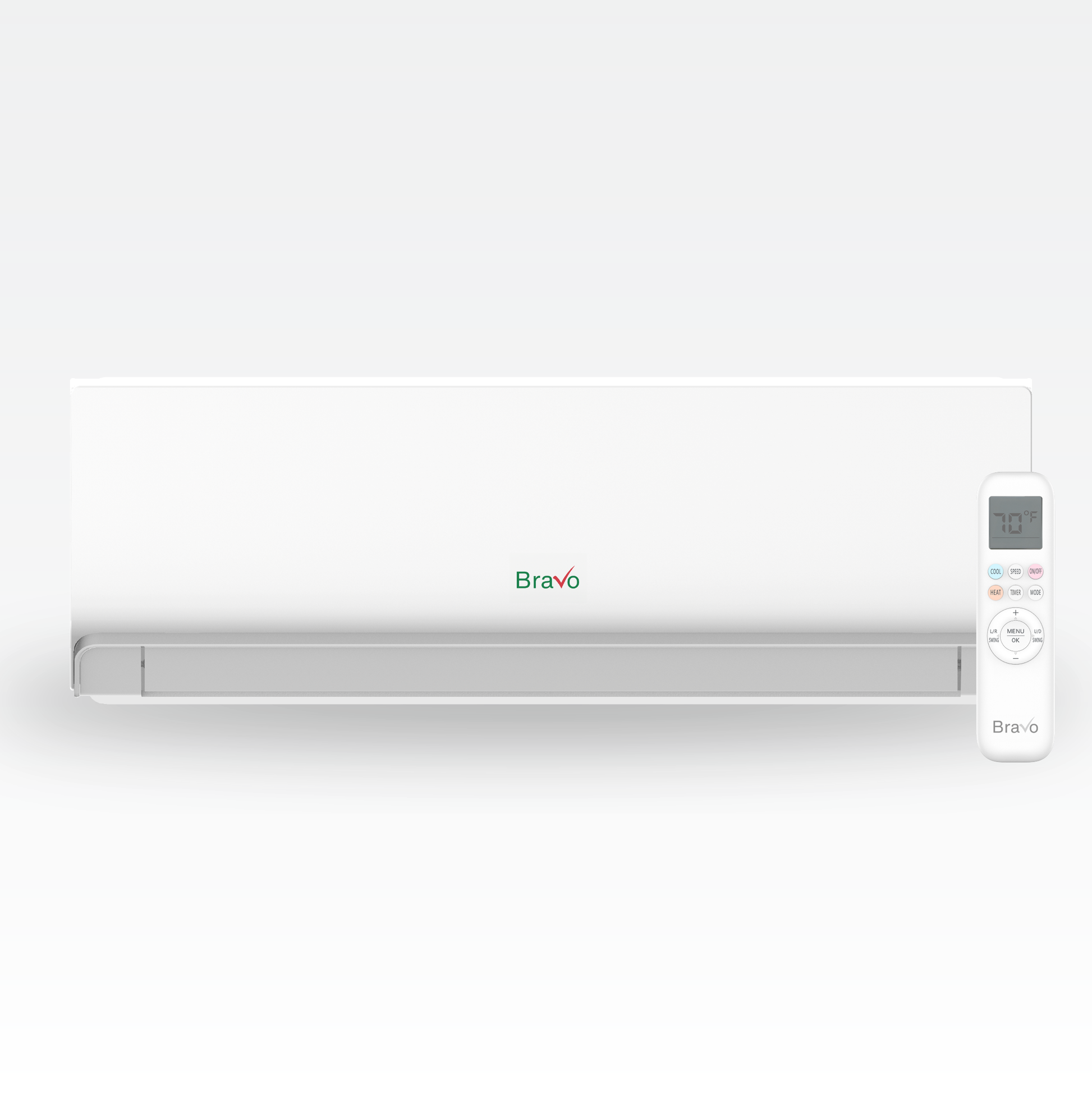

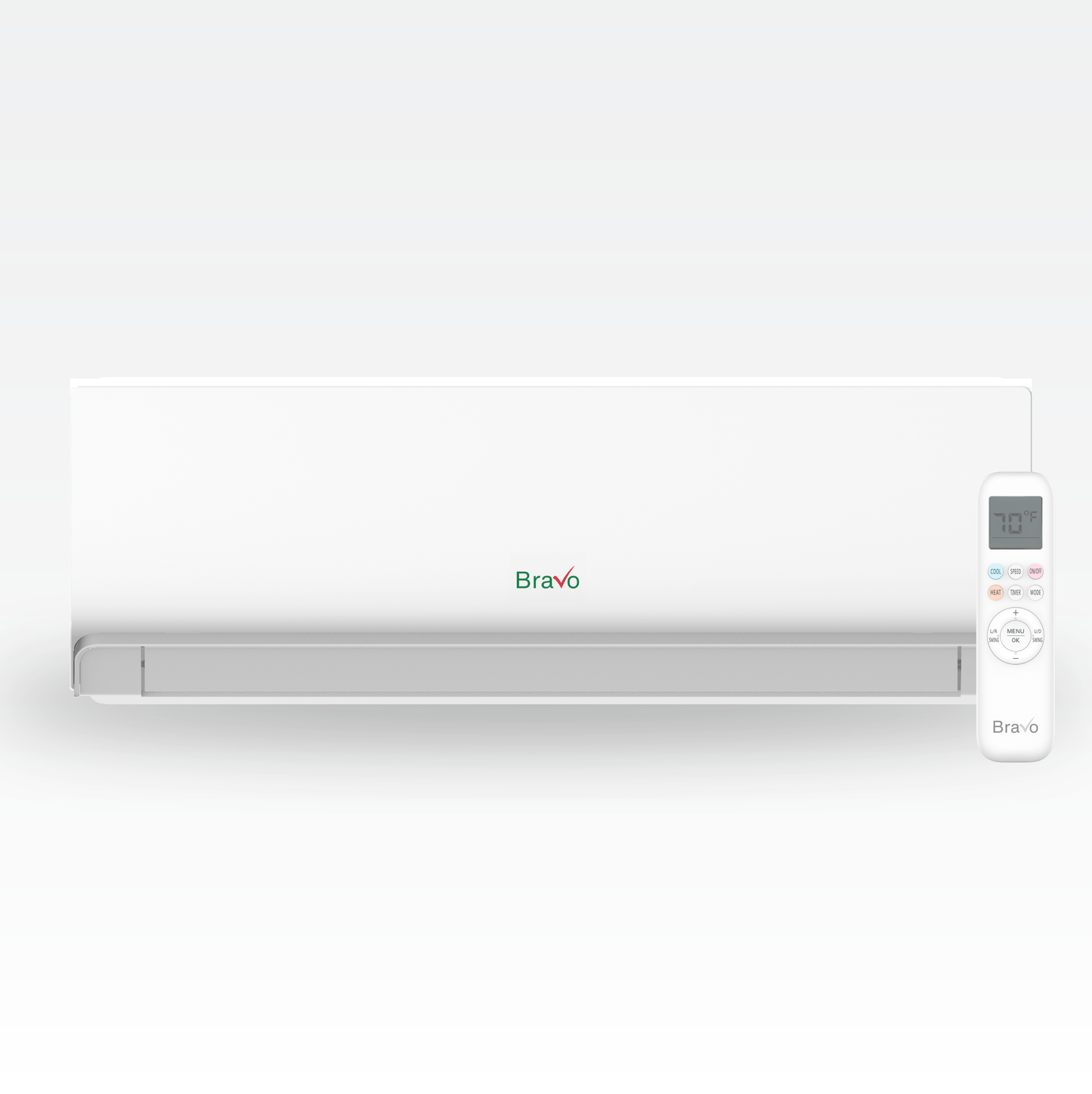

- High-wall indoor unit for targeted comfort
- Optimized for multi-zone compatibility
- R32 refrigerant for lower environmental impact
- Built-in Smart App connectivity for remote control
- Wireless remote control included
- Eco, Super, and Sleep modes
- Auto-swing louvers and multiple fan speeds
- 24-hour timer and anti-mildew dry function
- Quiet operation with intuitive LED display
- Auto restart after power interruption
At-a-glance
Zoning
2 rooms
2 rooms
Outdoor BTU
18000
18000
SEER2
22
22
Outdoor SKU
BRV-M18-230VO
BRV-M18-230VO

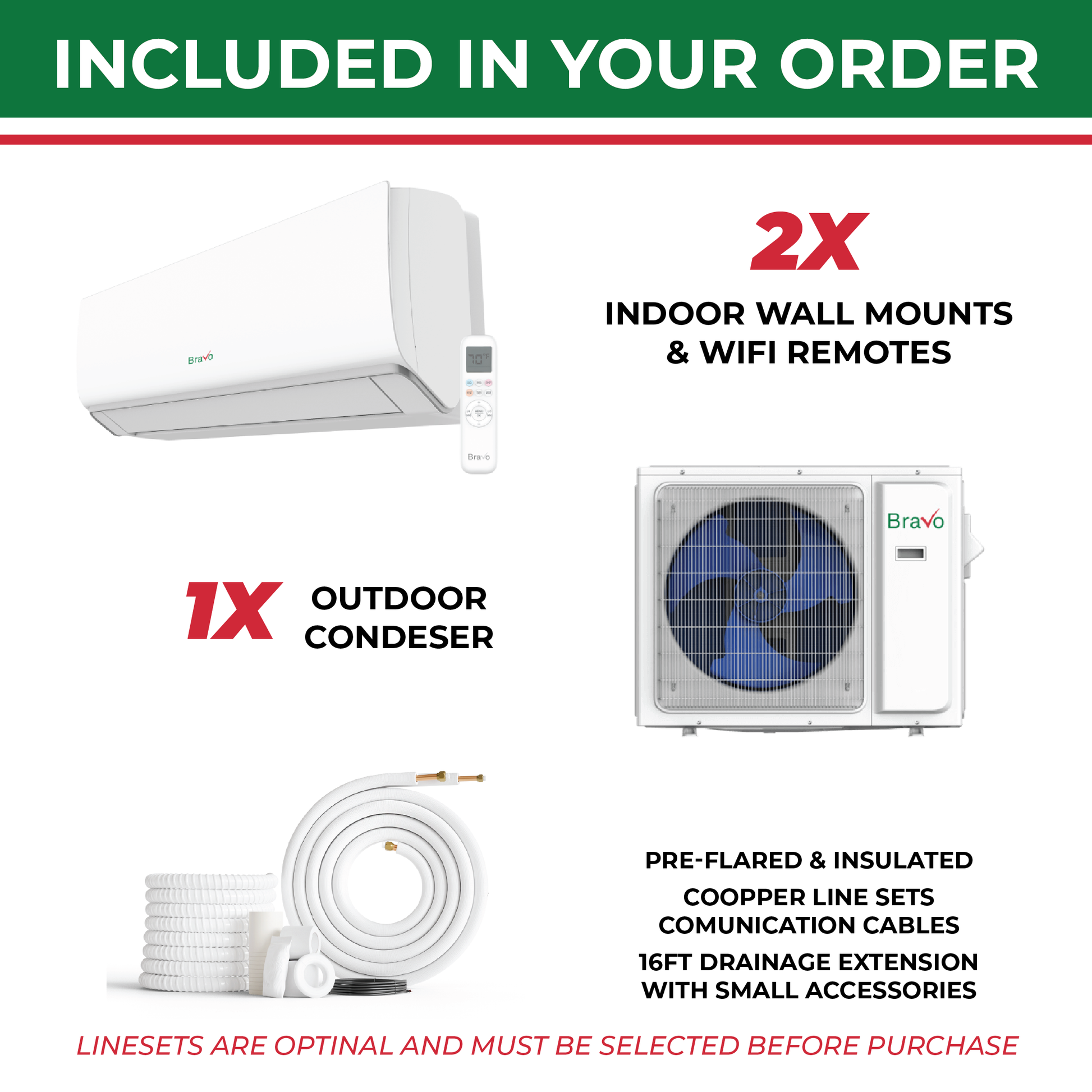

What’s included
- 12,000 BTU (x2) — Model: BRV-M12WM-230VI

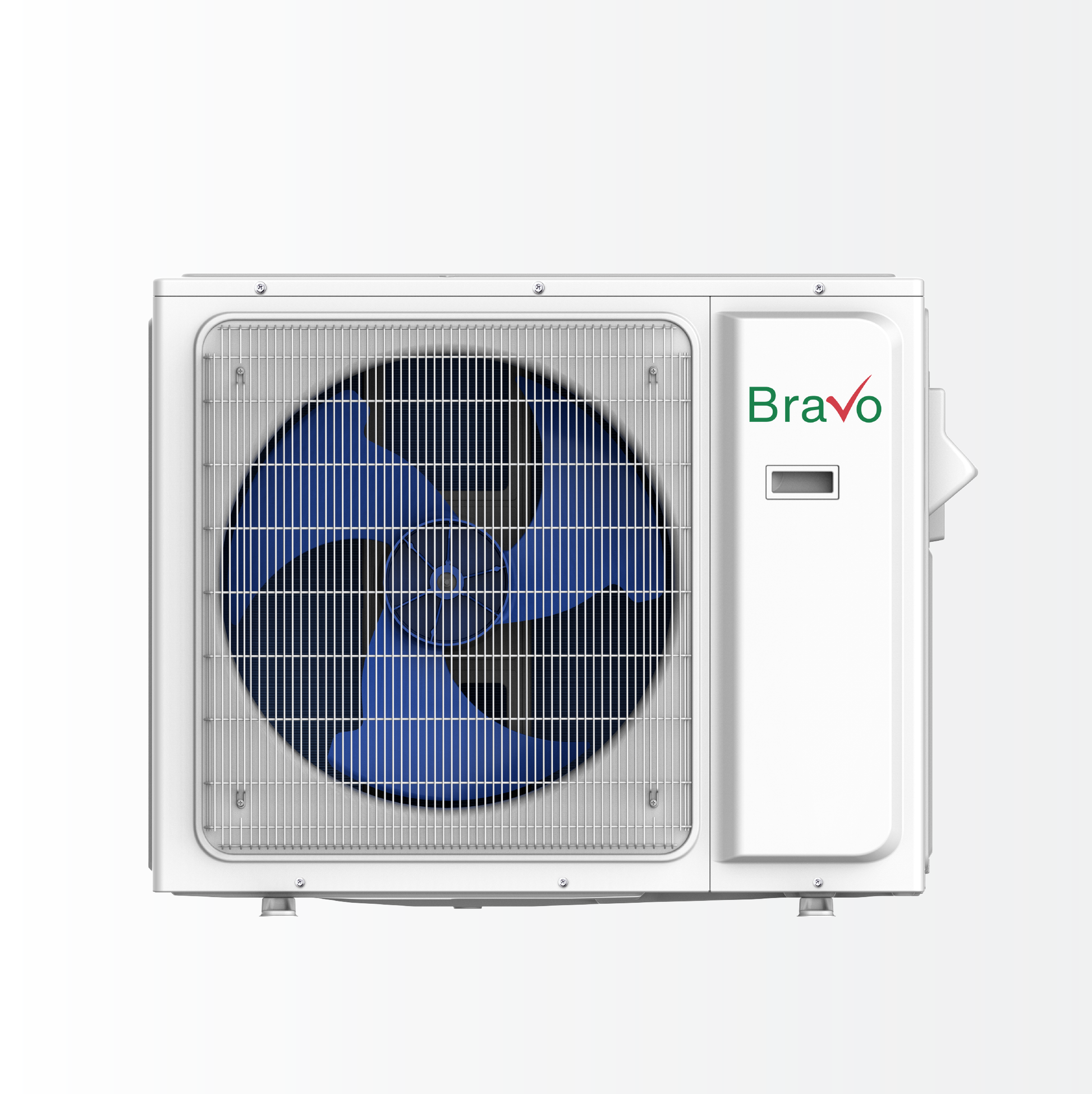

- Outdoor Condenser — BRV-M18-230VO
- Optional pre-flared 99% copper install kit (If you do not select a length above, and you select (NO INSTALLATION KIT) option, the order will not include any copper linesets, or communication wires which are required for installation.)
- Wireless remote(s), installation manual, user manual
Licensed HVAC installation required for warranty. Register within 60 days if required.
Technical specifications — Indoor
Indoor Unit Specifications — BRV-M12WM-230VI
| Voltage range (V) | 165-264 |
|---|---|
| Unit dimensions (WxDxH) | 34.49×11.73×7.64 |
| System type | Multi-zone unit |
| SEER2 up to | / |
| Refrigerant type | R32 |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/3/8" |
| Power source | 208-230V, 1Ph, 60Hz |
| Packing dimensions (WxDxH) | 37.99×14.57×11.1 |
| Operation room temperature Heating (F) | 50~89.6 |
| Operation room temperature Cooling (F) | 60.8~89.6 |
| Net/Gross weight (lb) | 19.80/24.27 |
| Minimum circuit ampacity (A) | / |
| Max. fuse (A) | 5 |
| Indoor noise level (Hi/Med/Lo) (dB) | 40/36/32 |
| Indoor Airflow (Turbo/Hi/Mi/Lo) (CFM) | 353 |
| Filter dimensions (WxDxH) (inch) | 2pcs (12.8*10.71*0.295inch) |
| ESP | / |
| EER2 up to | / |
| Drainage water pipe diameter (inch) | 5/8" |
| Dehumidification (Pnt/H) | 2.11 |
| Controller | Remote controller |
| BTU Rated | 12,000 |
Manuals
- https://api.acbravo.com/storage/3717/Owners-Manual---Bravo-Milano-Wall-mount.pdf
- https://api.acbravo.com/storage/3720/Remote-Manual---Bravo-Milano.pdf
- https://api.acbravo.com/storage/3721/SMART-App-Manual---Bravo-Milano.pdf
Documents
Technical specifications — Outdoor
Outdoor Unit Specifications — BRV-M18-230VO
| Voltage range (V) | 165-264 |
|---|---|
| Unit dimensions (WxDxH) | 34.65×13.90×21.93 |
| System type | Multi-zone unit |
| SEER2 up to | 22/19.5/20.75 |
| Refrigerant type | R32 |
| Refrigerant precharge (ft) | Average 24.6 |
| Refrigerant piping Liquid/Gas side (inch) | 2x1/4"- 2x3/8" |
| Power source | 208-230V, 1Ph, 60Hz |
| Packing dimensions (WxDxH) | 35.55×15.04×24.21 |
| Outdoor noise level (dB) | 54 |
| Outdoor air flow (CFM) | 1,529 |
| Net/Gross weight (lb) | 75.0/80.5 |
| Minimum circuit ampacity (A) | 15 |
| Max. fuse (A) | 20 |
| Max height difference between Indoor and Outdoor unit | 49 |
| HSPF2-5 | 8/7/7.5 |
| HSPF2-4 | 10/9.5/9.75 |
| Heating capacity (Min/Max) (Btu/h) | 18,000 (4,200-22,000) |
| EER2 up to | 12.3/11.8/12.05 |
| Dehumidification (Pnt/H) | / |
| COP | 3.8/3.9/3.85 |
| Cooling capacity (Min/Max) (BTU/h) | 17,700 (3,800-19,800) |
| BTU Rated | 18,000 |
| Ambient temperature - Heating (F) | -13~75 |
| Ambient temperature - Cooling (F) | -13~125 |
| Additional Refrigerant Charge 3/8 liquid line | / |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Manuals
Documents
Important

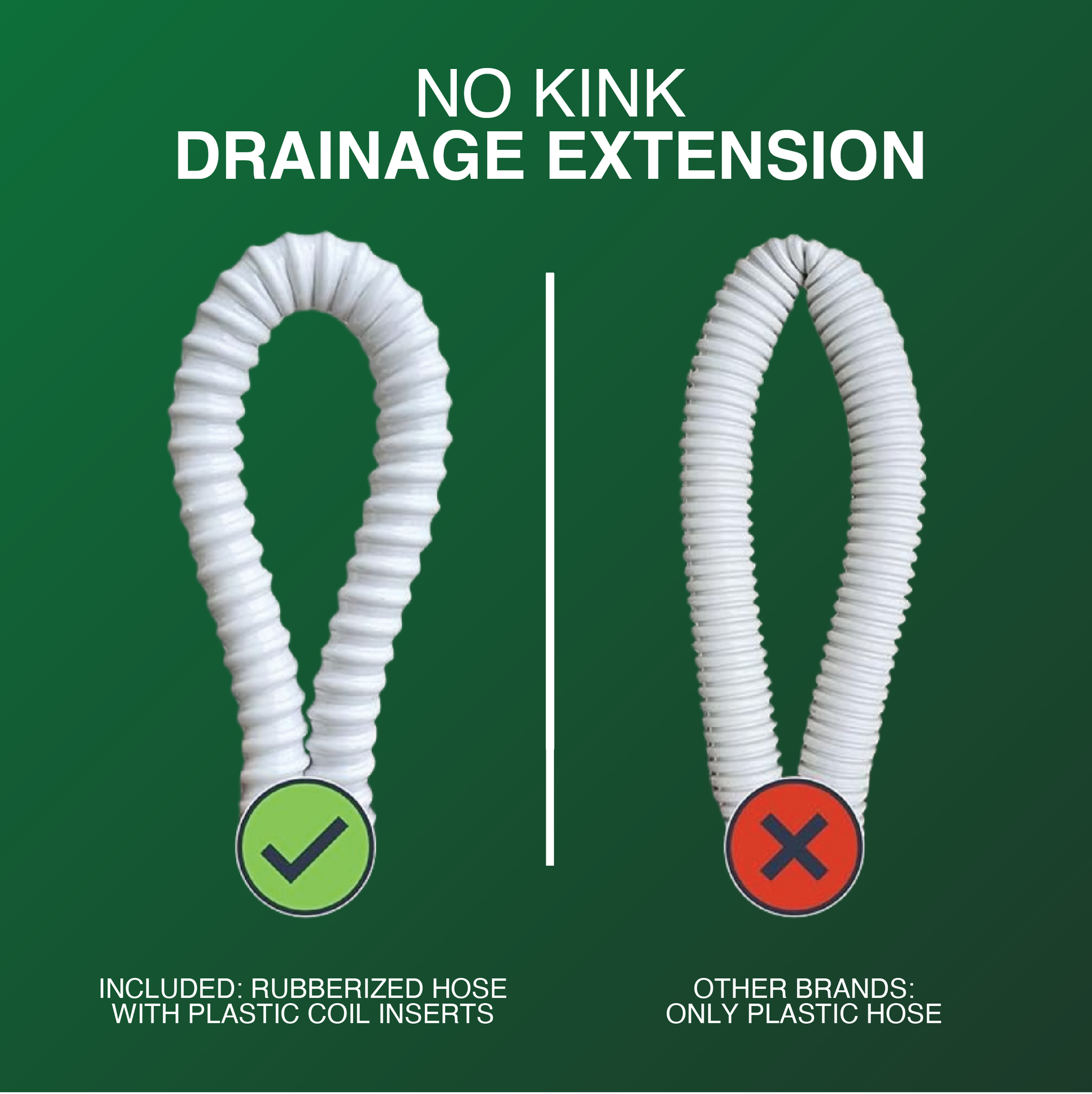

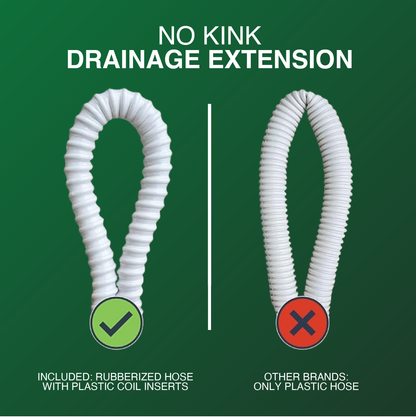

The installation kit is required for operation. It includes pre-flared copper lines, data communication wires, PVC drainage attachment, and wrapping bands.
Full description
Expand
Compact in size but big on performance, the 2 Bravo Milano Wall Mount Unit is a precise fit for targeted comfort in smaller spaces. Use it to upgrade a home office, guest bedroom, studio apartment, or a single room in a larger multi-zone setup.
Optimized for multi-zone systems, this high-wall unit uses R32 refrigerant for a more environmentally conscious solution without sacrificing efficiency. Control is flexible: use the included remote or manage settings from your phone or tablet with built-in Smart App connectivity.
Designed for everyday comfort, it includes Eco, Super, and Sleep modes, multiple fan speeds, auto-swing louvers, a 24-hour timer, and an anti-mildew function that helps keep the air feeling fresh. An intuitive LED display makes operation simple.
Whether you’re enhancing a cozy nook or supplementing a whole-home system, Bravo delivers performance and convenience in a modern, low-profile package. Bravo: More Than a Compliment — It’s Comfort with Purpose.
