BRAVO MILANO — Slim Duct (Concealed)
Bravo 2-Zone Ducted Mini Split AC & Heat Pump 18000 BTU (12K+12K), Slim Duct Units, 230V

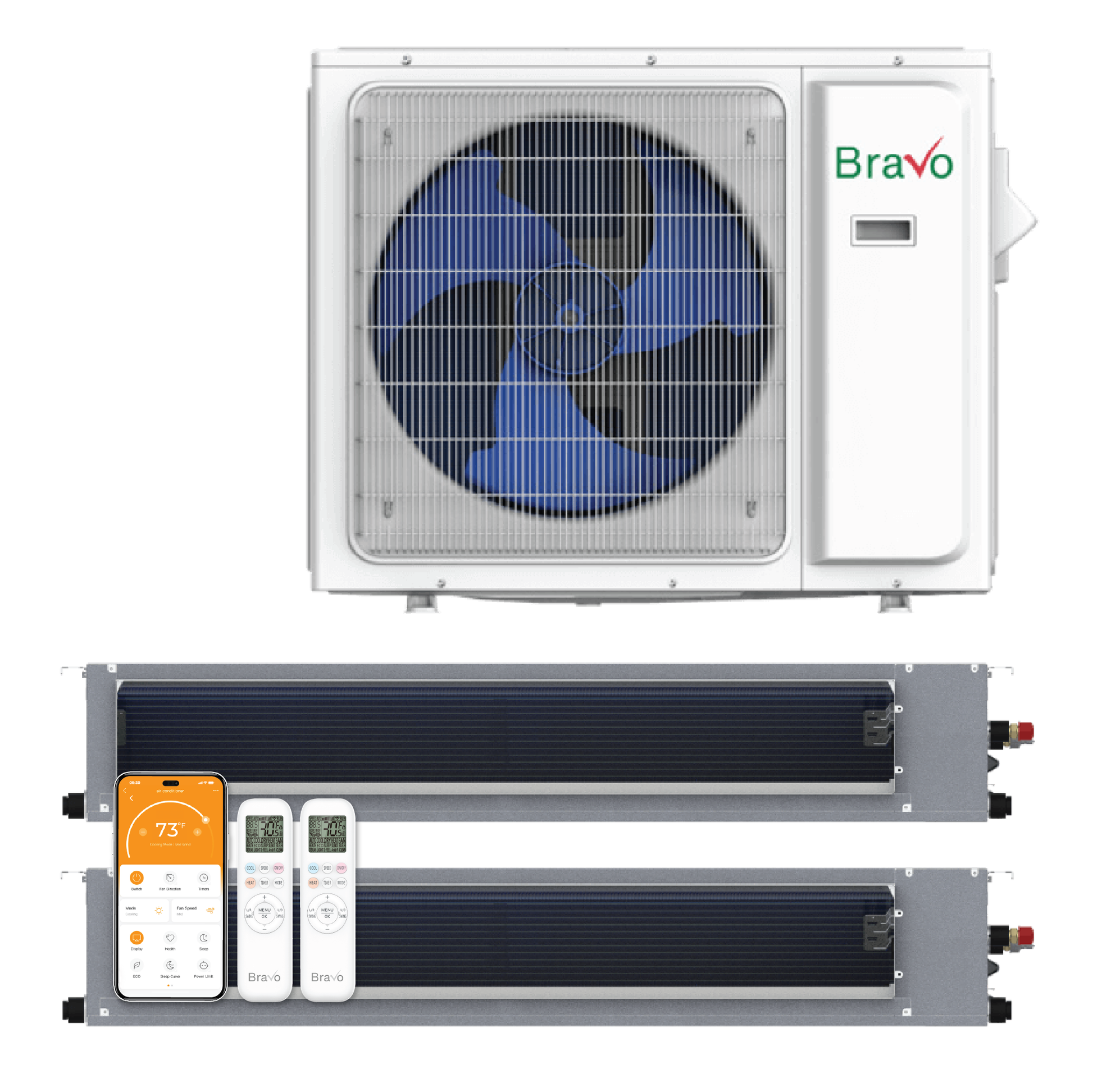

Concealed slim-duct indoor unit for out-of-sight comfort. Configuration: BRV-M18-230VO + 2X BRV-M12DT-230VI. Outdoor capacity 18000 BTU. SEER2 up to 22.
Slim Duct
2 Zone(s)
18000 BTU Outdoor
Outdoor SKU BRV-M18-230VO
Zone capacity 2
Performance features
- Concealed, low-profile unit for ceilings, soffits, or above-closet installs
- Quiet operation with discreet supply and return
- Optimized for multi-zone compatibility
- R32 refrigerant for lower environmental impact
- Smart App connectivity for remote control
- Wall-mounted thermostat included for precise setpoint control
- Super Mode for rapid conditioning; Eco and Sleep modes for savings and comfort
- Multiple fan speeds, auto-swing*, and 24-hour timer
- Self-cleaning anti-mildew dry function
- Auto restart after power interruption
*Auto-swing availability depends on grille/duct configuration.
At-a-glance
Zoning
2 rooms
2 rooms
Outdoor BTU
18000
18000
SEER2
22
22
Outdoor SKU
BRV-M18-230VO
BRV-M18-230VO

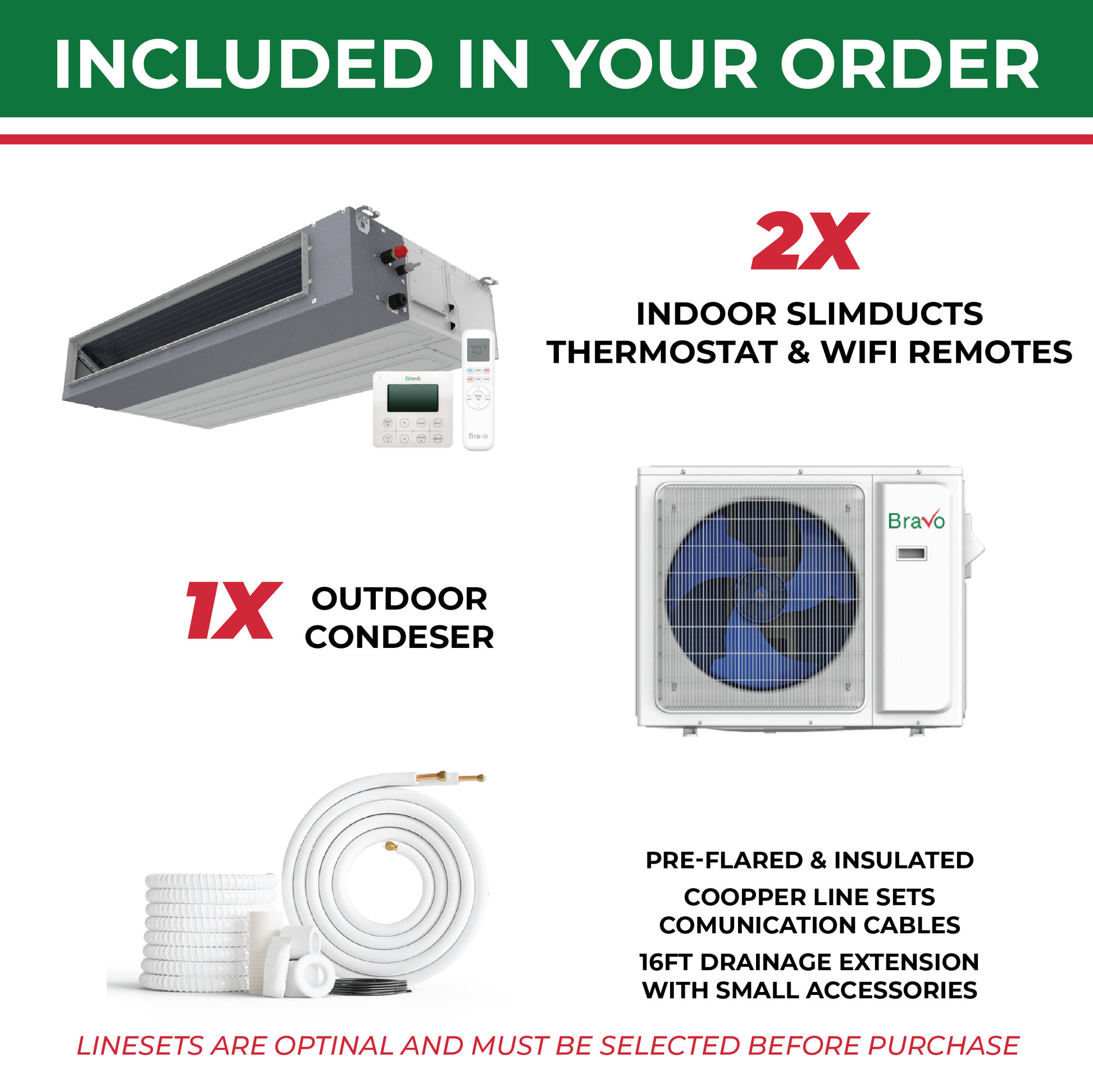

What’s included
- 12,000 BTU (x2) — Model: BRV-M12DT-230VI

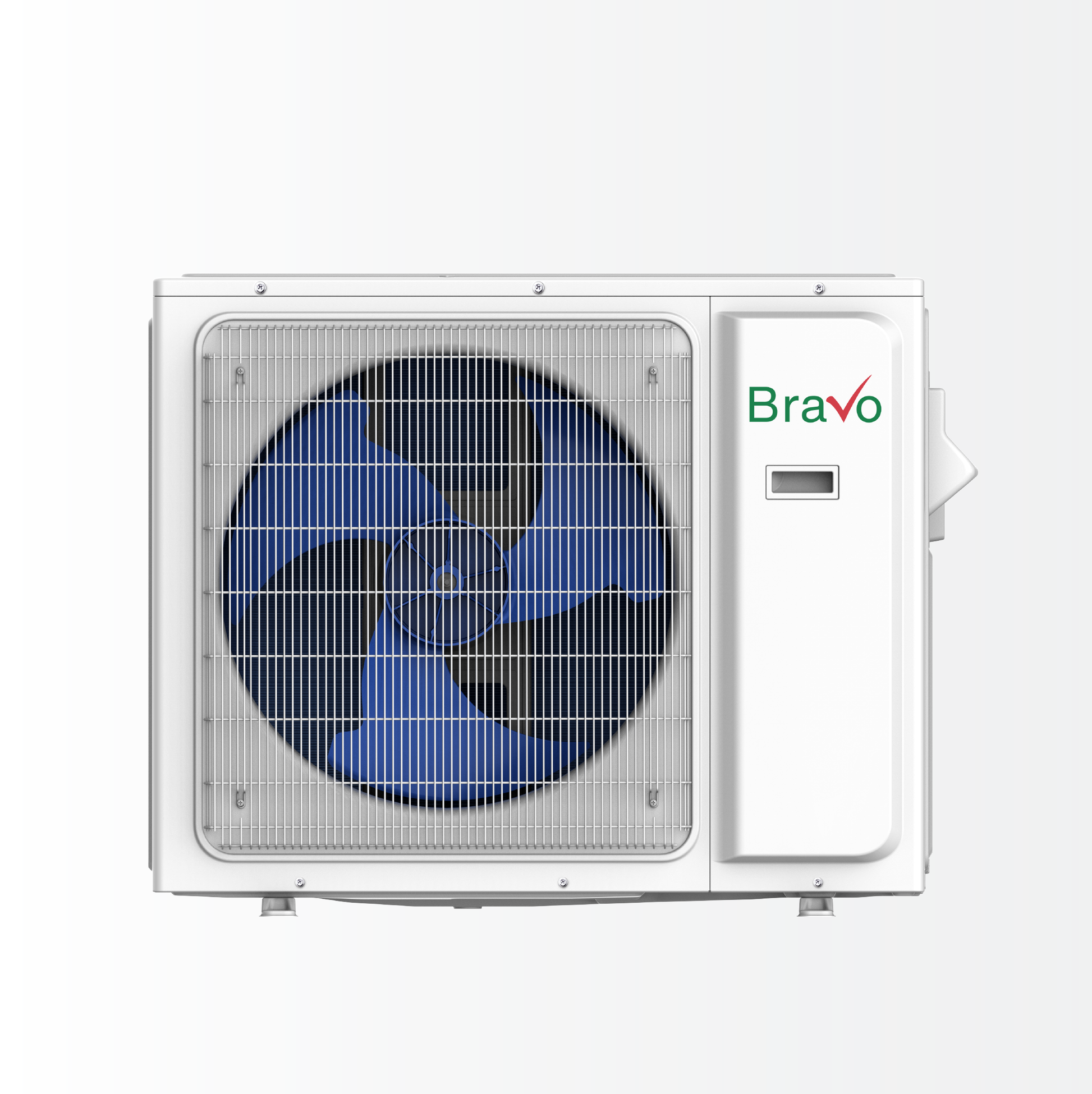

- Outdoor Condenser — BRV-M18-230VO
- Optional pre-flared 99% copper install kit (If you do not select a length above, and you select (NO INSTALLATION KIT) option, the order will not include any copper linesets, or communication wires which are required for installation.)
- Wall-mounted thermostat, installation manual, user manual
Licensed HVAC installation required for warranty. Register within 60 days if required.
Technical specifications — Indoor

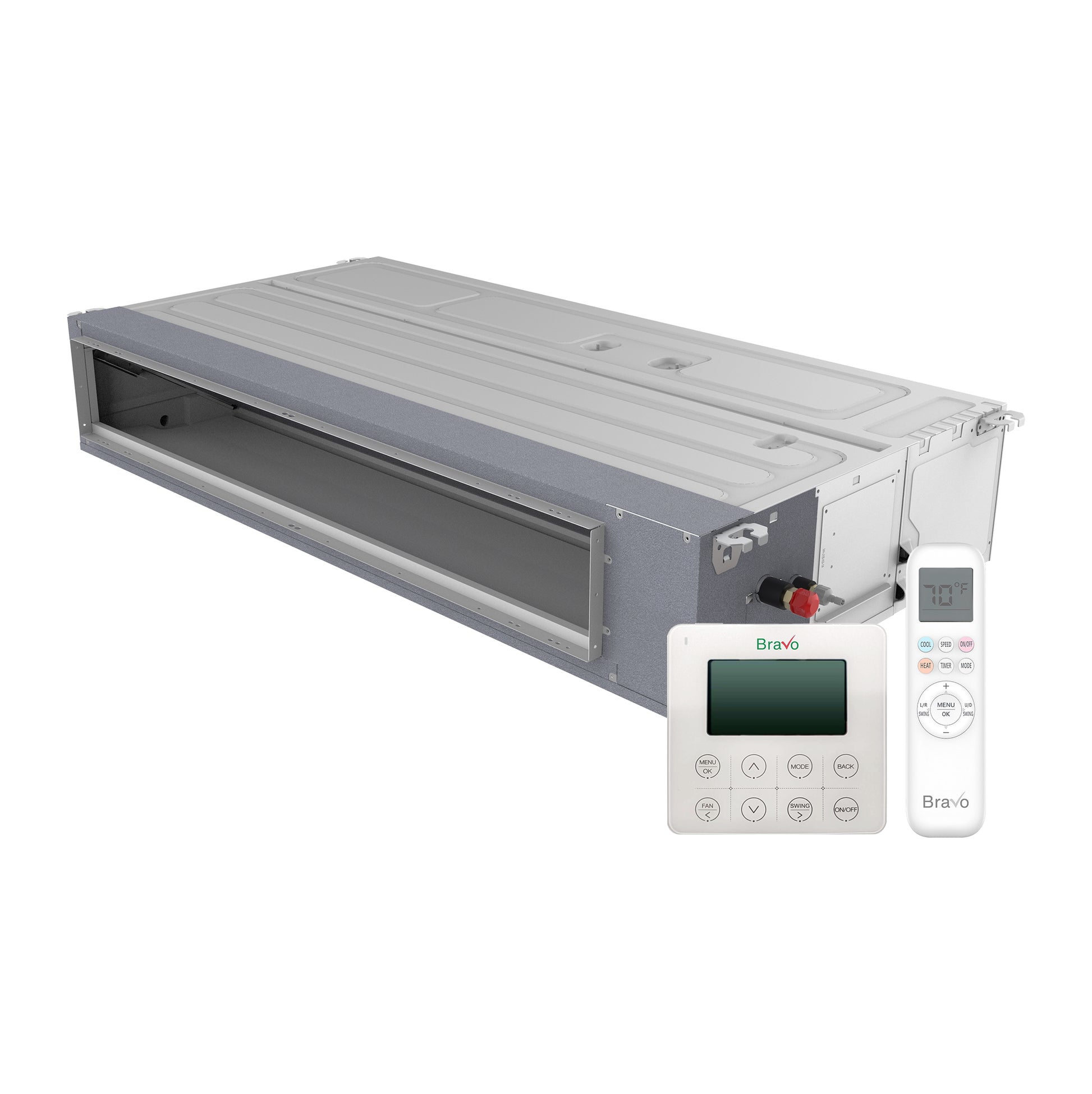

Indoor Unit Specifications — BRV-M12DT-230VI
| Voltage range (V) | 165-264 |
|---|---|
| Unit dimensions (WxDxH) | 27.56×17.72×7.8 |
| System type | Multi-zone unit |
| SEER2 up to | / |
| Refrigerant type | R32 |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/3/8" |
| Power source | 208-230V, 1Ph, 60Hz |
| Packing dimensions (WxDxH) | 34.25×21.3×10.24 |
| Operation room temperature Heating (F) | 50~89.6 |
| Operation room temperature Cooling (F) | 60.8~89.6 |
| Net/Gross weight (lb) | 27.6/33.1 |
| Minimum circuit ampacity (A) | / |
| Max. fuse (A) | 5 |
| Indoor noise level (Hi/Med/Lo) (dB) | 32/31/29 |
| Indoor Airflow (Turbo/Hi/Mi/Lo) (CFM) | 353 |
| Filter dimensions (WxDxH) (inch) | no filter |
| ESP | 0~0.1 |
| EER2 up to | / |
| Drainage water pipe diameter (inch) | 5/8" |
| Dehumidification (Pnt/H) | 2.11 |
| Controller | wired controller |
| BTU Rated | 12,000 |
Manuals
- https://api.acbravo.com/storage/3719/Owner-Manual-Slim-Duct---Bravo-Milano.pdf
- https://api.acbravo.com/storage/3720/Remote-Manual---Bravo-Milano.pdf
- https://api.acbravo.com/storage/3721/SMART-App-Manual---Bravo-Milano.pdf
- https://api.acbravo.com/storage/3722/Wall-Thermostat-Manual---Bravo-Milano.pdf
Documents
Technical specifications — Outdoor
Outdoor Unit Specifications — BRV-M18-230VO
| Voltage range (V) | 165-264 |
|---|---|
| Unit dimensions (WxDxH) | 34.65×13.90×21.93 |
| System type | Multi-zone unit |
| SEER2 up to | 22/19.5/20.75 |
| Refrigerant type | R32 |
| Refrigerant precharge (ft) | Average 24.6 |
| Refrigerant piping Liquid/Gas side (inch) | 2x1/4"- 2x3/8" |
| Power source | 208-230V, 1Ph, 60Hz |
| Packing dimensions (WxDxH) | 35.55×15.04×24.21 |
| Outdoor noise level (dB) | 54 |
| Outdoor air flow (CFM) | 1,529 |
| Net/Gross weight (lb) | 75.0/80.5 |
| Minimum circuit ampacity (A) | 15 |
| Max. fuse (A) | 20 |
| Max height difference between Indoor and Outdoor unit | 49 |
| HSPF2-5 | 8/7/7.5 |
| HSPF2-4 | 10/9.5/9.75 |
| Heating capacity (Min/Max) (Btu/h) | 18,000 (4,200-22,000) |
| EER2 up to | 12.3/11.8/12.05 |
| Dehumidification (Pnt/H) | / |
| COP | 3.8/3.9/3.85 |
| Cooling capacity (Min/Max) (BTU/h) | 17,700 (3,800-19,800) |
| BTU Rated | 18,000 |
| Ambient temperature - Heating (F) | -13~75 |
| Ambient temperature - Cooling (F) | -13~125 |
| Additional Refrigerant Charge 3/8 liquid line | / |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Manuals
Documents
Important
The installation kit is required for operation. It includes pre-flared copper lines, data communication wires, PVC drainage attachment, and wrapping bands.
Full description
Expand

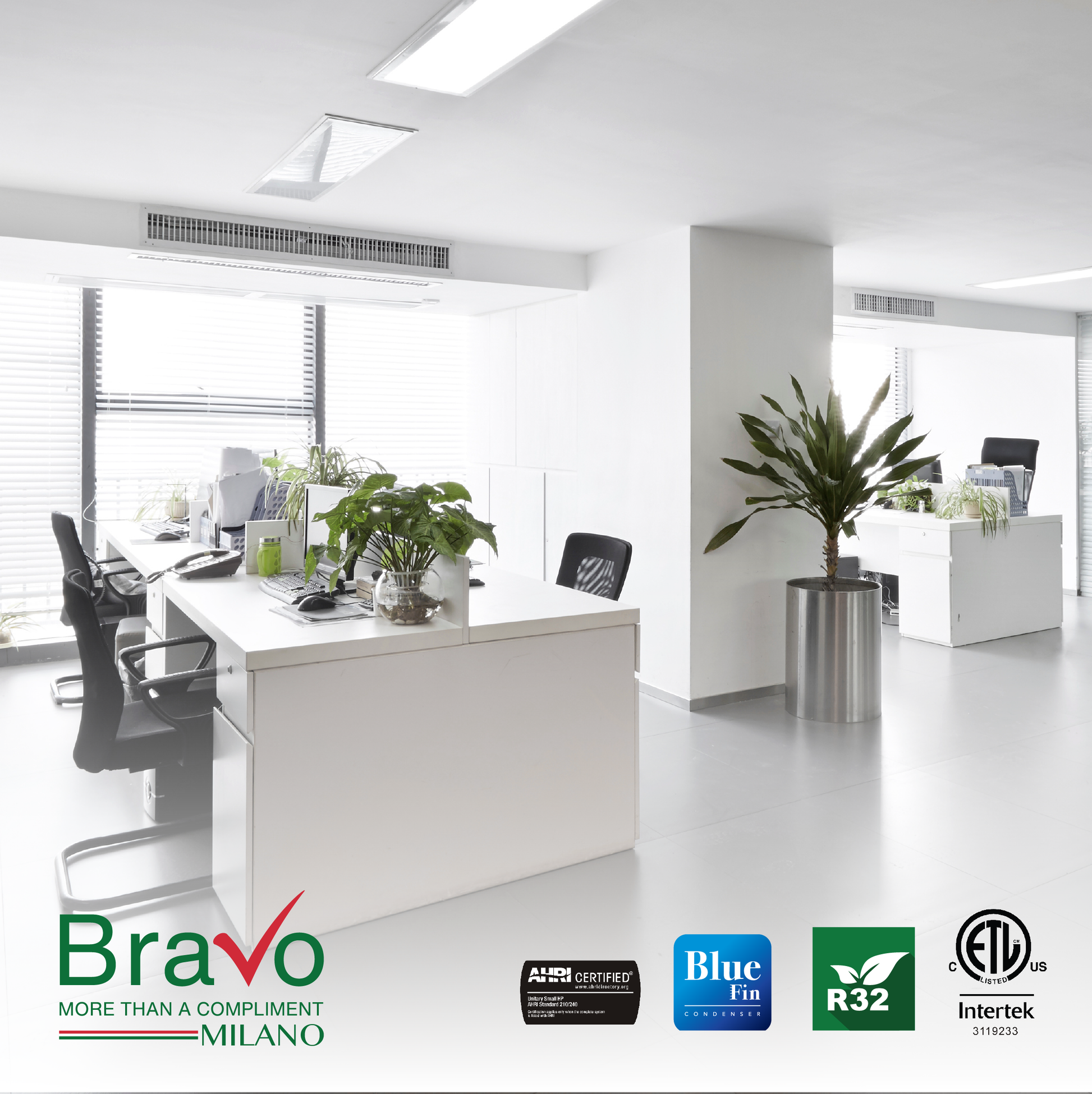

Designed to disappear into your ceiling or wall, the 2 Bravo Milano Slim Duct Unit delivers powerful performance in a compact, low-profile design. It is ideal for small bedrooms, home offices, hotel suites, and tucked-away retail spaces where visible equipment isn’t desired.
Built for multi-zone integration, the unit provides targeted heating and cooling using eco-conscious R32 refrigerant for efficient operation with a lower environmental impact. The slim, concealed form allows flexible installation in tight spaces such as drop ceilings, soffits, or above closets while maintaining quiet operation.
Equipped with a wall-mounted thermostat for precise in-room control and Smart App connectivity for remote adjustments, it’s easy to schedule, fine-tune, and monitor comfort. Choose multiple fan speeds, activate Super Mode for rapid temperature shifts, or switch to Eco Mode for savings. Sleep Mode, a 24-hour timer, and an anti-mildew dry function enhance comfort and air quality while operating quietly in the background.
With a minimalist footprint and tailored climate control, the Bravo Milano Slim Duct Unit fits spaces where room for equipment is limited but comfort is essential. Bravo: More Than a Compliment — It’s Comfort You’ll Never See Coming.
