HVAC Replacement Part | Blower Motors and Controllers | SKU B13400317S

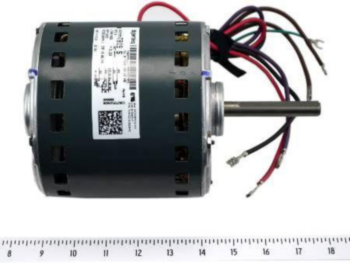

Blower Motor, 3/4 Hp, 380/460 V
Product Description
The Blower Motor, 3/4 Hp, 380/460 V is an HVAC replacement motor. It is used for blower motors and controllers service and replacement work. Key details include Blower Motor, Two-Speed PSC, Frame 48, 3/4 Hp, 380/460 V, 1 Ph, Class B, 2.4 A, Sleeve Bearing, Direct Drive, Counter Clockwise, OAO, 2 Speed, 1075 rpm, 0.5 in x 3 in Shaft, 5.61 in Wd x 5.61 in Ht x 9.38 in Dp.
Order by part number B13400317S and compare it with the label on your existing component before purchasing.
Technical Specifications - B13400317S
| Part Number | B13400317S |
|---|---|
| Full SKU | MHVC-RES-PMF-B13400317S |
| Part Type | Blower Motors and Controllers |
| Category | Motors and Fans |
| Catalog Detail | Blower Motor, Two-Speed PSC, Frame 48, 3/4 Hp, 380/460 V, 1 Ph, Class B, 2.4 A, Sleeve Bearing, Direct Drive, Counter Clockwise, OAO, 2 Speed, 1075 rpm, 0.5 in x 3 in Shaft, 5.61 in Wd x 5.61 in Ht x 9.38 in Dp |
| Country of Origin | Mexico |
| Unit Height | 5.61 in |
| Unit Width | 5.625 in |
| Unit Depth | 9.38 in |
| Power Phase | 1 Ph |
| Power Voltage | 380/460 V |
| Motor Speed Type | Two-Speed PSC |
| Unit Weight | 17 lb |
