PROPARTS | Blower Motors and Controllers | SKU PP3590

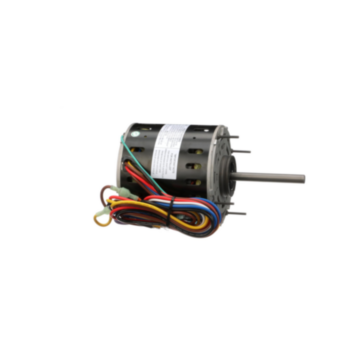

Blower Motor, 3/4 Hp, 208-230 V
Product Description
The PROPARTS Blower Motor, 3/4 Hp, 208-230 V is an HVAC replacement motor. It is used for blower motors and controllers service and replacement work. Key details include Blower Motor, Multi Speed PSC, Frame 48, 3/4 Hp, 208-230 V, 1 Ph, 50/60 Hz, Class B, 3.2 A, Sleeve Bearing, Direct Drive, Reversible, 3 Speed, 1075 rpm, 0.5 in x 4 in Shaft, 6.7 in Wd x 7.4 in Ht x 14.9 in Dp.
Order by part number PP3590 and compare it with the label on your existing component before purchasing.
Technical Specifications - PP3590
| Part Number | PP3590 |
|---|---|
| Full SKU | MHVC-RES-POTH-PP3590 |
| Brand | PROPARTS |
| Part Type | Blower Motors and Controllers |
| Category | Other |
| Catalog Detail | Blower Motor, Multi Speed PSC, Frame 48, 3/4 Hp, 208-230 V, 1 Ph, 50/60 Hz, Class B, 3.2 A, Sleeve Bearing, Direct Drive, Reversible, 3 Speed, 1075 rpm, 0.5 in x 4 in Shaft, 6.7 in Wd x 7.4 in Ht x 14.9 in Dp |
| Country of Origin | China |
| Unit Height | 7.4 in |
| Unit Width | 6.6875 in |
| Unit Depth | 14.9 in |
| Power Phase | 1 Ph |
| Power Voltage | 208-230 V |
| Motor Speed Type | Multi Speed PSC |
| Unit Weight | 19.55 lb |
