HVAC Replacement Part | Blower Motors and Controllers | SKU B1340022S

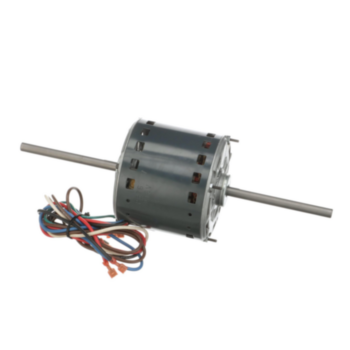

Blower Motor, 3/4 Hp, 115 V
Product Description
The Blower Motor, 3/4 Hp, 115 V is an HVAC replacement motor. It is used for blower motors and controllers service and replacement work. Key details include Blower Motor, Multi Speed PSC, Frame 48, 3/4 Hp, 115 V, 1 Ph, 50/60 Hz, Class B, 8.9 A, Sleeve Bearing, Direct Drive, Counter Clockwise, OAO, 3 Speed, 1075 rpm, 0.5 in x 5.25 in Shaft, 5.6 in Dia x 5.61 in Wd x 5.61 in Ht x 16.5 in Dp.
Order by part number B1340022S and compare it with the label on your existing component before purchasing.
Technical Specifications - B1340022S
| Part Number | B1340022S |
|---|---|
| Full SKU | MHVC-RES-PMF-B1340022S |
| Part Type | Blower Motors and Controllers |
| Category | Motors and Fans |
| Catalog Detail | Blower Motor, Multi Speed PSC, Frame 48, 3/4 Hp, 115 V, 1 Ph, 50/60 Hz, Class B, 8.9 A, Sleeve Bearing, Direct Drive, Counter Clockwise, OAO, 3 Speed, 1075 rpm, 0.5 in x 5.25 in Shaft, 5.6 in Dia x 5.61 in Wd x 5.61 in Ht x 16.5 in Dp |
| Country of Origin | Mexico |
| Unit Height | 5.61 in |
| Unit Width | 5.625 in |
| Unit Depth | 16.5 in |
| Power Phase | 1 Ph |
| Power Voltage | 115 V |
| Motor Speed Type | Multi Speed PSC |
| Unit Weight | 14 lb |
