PROPARTS | Blower Motors and Controllers | SKU PPV3466

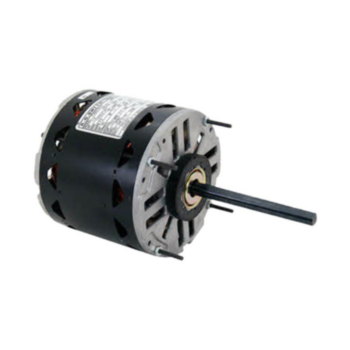

Blower Motor, 3/4-1/5 Hp, 115 V
Product Description
The PROPARTS Blower Motor, 3/4-1/5 Hp, 115 V is an HVAC replacement motor. It is used for blower motors and controllers service and replacement work. Key details include Blower Motor, Multi Speed PSC, Frame 48, 3/4-1/5 Hp, 115 V, 1 Ph, Class B, 9.1 A, Ball Bearing, Direct Drive, Reversible, 4 Speed, 1075 rpm, 0.5 in x 4.5 in Shaft, 6.7 in Wd x 7.5 in Ht x 14.8 in Dp.
Order by part number PPV3466 and compare it with the label on your existing component before purchasing.
Technical Specifications - PPV3466
| Part Number | PPV3466 |
|---|---|
| Full SKU | MHVC-RES-PMF-PPV3466 |
| Brand | PROPARTS |
| Part Type | Blower Motors and Controllers |
| Category | Motors and Fans |
| Catalog Detail | Blower Motor, Multi Speed PSC, Frame 48, 3/4-1/5 Hp, 115 V, 1 Ph, Class B, 9.1 A, Ball Bearing, Direct Drive, Reversible, 4 Speed, 1075 rpm, 0.5 in x 4.5 in Shaft, 6.7 in Wd x 7.5 in Ht x 14.8 in Dp |
| Country of Origin | China |
| Unit Height | 7.5 in |
| Unit Width | 6.6875 in |
| Unit Depth | 14.8 in |
| Power Phase | 1 Ph |
| Power Voltage | 115 V |
| Motor Speed Type | Multi Speed PSC |
| Unit Weight | 19.5 lb |
