• Blower Motor, 3/4-1/5 Hp, 1 Ph
1 1

Blower Motor, 3/4-1/5 Hp, 1 Ph

SKU: FD6001A

System highlights
AC Type
Parts
Looking For
Blower Motors & Controllers

Price

$308.99
Shipping calculated at checkout.

All brand names and model numbers are used for compatibility reference only. HVACSupplies.com is not affiliated with, endorsed by, or authorized by select manufacturers.

Compatibility is based on available technical data and is not guaranteed. HVAC equipment specifications may change. Customers are responsible for verifying compatibility with a licensed HVAC technician or the manufacturer prior to purchase, including confirmation with the specific model and serial number.

All part sales are final.
View full details
HVAC Replacement Part | Blower Motors and Controllers | SKU FD6001A

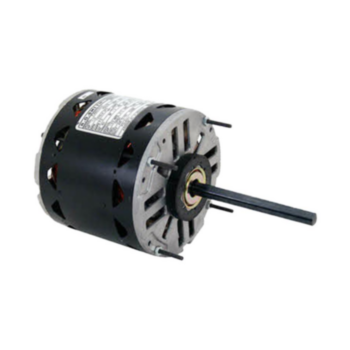

Blower Motor, 3/4-1/5 Hp, 1 Ph

Product Description

The Blower Motor, 3/4-1/5 Hp, 1 Ph is an HVAC replacement motor. It is used for blower motors and controllers service and replacement work. Key details include Blower Motor, Multi Speed PSC, Frame 48, 3/4-1/5 Hp, 208-230 V, 1 Ph, 60 Hz, 6P, Class B, 4 A, Ball Bearing, Direct Drive, OAO, Stud, Ring Mount, 4 Speed, 1075 rpm, 0.5 in x 5 in Shaft, 5.6 in Dia x 10.36 in Lg.

Document links are included below. Order by part number FD6001A and compare it with the label on your existing component before purchasing.

Technical Specifications - FD6001A

Part Number FD6001A
Full SKU MHVC-RES-PMF-FD6001A
Part Type Blower Motors and Controllers
Category Motors and Fans
Catalog Detail Blower Motor, Multi Speed PSC, Frame 48, 3/4-1/5 Hp, 208-230 V, 1 Ph, 60 Hz, 6P, Class B, 4 A, Ball Bearing, Direct Drive, OAO, Stud, Ring Mount, 4 Speed, 1075 rpm, 0.5 in x 5 in Shaft, 5.6 in Dia x 10.36 in Lg
Power Phase 1 Ph
Power Voltage 208-230 V
Motor Speed Type Multi Speed PSC

Documents & Downloads
