HVAC Replacement Part | Blower Motors and Controllers | SKU 6210E

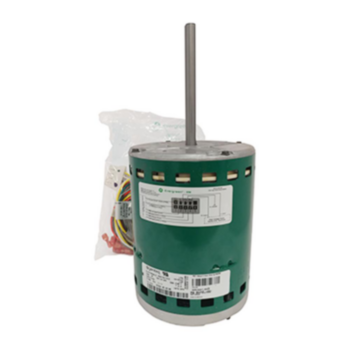

Blower Motor, 1 Hp, 208/230 V
Product Description
The Blower Motor, 1 Hp, 208/230 V is an HVAC replacement motor. It is used for blower motors and controllers service and replacement work. Key details include Blower Motor, Multi Speed ECM, Frame 48, 1 Hp, 208/230 V, 1 Ph, 60 Hz, 12P, Class B, 7.6 A, Direct Drive, OAO, Ring Mount, 5 Speed, 1075 rpm, 0.5 in x 4.92 in Shaft, 5.6 in Dia x 5.6 in Wd x 12.2 in Ht x 8.5 in Dp.
Order by part number 6210E and compare it with the label on your existing component before purchasing.
Technical Specifications - 6210E
| Part Number | 6210E |
|---|---|
| Full SKU | MHVC-RES-PMF-6210E |
| Part Type | Blower Motors and Controllers |
| Category | Motors and Fans |
| Catalog Detail | Blower Motor, Multi Speed ECM, Frame 48, 1 Hp, 208/230 V, 1 Ph, 60 Hz, 12P, Class B, 7.6 A, Direct Drive, OAO, Ring Mount, 5 Speed, 1075 rpm, 0.5 in x 4.92 in Shaft, 5.6 in Dia x 5.6 in Wd x 12.2 in Ht x 8.5 in Dp |
| Country of Origin | Mexico |
| Unit Height | 12.2 in |
| Unit Width | 5.59375 in |
| Unit Depth | 5.6 in |
| Power Phase | 1 Ph |
| Power Voltage | 208/230 V |
| Motor Speed Type | Multi Speed ECM |
