HVAC Replacement Part | Blower Motors and Controllers | SKU B13400803PAS

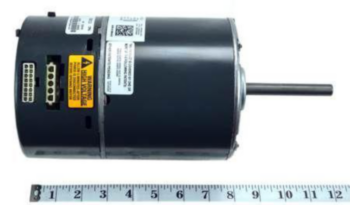

Blower Motor, 1 Hp, 120/240 V
Product Description
The Blower Motor, 1 Hp, 120/240 V is an HVAC replacement motor. It is used for blower motors and controllers service and replacement work. Key details include Blower Motor, Multi Speed ECM, Frame 48, 1 Hp, 120/240 V, 1 Ph, 60 Hz, Class B, 9.1 A, Ball Bearing, Direct Drive, Counter Clockwise, OAO, 1050 rpm, 0.5 in x 4.75 in Shaft, 5.63 in Wd x 13.13 in Lg x 5.63 in Ht x 12.04 in Dp.
Order by part number B13400803PAS and compare it with the label on your existing component before purchasing.
Technical Specifications - B13400803PAS
| Part Number | B13400803PAS |
|---|---|
| Full SKU | MHVC-RES-PMF-B13400803PAS |
| Part Type | Blower Motors and Controllers |
| Category | Motors and Fans |
| Catalog Detail | Blower Motor, Multi Speed ECM, Frame 48, 1 Hp, 120/240 V, 1 Ph, 60 Hz, Class B, 9.1 A, Ball Bearing, Direct Drive, Counter Clockwise, OAO, 1050 rpm, 0.5 in x 4.75 in Shaft, 5.63 in Wd x 13.13 in Lg x 5.63 in Ht x 12.04 in Dp |
| Country of Origin | Mexico |
| Unit Height | 5.63 in |
| Unit Width | 5.625 in |
| Unit Depth | 12.04 in |
| Power Phase | 1 Ph |
| Power Voltage | 120/240 V |
| Motor Speed Type | Multi Speed ECM |
| Unit Weight | 19 lb |
