HVAC Replacement Part | Blower Motors and Controllers | SKU B13400313S

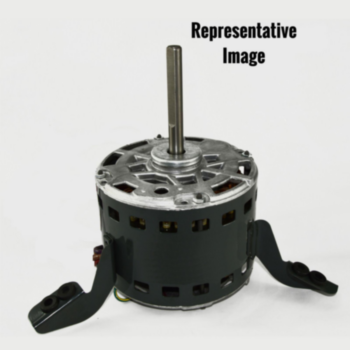

Blower Motor, 1/5 Hp, 208-230 V
Product Description
The Blower Motor, 1/5 Hp, 208-230 V is an HVAC replacement motor. It is used for blower motors and controllers service and replacement work. Key details include Blower Motor, Two-Speed PSC, Frame 48, 1/5 Hp, 208-230 V, 1 Ph, Class B, 0.72 A, Sleeve Bearing, Direct Drive, Counter Clockwise, ODP, T-Flex Mount, 2 Speed, 1075 rpm, 0.5 in x 6 in Shaft, 111.25 in Wd x 10.5 in Ht x 14.25 in Dp.
Order by part number B13400313S and compare it with the label on your existing component before purchasing.
Technical Specifications - B13400313S
| Part Number | B13400313S |
|---|---|
| Full SKU | MHVC-RES-PMF-B13400313S |
| Part Type | Blower Motors and Controllers |
| Category | Motors and Fans |
| Catalog Detail | Blower Motor, Two-Speed PSC, Frame 48, 1/5 Hp, 208-230 V, 1 Ph, Class B, 0.72 A, Sleeve Bearing, Direct Drive, Counter Clockwise, ODP, T-Flex Mount, 2 Speed, 1075 rpm, 0.5 in x 6 in Shaft, 111.25 in Wd x 10.5 in Ht x 14.25 in Dp |
| Country of Origin | Mexico |
| Unit Height | 8.13 in |
| Unit Width | 9.59375 in |
| Unit Depth | 9.59 in |
| Power Phase | 1 Ph |
| Power Voltage | 208-230 V |
| Motor Speed Type | Two-Speed PSC |
| Unit Weight | 10 lb |
| Compatibility | Goodman Equipment |
| Voltage | 208/230 |
