HVAC Replacement Part | Blower Motors and Controllers | SKU BT1340024S

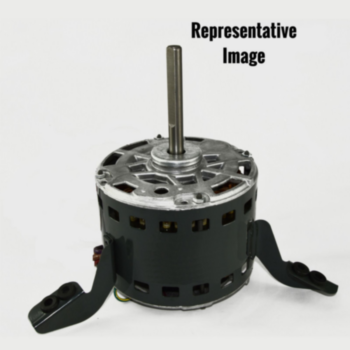

Blower Motor, 1/3 Hp, 115 V
Product Description
The Blower Motor, 1/3 Hp, 115 V is an HVAC replacement motor. It is used for blower motors and controllers service and replacement work. Key details include Blower Motor, Two-Speed PSC, Frame 48, 1/3 Hp, 115 V, 1 Ph, Class B, 6 A, Sleeve Bearing, Direct Drive, Counter Clockwise, OAO, 2 Speed, 1625 rpm, 0.5 in x 7 in Shaft, 5.6 in Dia x 5.63 in Wd x 5.63 in Ht x 19.5 in Dp.
Order by part number BT1340024S and compare it with the label on your existing component before purchasing.
Technical Specifications - BT1340024S
| Part Number | BT1340024S |
|---|---|
| Full SKU | MHVC-RES-PMF-BT1340024S |
| Part Type | Blower Motors and Controllers |
| Category | Motors and Fans |
| Catalog Detail | Blower Motor, Two-Speed PSC, Frame 48, 1/3 Hp, 115 V, 1 Ph, Class B, 6 A, Sleeve Bearing, Direct Drive, Counter Clockwise, OAO, 2 Speed, 1625 rpm, 0.5 in x 7 in Shaft, 5.6 in Dia x 5.63 in Wd x 5.63 in Ht x 19.5 in Dp |
| Country of Origin | Mexico |
| Unit Height | 5.63 in |
| Unit Width | 5.625 in |
| Unit Depth | 19.5 in |
| Power Phase | 1 Ph |
| Power Voltage | 115 V |
| Motor Speed Type | Two-Speed PSC |
| Unit Weight | 12 lb |
