HVAC Replacement Part | Blower Motors and Controllers | SKU 11091204SP

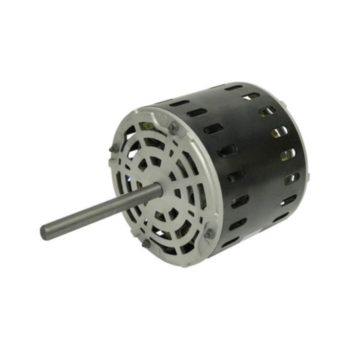

Blower Motor, 1/2 Hp, 208-230 V
Product Description
The Blower Motor, 1/2 Hp, 208-230 V is an HVAC replacement motor. It is used for blower motors and controllers service and replacement work. Key details include Blower Motor, Frame 48, 1/2 Hp, 208-230 V, 1 Ph, 8P, Class B, 3.95 A, Ball Bearing, Direct Drive, Counter Clockwise, 3 Speed, 996 rpm, 0.45 in x 2.5 in Shaft, 8.4 in Wd x 12.1 in Ht x 12.1 in Dp.
Order by part number 11091204SP and compare it with the label on your existing component before purchasing.
Technical Specifications - 11091204SP
| Part Number | 11091204SP |
|---|---|
| Full SKU | MHVC-RES-PMF-11091204SP |
| Part Type | Blower Motors and Controllers |
| Category | Motors and Fans |
| Catalog Detail | Blower Motor, Frame 48, 1/2 Hp, 208-230 V, 1 Ph, 8P, Class B, 3.95 A, Ball Bearing, Direct Drive, Counter Clockwise, 3 Speed, 996 rpm, 0.45 in x 2.5 in Shaft, 8.4 in Wd x 12.1 in Ht x 12.1 in Dp |
| Country of Origin | China |
| Unit Height | 12.1 in |
| Unit Width | 8.40625 in |
| Unit Depth | 12.1 in |
| Power Phase | 1 Ph |
| Power Voltage | 208-230 V |
| Unit Weight | 6.8 lb |
