HVAC Replacement Part | Blower Motors and Controllers | SKU 6505V

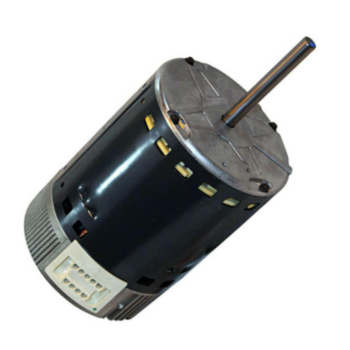

Blower Motor, 1/2 Hp, 120/240 V
Product Description
The Blower Motor, 1/2 Hp, 120/240 V is an HVAC replacement motor. It is used for blower motors and controllers service and replacement work. Key details include Blower Motor, Fixed Speed ECM, Frame 48, 1/2 Hp, 120/240 V, 1 Ph, 60 Hz, 12P, Class B, 4.3 A, Direct Drive, OAO, Ring Mount, 1 Speed, 1050 rpm, 0.5 in x 5 in Shaft, 5.6 in Dia x 5.6 in Wd x 11.21 in Ht x 5.6 in Dp.
Order by part number 6505V and compare it with the label on your existing component before purchasing.
Technical Specifications - 6505V
| Part Number | 6505V |
|---|---|
| Full SKU | MHVC-RES-PEC-6505V |
| Part Type | Blower Motors and Controllers |
| Category | Electrical and Controls |
| Catalog Detail | Blower Motor, Fixed Speed ECM, Frame 48, 1/2 Hp, 120/240 V, 1 Ph, 60 Hz, 12P, Class B, 4.3 A, Direct Drive, OAO, Ring Mount, 1 Speed, 1050 rpm, 0.5 in x 5 in Shaft, 5.6 in Dia x 5.6 in Wd x 11.21 in Ht x 5.6 in Dp |
| Unit Height | 11.21 in |
| Unit Width | 5.59375 in |
| Unit Depth | 5.6 in |
| Power Phase | 1 Ph |
| Power Voltage | 120/240 V |
| Motor Speed Type | Fixed Speed ECM |
