HVAC Replacement Part | Blower Motors and Controllers | SKU FDL6001A

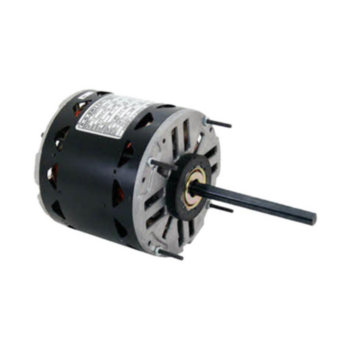

Blower Motor, 1/2-1/6 Hp, 115 V
Product Description
The Blower Motor, 1/2-1/6 Hp, 115 V is an HVAC replacement motor. It is used for blower motors and controllers service and replacement work. Key details include Blower Motor, Multi Speed PSC, Frame 48, 1/2-1/6 Hp, 115 V, 1 Ph, 60 Hz, 6P, Class B, 7 A, Ball Bearing, Direct Drive, OAO, Stud, Ring Mount, 4 Speed, 1075 rpm, 0.5 in x 5 in Shaft, 10.36 in Lg.
Document links are included below. Order by part number FDL6001A and compare it with the label on your existing component before purchasing.
Technical Specifications - FDL6001A
| Part Number | FDL6001A |
|---|---|
| Full SKU | MHVC-RES-PMF-FDL6001A |
| Part Type | Blower Motors and Controllers |
| Category | Motors and Fans |
| Catalog Detail | Blower Motor, Multi Speed PSC, Frame 48, 1/2-1/6 Hp, 115 V, 1 Ph, 60 Hz, 6P, Class B, 7 A, Ball Bearing, Direct Drive, OAO, Stud, Ring Mount, 4 Speed, 1075 rpm, 0.5 in x 5 in Shaft, 10.36 in Lg |
| Power Phase | 1 Ph |
| Power Voltage | 115 V |
| Motor Speed Type | Multi Speed PSC |
