Armbridge • Mini-Split Condenser Pad

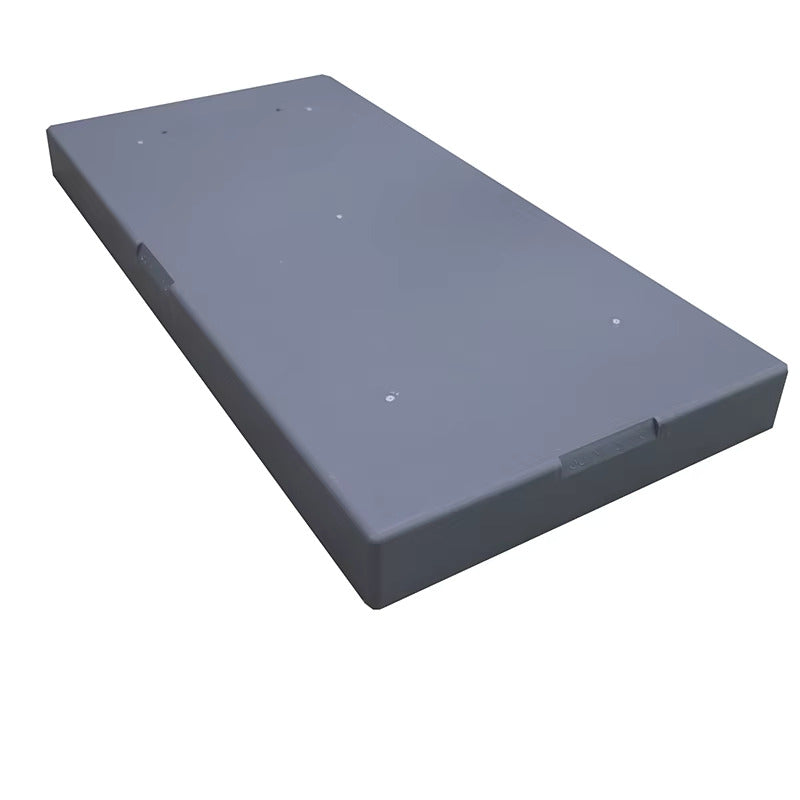

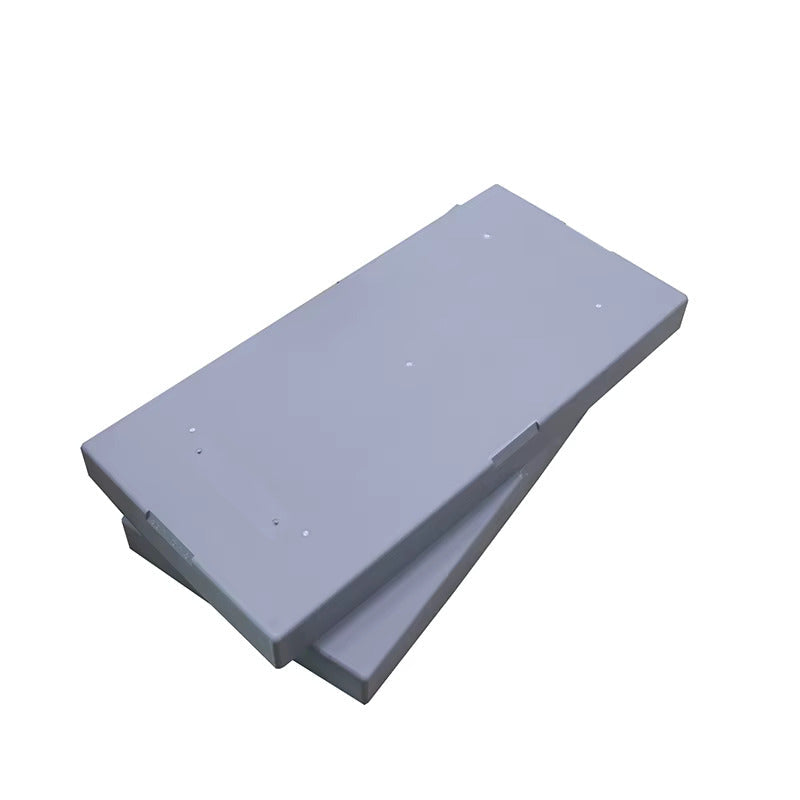

Armbridge AB-CP-U 36-Inch Plastic Condenser Pad
A strong, lightweight mounting base designed to support mini-split condensers and other outdoor HVAC equipment.
36 × 36 Inches
Pad dimensions
3 Inches
Pad height
Up to 2,500 lb.
Maximum load capacity
Polypropylene
Injection-molded construction
Stable outdoor equipment support
A durable mounting base for outdoor HVAC equipment
The Armbridge AB-CP-U is a 36 × 36-inch plastic equipment pad designed to provide a stable mounting surface for mini-split condensers, traditional condensing units, and other outdoor equipment.
It is made from injection-molded, modified polypropylene for a strong yet lightweight design. Reinforced ribs underneath the pad help improve stability and distribute the equipment load across the supporting surface.
36 × 36 × 3 inches
Up to 2,500 lb.
Textured surface
Reinforced underside
Weather resistant
Drillable
Durable Polypropylene Construction
Injection-molded polypropylene provides a durable equipment base without the weight of a traditional concrete pad. The material is designed for long-term outdoor use.

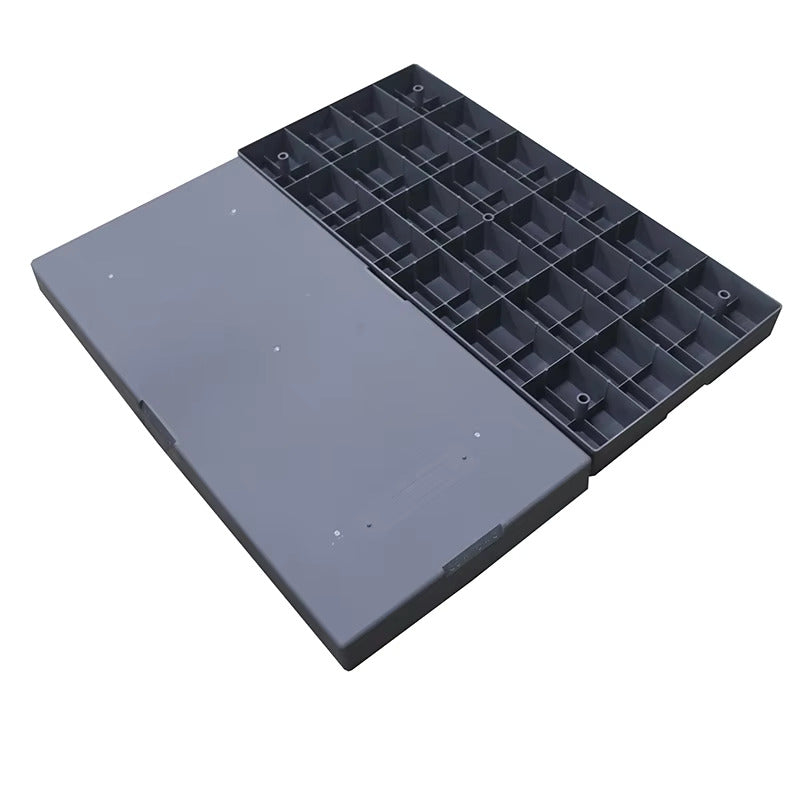

Reinforced Ribbed Base
The underside includes evenly distributed structural ribs that help support the equipment, improve rigidity, and keep the pad stable on properly prepared surfaces.

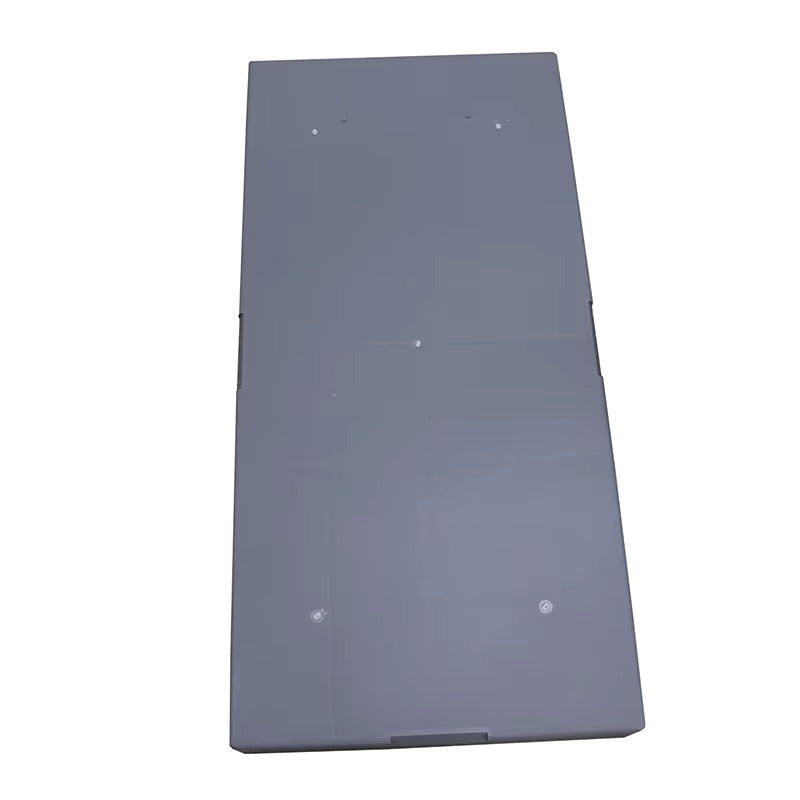

Textured Anti-Slip Surface
The textured top surface increases friction between the equipment and the pad, helping reduce unwanted movement after installation.
Strong Equipment Support
The pad is rated to support equipment weighing up to 2,500 pounds when installed on a suitable, level surface.
Made for Outdoor Conditions
Designed to withstand exposure to ultraviolet light, rain, and common outdoor conditions without the cracking and deterioration associated with some traditional pad materials.
Drillable for Equipment Mounting
The pad can be drilled when the outdoor unit needs to be mechanically secured to the mounting base.
Product Specifications
| Specification | Details |
|---|---|
| Brand | Armbridge |
| Model / SKU | AB-CP-U |
| Product type | Outdoor condenser and equipment mounting pad |
| Material | Modified polypropylene |
| Manufacturing method | Injection molded |
| Dimensions | 36 × 36 × 3 inches |
| Product weight | 7.8 kg |
| Maximum load capacity | Up to 2,500 lb. |
| Surface | Textured anti-slip finish |
| Base design | Reinforced structural ribbing |
| Installation | Drillable for securing compatible equipment |
| Recommended applications | Mini-split condensers, central air-conditioning condensers, heat pumps, and other compatible outdoor equipment |
Install the pad on properly prepared, level soil or a firm, flat surface.
Confirm that the pad dimensions and load rating are suitable for the
equipment before installation. Follow the equipment manufacturer's
mounting requirements and all applicable local codes.
