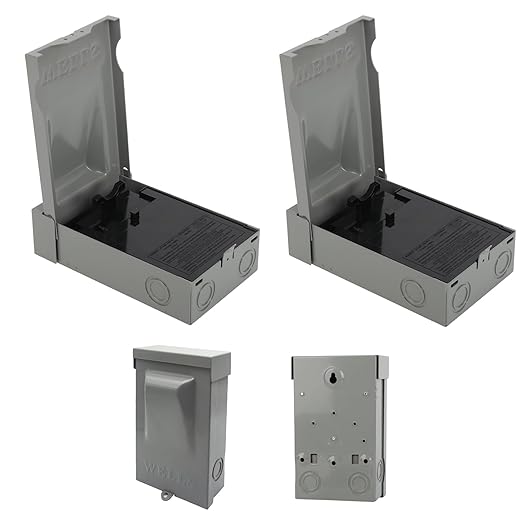

Armbridge — HVAC Disconnect Box (Metallic) 30 Amp Fusible
Reliable electrical disconnect for HVAC systems—built for safe service isolation, durable outdoor performance, and straightforward installation by a qualified electrician.
30A 240V 1-Phase 2-Pole 3-Wire Fusible Weather-resistant metallic box Residential + commercial
30 Amp Fusible Disconnect Box (Metallic)
SKU: AB-DIS30-F
Overview
The Armbridge Metallic 30 Amp Fusible Disconnect Box is designed to enhance safety and serviceability for HVAC equipment by providing a dedicated local disconnect. Ideal for residential and light commercial air conditioning applications where a 30A disconnect is required.
Key Features
- 30 Amp fusible disconnect: Designed for 30A HVAC disconnect applications; fusible configuration helps support proper circuit protection when correctly sized for the equipment.
- Durable metallic construction: Robust metal enclosure built for long-lasting performance and resistance to harsh outdoor conditions.
- Enhanced service safety: Supports safe power isolation during maintenance and servicing to help reduce risk of electrical shock or equipment damage.
- Weather-ready design: Metallic enclosure built for sustained outdoor performance on HVAC installations.
- Easy installation: Engineered with a user-friendly design to streamline installation by a qualified electrician, minimizing time and labor.
Electrical Ratings
| Main ampere rating | Voltage | Phase | Poles | Wires |
|---|---|---|---|---|
| 30 AMP | 240V | 1 Phase | 2 Pole | 3 Wire |
Applications
- Residential HVAC: Local disconnect for outdoor AC/heat pump units on homes and apartments.
- Light commercial: Suitable for small commercial HVAC installations requiring a 30A disconnect.
- Routine maintenance & repairs: Enables technicians to disconnect power at the unit for safer service access.
- Outdoor installs: Metallic enclosure helps protect electrical components in exposed environments.
Why Choose This Disconnect?
A properly sized HVAC disconnect is a critical safety component for servicing and maintenance. The Armbridge 30A fusible disconnect combines a durable metallic enclosure with a service-friendly layout to support safe isolation of power at the equipment when installed and used correctly.
Note: Verify disconnect sizing against the unit’s nameplate (MCA/MOP) and follow local electrical codes. Installation should be performed by a qualified electrician.
FAQs
What is this used for?
It’s used as an HVAC/AC service disconnect—allowing power to be disconnected locally at the equipment for maintenance and service.
Is this for residential or commercial use?
It’s suitable for residential and light commercial air conditioning disconnect applications.
Who should install it?
A qualified electrician should install it in accordance with local codes and the HVAC equipment nameplate requirements.
