Product Overview

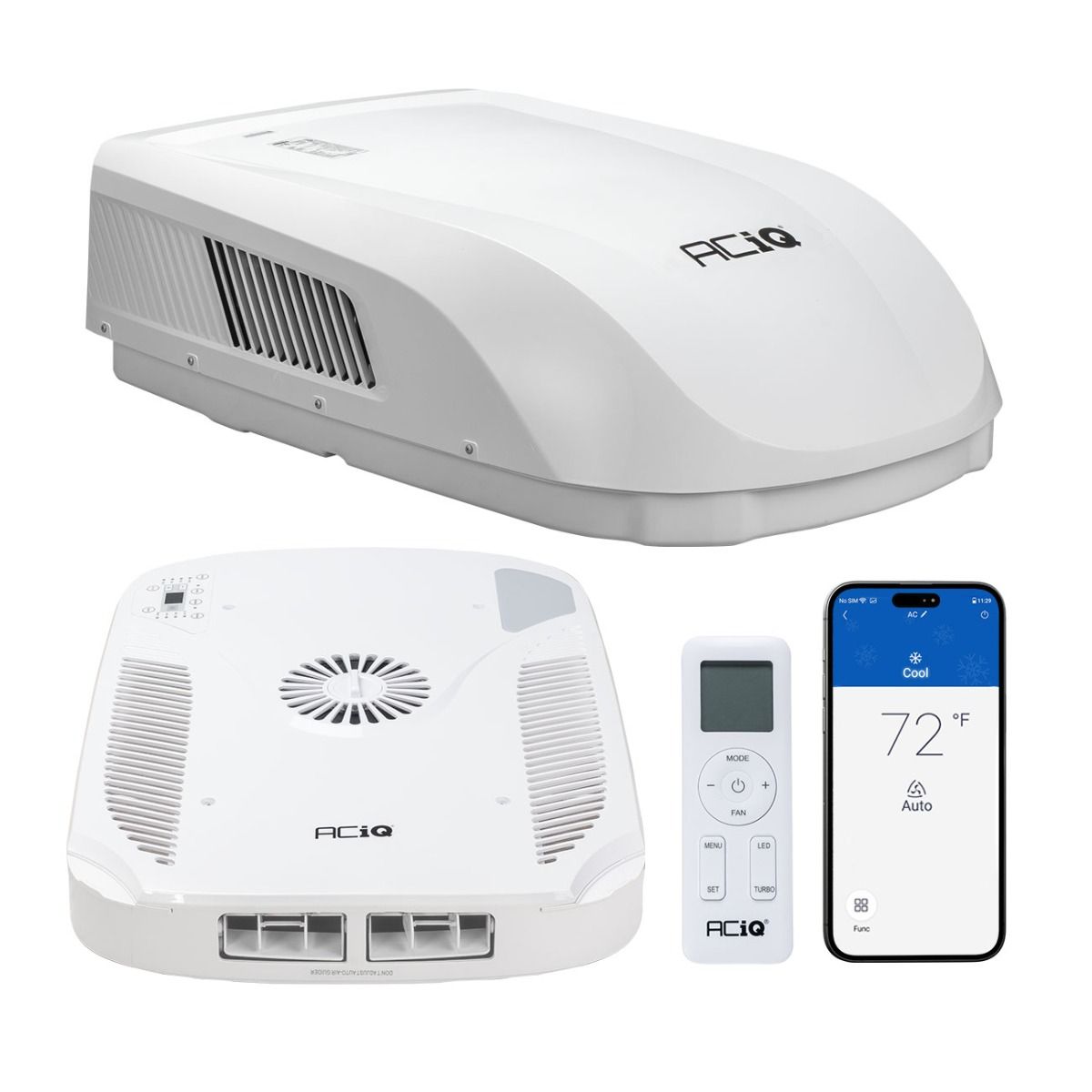

ACIQ RV Air Conditioner 15,000 BTU Rooftop with Heat Pump, Non-Ducted, 115V – Camper RV Rooftop AC – White
The ACIQ high-efficiency, non-ducted rooftop heat pump is built to deliver powerful heating and cooling performance in one compact package. Designed for reliable year-round comfort, it offers quiet operation, energy-saving technology, and durable construction to withstand the elements. Ideal for spaces where ductwork isn’t practical, this rooftop unit provides efficient climate control with easy installation and low maintenance, making it a smart solution for both residential and light commercial applications.
QUICK FACTS
- All-Weather Comfort: 15,000 BTU cooling and 12,000 BTU heating for RVs 16–24 ft, covering up to 600 sq. ft.
- Smart Control: Built-in WiFi for remote operation.
- Wide Climate Range: Operates in outdoor temps from 23°F to 115°F.
- Easy Install: Fits standard 14.25” x 14.25” non-ducted rooftop openings.
- Included Kit: Comes with sealing materials and bolts for quick setup.

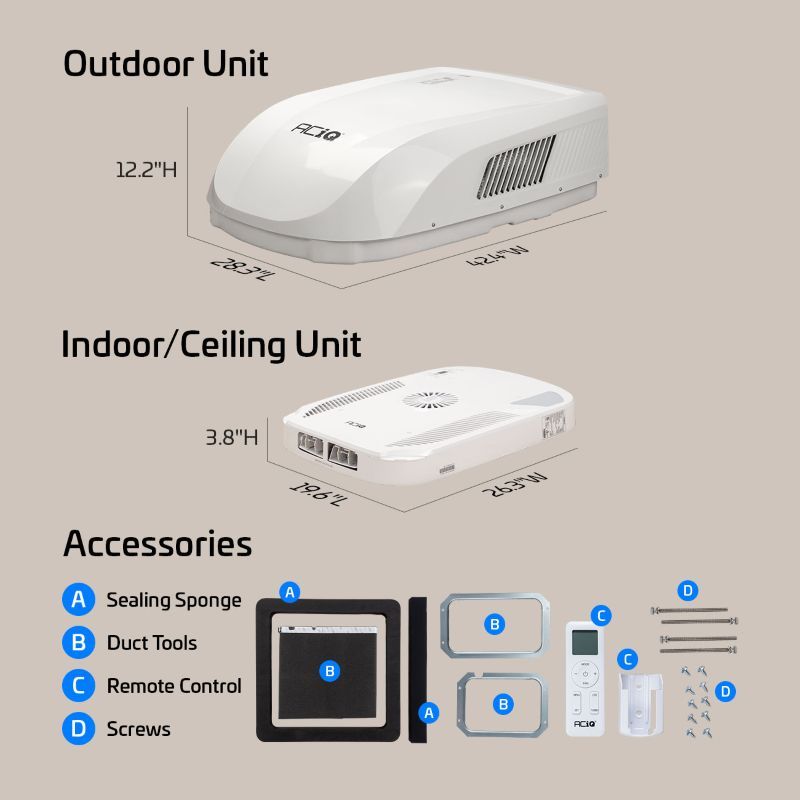

WHAT'S INCLUDED
- Roof Top Unit

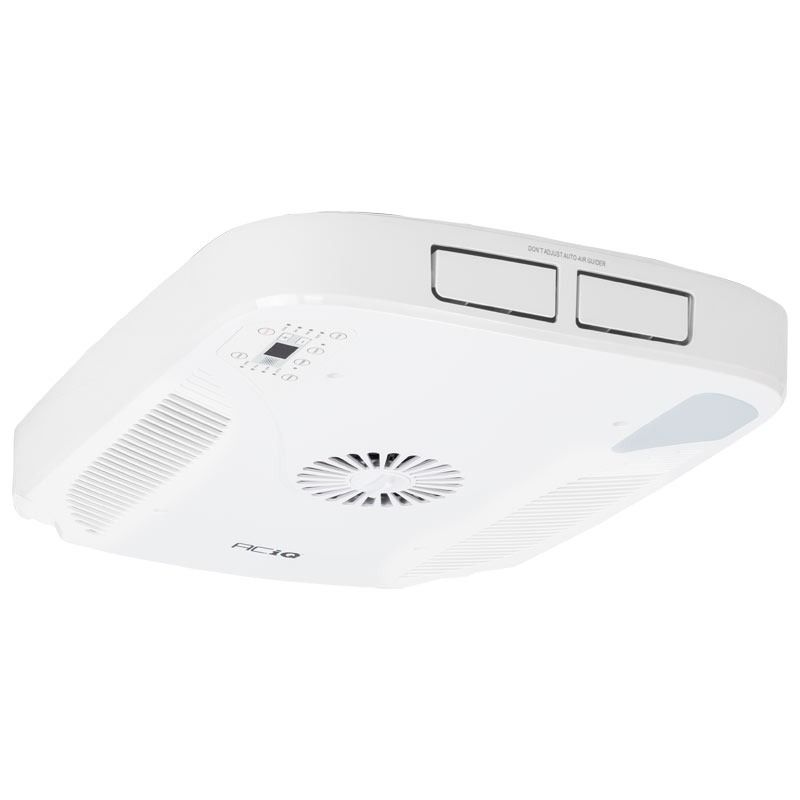

- Ceiling Unit
- Duct Tools
- Remote Control
- Sealing Sponge
Warranty
4-Year Unit & Parts Warranty with Online Registration / 2-Year Unit & Parts Warranty Without Registration.
Technical Specifications — ACIQ-15RVZ-BL
| sku | ACIQ-15RVZ-BL |
|---|---|
| weight | 116.900000 |
| manufacturer | ACiQ |
| product features | WiFi |
| cooling btu | 15000 BTU |
| heating btu | 12000 BTU |

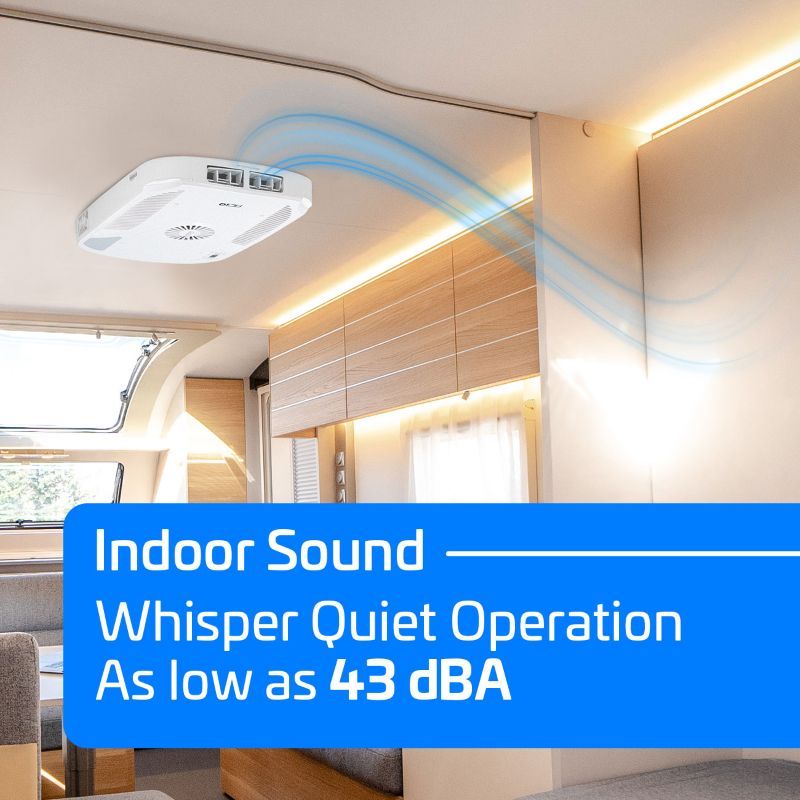

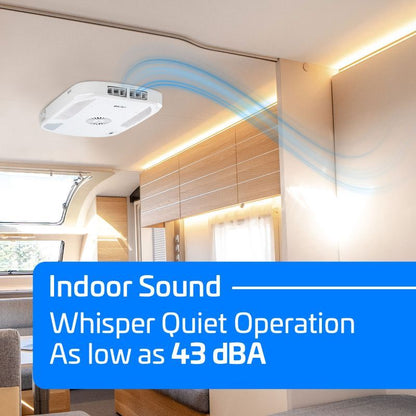

| decibel level (dba) | 43 dBA |
| refrigerant | R32 |
| compressor type | Rotary |
| max breaker size | 20 A |
| min. breaker size | 12 A |
| btu/tonnage | 15,000 BTU/1.25 Ton |
| min/max outdoor temp for heating | 23F-75F |
| min/max outdoor temp for cooling | 64F-115F |
| zone compatibility | Single Zone |
| height | 14.76" |
| width | 42.40" |
| depth | 12.16" |
| warranty | 4-Year Warranty with Online Registration / 2-Year Warranty Without Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — ACIQ-15RVW
| sku | ACIQ-15RVW |
|---|---|
| weight | 17.600000 |
| manufacturer | ACiQ |
| cooling btu | 15000 BTU |
| heating btu | 12000 BTU |
| decibel level (dba) | 43 dBA |
| refrigerant | R32 |
| compressor type | Rotary |
| max breaker size | 20 A |
| min. breaker size | 12 A |
| btu/tonnage | 15,000 BTU/1.25 Ton |
| min/max outdoor temp for heating | 23F-75F |
| min/max outdoor temp for cooling | 64F-115F |
| zone compatibility | Single Zone |
| height | 19.57" |
| width | 26.26" |
| depth | 3.78" |
| warranty | 4-Year Warranty with Online Registration / 2-Year Warranty Without Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
