Product Overview

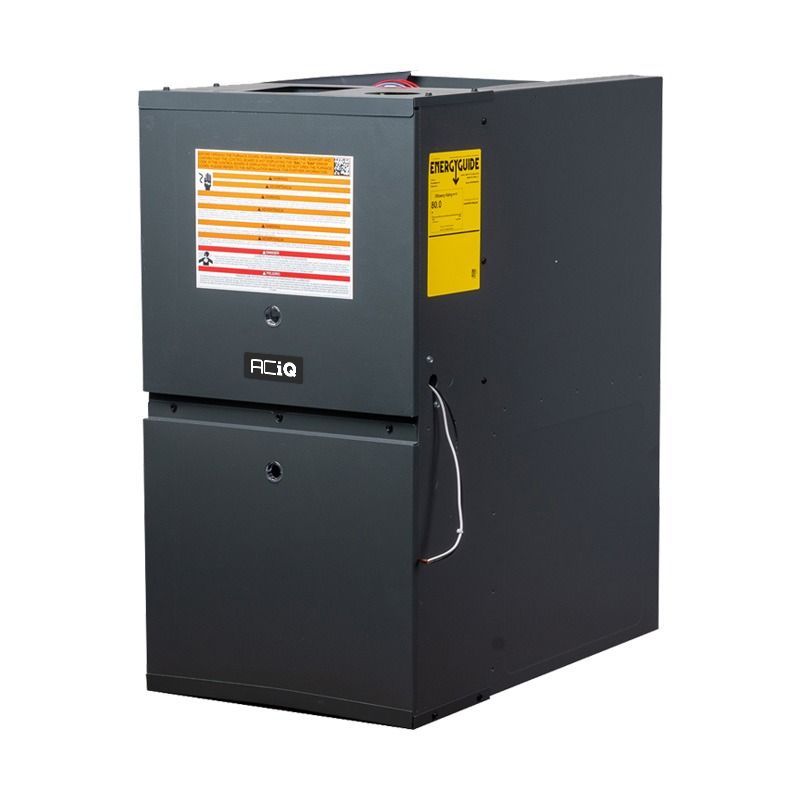

80,000 BTU 80% AFUE Two Stage Low NOx Gas Furnace - 21" Width - Upflow/Horizontal
OVERVIEW
The AQ-GR9T800804CX ACiQ low NOx gas furnace features high-quality construction and efficient operation at a great value. The AQ-GR9T800804CX two-stage, 9-speed furnace utilizes ACiQ's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the ACiQ AQ-GR9T800804CX.
QUICK FACTS
- This furnace is ideal to heat a medium-sized house (depending on climate)
- 80,000 BTU 80% efficient natural gas furnace
- Requires metal flue venting
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
80,000 BTU
The AQ-GR9T800804CX ACiQ gas furnace is 80,000 BTU's. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 64,000 BTU's (80,000 X 80% AFUE) per hour. In ideal climate conditions, this 80,000 BTU furnace is usually used to heat a medium-sized house.
80% Efficiency Rating
The AQ-GR9T800804CX ACiQ gas furnace is 80% efficient, and the standard furnace efficiency on the market today. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while anything higher than 90% efficient must be vented using plastic/PVC venting.
In California, many counties have a lower NOx emission requirement than the rest of the United States. The AQ-GR9T800804CX ACiQ gas furnace is California Low NOx compliant. With a built-in low emission filter, this ACiQ gas furnace produces less nitrogen oxides to be released into the atmosphere, lowering the overall amount of toxic greenhouse gases output of the average California home.
Please note that this furnace cannot be installed in the following counties in California: Fresno, Joaquin, Kern, Kings, Los Angeles, Madera, Merced, Orange, Riverside, San Bernardino, San Stanislaus, and Tulare. In these counties you are required to purchase an Ultra-Low NOx furnace. If you have any questions, please contact us.Two Stage Furnace
The AQ-GR9T800804CX ACiQ gas furnace is a two stage furnace that has two heating outputs on the burner: full output on colder winter days and a lower output for milder days that the furnace doesn't have to run quite as much. Two stage furnaces allow for a more even heat distribution, as the furnace will only kick on the higher stage if the indoor temperature is more than a few degrees away from the desired temperature. Since the lower stage will be used more often, the AQ-GR9T800804CX will run quieter than a single stage system. While the majority of the benefits of a two stage feature on a furnace are comfort based, the efficiency of the furnace is slightly higher due to it burning less fuel at its lower stage.
Natural Gas or LP Furnace
From the factory, the AQ-GR9T800804CX runs on natural gas. However all ACiQ gas furnaces can be converted to propane using the furnace's corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.
9-Speed ECM Blower Motor
Instead of the last generation PSC blower motor, the AQ-GR9T800804CX utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.
Warranty
With installation that follows your state and local codes and with online registration, all ACiQ furnaces come with a 10-year unit replacement, 10-year parts, and lifetime heat exchanger warranty through the manufacturer.
Durable Hot Surface Igniter
The hot surface igniter on modern ACiQ furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.
Self-Diagnostic Control Board
The ACiQ brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.
Heavy Gauge Steel Cabinet
The heavy-gauge steel cabinet on new ACiQ furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.
Ease of Installation
The value of modern ACiQ furnaces doesn't end at efficiency. Today's ACiQ furnaces feature many different connection options to reduce installation. The AQ-GR9T800804CX model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.
ACIQ 3 Ton 17.4 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series - R454B
OVERVIEW
Inverter - The ACIQ-36-HPD 3 ton Extreme series central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.
Learning Condenser - Equipped with advanced sensors, this condenser monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall performance. During the initial startup, it enters a learning mode that optimizes future operations for maximum efficiency by collecting and storing data.
Adaptive Sizing - With its self-adjusting inverter design, the ACIQ-36-HPD can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.
Extreme Heat Technology - "Extreme Heat" means extended temperature range heating all the way down to -22°F. Traditional heat pumps cannot produce significant heat below about 30°F outside temperature. Below that threshold, they rely on expensive backup electric heat. The ACIQ-36-HPD uses the inverter to vary the refrigerant flow, allowing for maximum heat extraction during extreme cold temperatures. The backup electric heat supplements the heat pump, and only takes over below -22°F. The heat pump gives 100% at 0°F, and still gives 80% at -22°F, saving you up to 75% on cold weather heating bills.
QUICK FACTS
- Variable BTU output based on demand: 12,000-36,000 BTU for cooling, 12,000-37,000 for heating
- R454B refrigerant
- Inverter heat pump system for ducted applications
- Efficient cooling from -22°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Durable gold fin condenser coil coating for longevity
- Quiet operation, even under high workloads
3 Ton, 17.4 SEER2
Boasting an efficiency rating of 17.4 SEER2, the ACIQ-36-HPD provides versatile comfort across a range of climates by providing reliable comfort with a variable output that eliminates short cycling for lasting efficiency. Use our sizing calculator (found ) to determine the demand for your home.
Extreme Heat Base Pan Heater Technology
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
Heats down to −22°F and cools up to 115°F
Enjoy your ACiQ heat pump system year round with unprecidented heating and cooling performance. Not only that, it is extremely efficient saving you money year round!
Self Cleaning Condenser
ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.
ACIQ 3 Ton 21" Width Multi-Positional Evaporator Cased Coil - R454B
OVERVIEW
ACIQ takes pride in its ability to provide a high-quality system, including all system components.The ACIQ-36-ACL-B multi-positional A-coil stands out as a superior choice for various applications, ensuring optimal unit efficiency through its factory-integrated TXV kit, maximizing energy optimization. With its outstanding performance features and versatile orientation options, this coil becomes the ultimate solution for achieving unmatched comfort in your home.
QUICK FACTS
- 3 ton multi-positional evaporator coil
- Works in almost any upflow, downflow, or horizontal system setup
- Compatible with both AC-only and heat pump condensers
- Factory-installed TXV kit for enhanced energy optimization
- Sturdy and compact design
3 Tons
The ACIQ-36-ACL-B is rated for up to 3 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.
Technical Specifications — ACIQ-36-HPD
| sku | ACIQ-36-HPD |
|---|---|
| refrigerant charge | 126.99 oz. |
| weight | 235.230000 |
| manufacturer | ACiQ |
| replaces | ACiQ-36-HPB, ACiQ-36-HPC |
| product features | High Efficiency / Inverter, Low Ambient Heating, Two Stage Condenser, Variable Speed Condenser |
| hspf2 | 10.2 |
| cooling btu | 36,000 BTU |
| heating btu | 37,000 BTU |
| maximum cfm | 1189 |
| decibel level (dba) | 62.5 |
| electric heat | Heat Pump |
| refrigerant | R454B |
| seer2 | 17.4 |
| condenser stages | Variable Speed |
| compressor type | Rotary |
| liquid valve size | 3/8" |
| suction valve size | 3/4" |
| electrical | 208/230V, 1 Phase, 60 Hz |
| electric phase filter | Single Phase |
| max breaker size | 35 Amps |
| min. breaker size | 32 Amps |
| tonnage | 3 Ton |
| min/max outdoor temp for heating | -22°F - 75°F |
| min/max outdoor temp for cooling | -22°F - 122°F |
| zone compatibility | Single Zone |
| ambient temperature range | -22°F - 122°F |
| height | 38.39" |
| width | 38.58" |
| depth | 16.34" |
| warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — ACIQ-36-ACL-B
| sku | ACiQ-36-ACL-B |
|---|---|
| weight (in lbs) | 74.000000 |
| brand/manufacturer | ACiQ |
| configuration | Multi-Positional |
| refrigerant | R454B |
| liquid line | 3/8" |
| suction line | 3/4" |
| tonnage | 3 Ton |
| style | A-Coil |
| certification | UL Listed |
| height | 24" |
| width | 21" |
| depth | 21" |
| warranty | 10 Years Parts Warranty with Online Registration |
| resources | ACiQ ACL-B Coil Installation ManualACiQ ACL-B Coil Service ManualSubmittal with ACIQ-30-EHPDSubmittal with ACIQ-30-HPDSubmittal with ACIQ-36-EHPDSubmittal with ACIQ-36-HPDExtended Performance Table with ACiQ-36-HPDAHRI Certificate with ACiQ-30-EHPDAHRI Certificate with ACiQ-30-HPDAHRI Certificate with ACiQ-36-EHPDAHRI Certificate with ACiQ-36-HPDWarrantyYou will need Adobe® Acrobat® Reader to view PDF documents. |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — AQ-GR9T800804CX
| sku | AQ-GR9T800804CX |
|---|---|
| weight (in lbs) | 129.000000 |
| ahri certificate number | 215358028 |
| airflow direction | Upflow/Horizontal |
| exhaust flue requirement | Metal |
| brand/manufacturer | Private Brand |
| product features | Low NOx, New Refrigerant Compliant |
| furnace efficiency / afue | 80% |
| heating btu | 80,000 |
| blower motor | 9 Speed - ECM |
| maximum cfm | 1600 |
| configuration | Upflow/Horizontal |
| electrical | 115v 1 Phase 60 Hz |
| max breaker size | 20 Amps |
| min. breaker size | 11.3 Amps |
| low nox | Low NOx |
| burner stages | Two |
| fuel type | Propane, Natural Gas |
| height | 33 3/8" |
| width | 21" |
| depth | 28" |
| warranty | Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration |
| safety information | This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Manuals
Submittals
Documents
- Quick Start Guide
- 3 Ton HPD / AHD AHRI Certificate
- 3 Ton HPD / PAH AHRI Certificate
- 3 Ton HPD / AHD Submittal
- 3 Ton HPD / PAH Submittal
- 3 Ton HPD / AHD Extended Performance Tables
- 3 Ton HPD / PAH Extended Performance Tables
- EHPD / HPD / AHD / PAH Nominal Capacity Performance Chart
- ACiQ 24 Volt Wiring Notice
- Submittal with ACIQ-30-EHPD
- Submittal with ACIQ-30-HPD
- Submittal with ACIQ-36-EHPD
- Submittal with ACIQ-36-HPD
- Extended Performance Table with ACiQ-36-HPD
- AHRI Certificate with ACiQ-30-EHPD
- AHRI Certificate with ACiQ-30-HPD
- AHRI Certificate with ACiQ-36-EHPD
- AHRI Certificate with ACiQ-36-HPD
